Fujitsu PRIMERGY TX1330 M4

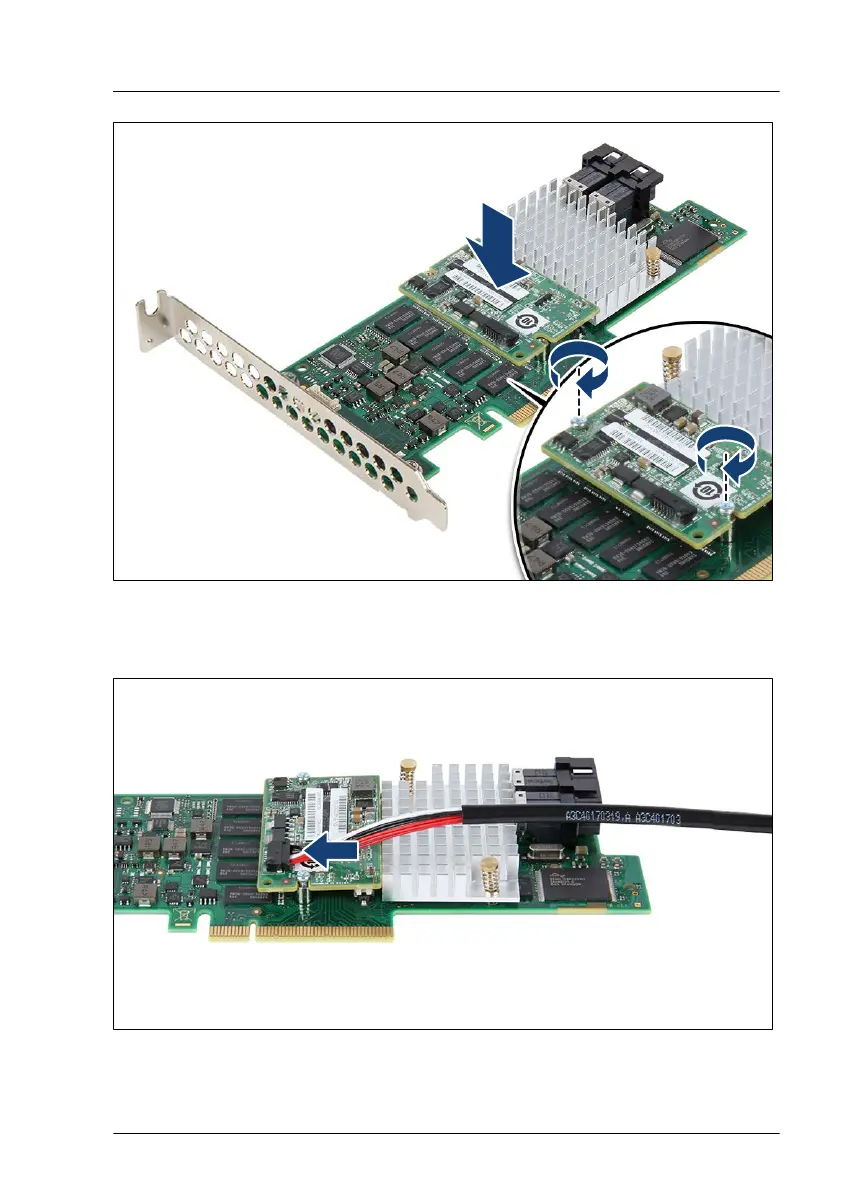

Figure 201: Figure 203: Mounting the TFM (B)
▶
Fasten the TFM on the RAID controller with two screws from the TFM kit.
Figure 202: Connecting the FBU adapter cable to the TFM
Expansion cards and backup units
TX1330 M4 Upgrade and Maintenance Manual 317
