Fujitsu PRIMERGY TX1330 M4

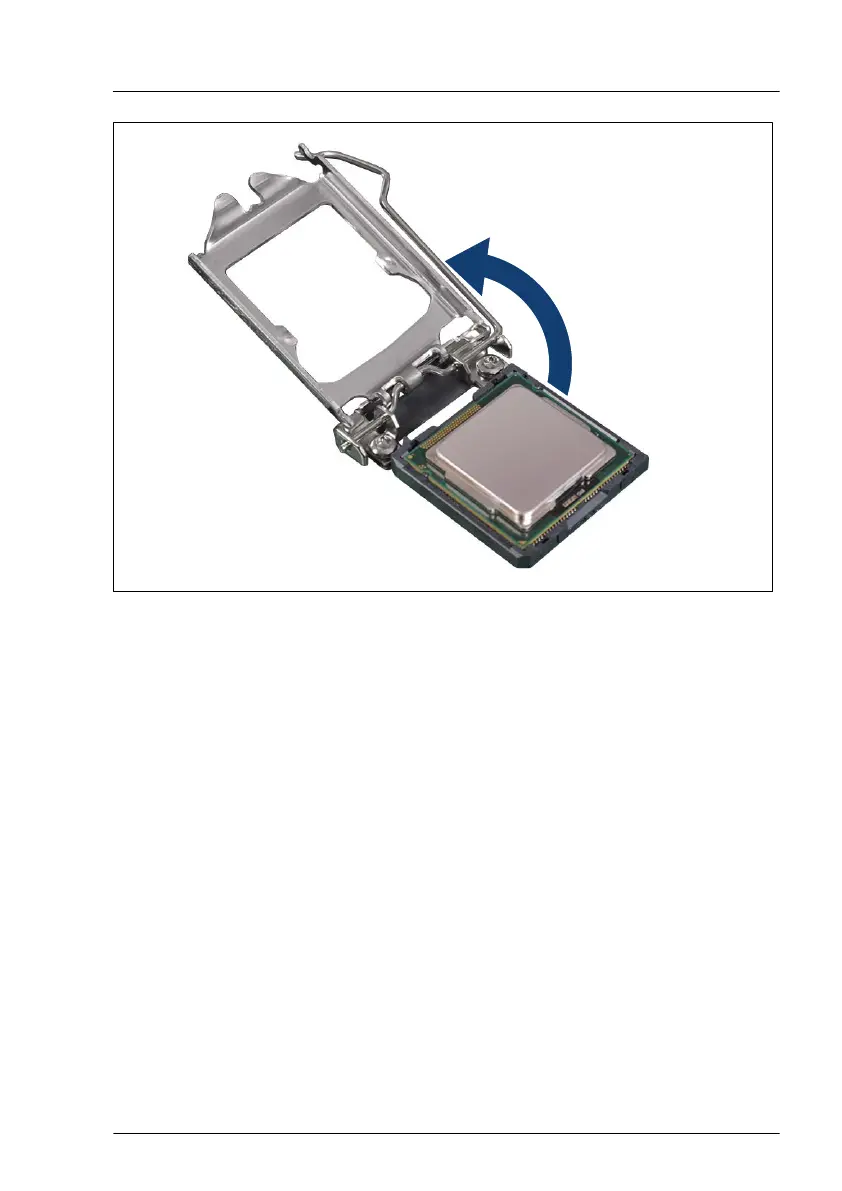

Figure 219: Opening the load plate
▶
Rotate the socket lever to lift the load plate away from the socket.
▶
Make sure that the load plate is in the fully open position.
Processor (CPU)
TX1330 M4 Upgrade and Maintenance Manual 345
