Fujitsu PRIMERGY TX1330 M4

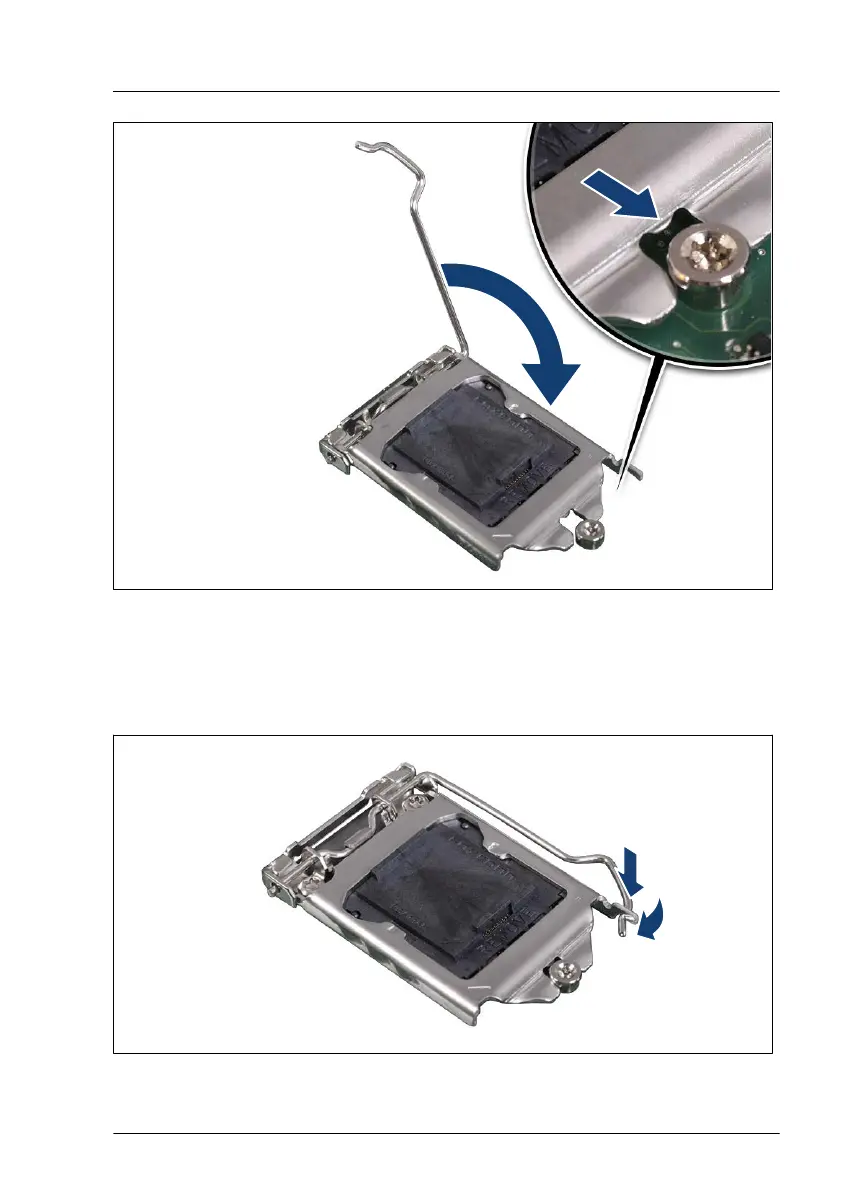

Figure 230: Closing the load plate (B)
▶
Lower the socket lever while making sure that the front edge of the load
plate slides under the shoulder screw cap (see close-up) as the lever is
lowered.
Figure 231: Latching the socket lever
Processor (CPU)
TX1330 M4 Upgrade and Maintenance Manual 357
