Fujitsu PRIMERGY TX1330 M4

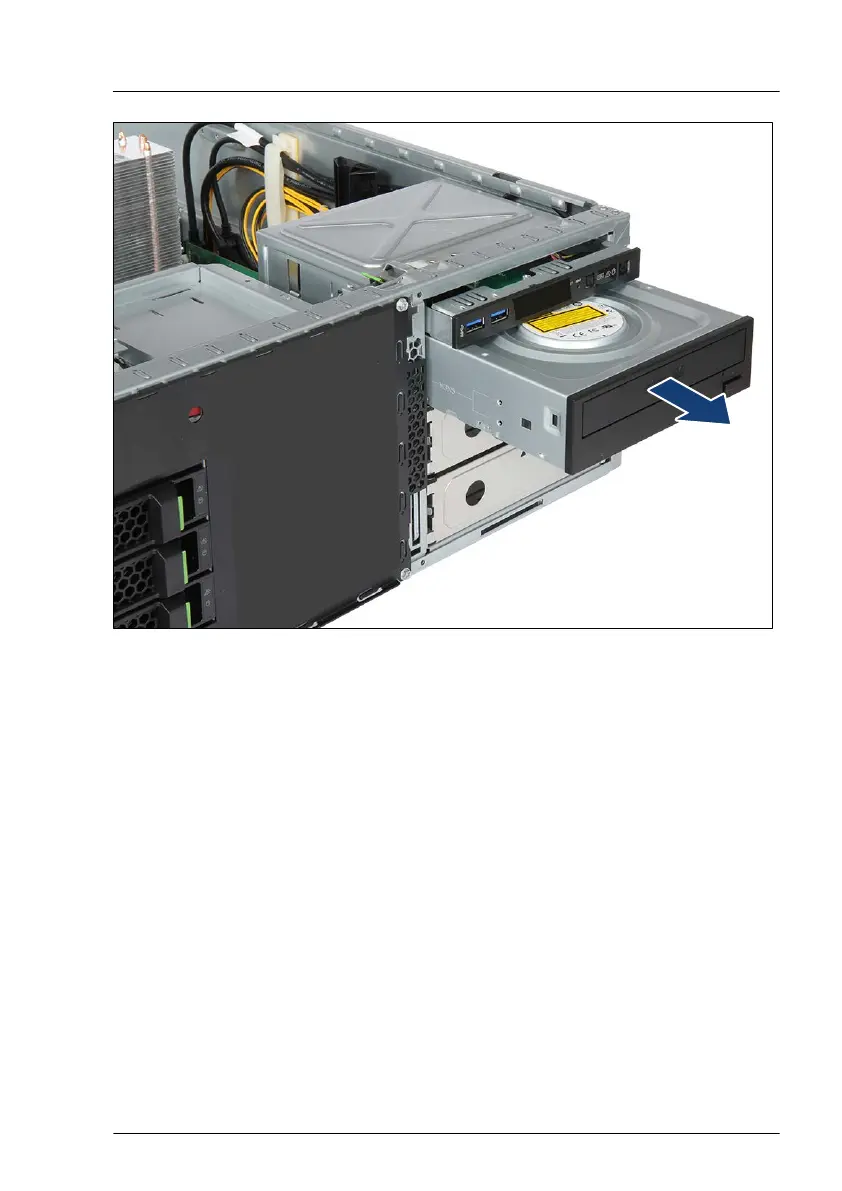

Figure 245: Removing the accessible drive
▶
Carefully pull the accessible drive out of its installation bay.
▶
Close the locking bar
, see "Closing the accessible drive locking bar" on
page 91.
Installing accessible drive dummy covers
▶
If applicable, install accessible drive filler covers, see "Accessible drive filler
covers" on page 92.
▶
If applicable, install accessible drive covers, see "Accessible drive covers"
on page 95.
Concluding steps
▶
"Reassembling" on page 66.
▶
"Connecting the power cord" on page 79.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 371
