Removing the ultraslim ODD dummy cover

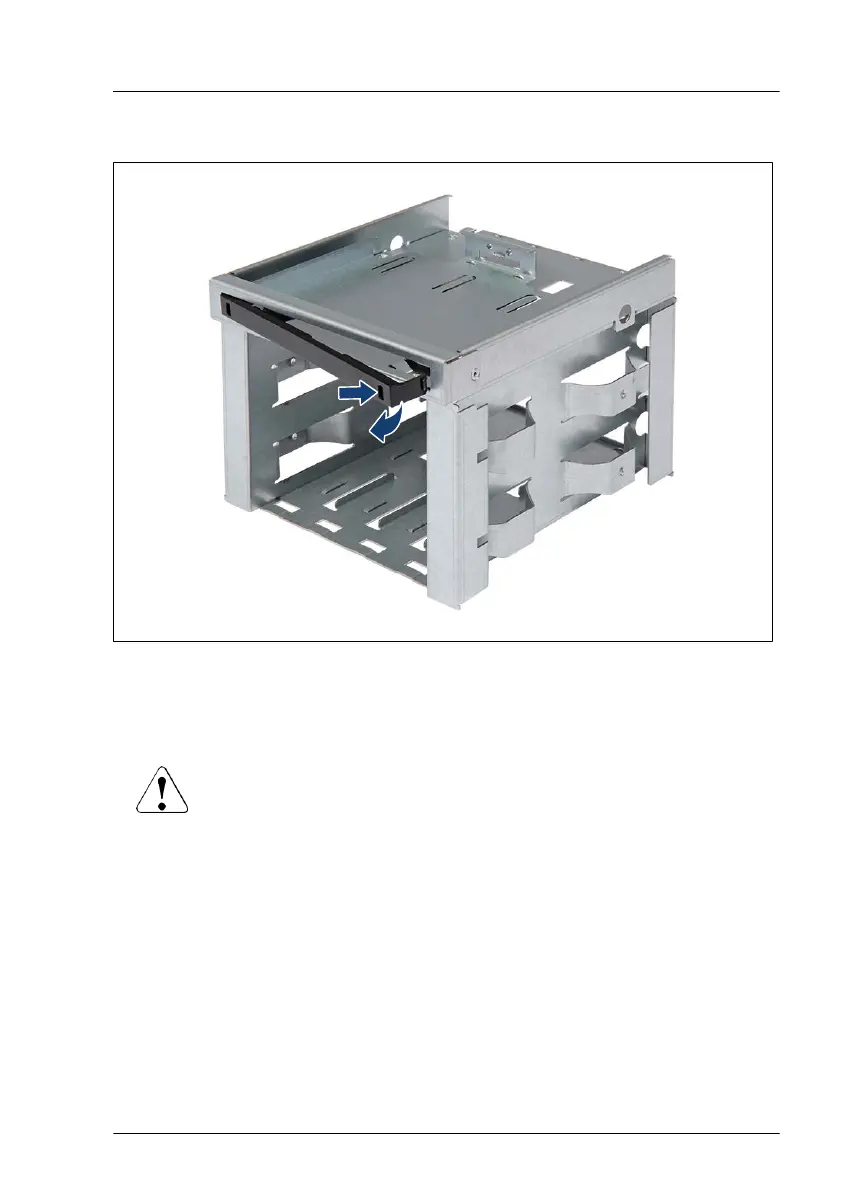

Figure 255: Removing the ultraslim ODD dummy cover
▶
Press on the locking latch on the Ultraslim ODD dummy cover.
▶
Remove the ultraslim ODD dummy cover from the HDD extension box.
CAUTION
▶
Keep the dummy cover for future use.
▶
If you remove the accessible drive again and do not replace it
with a new one, the dummy cover must be reinstalled to comply
with EMC regulations and to satisfy cooling requirements and fire
protection measures.
Accessible drives
TX1330 M4 Upgrade and Maintenance Manual 385
