Fit the rack front cover on the server front.
▶
Ensure that the rack mounting brackets properly engage on both sides of
the chassis as shown in the close-up.

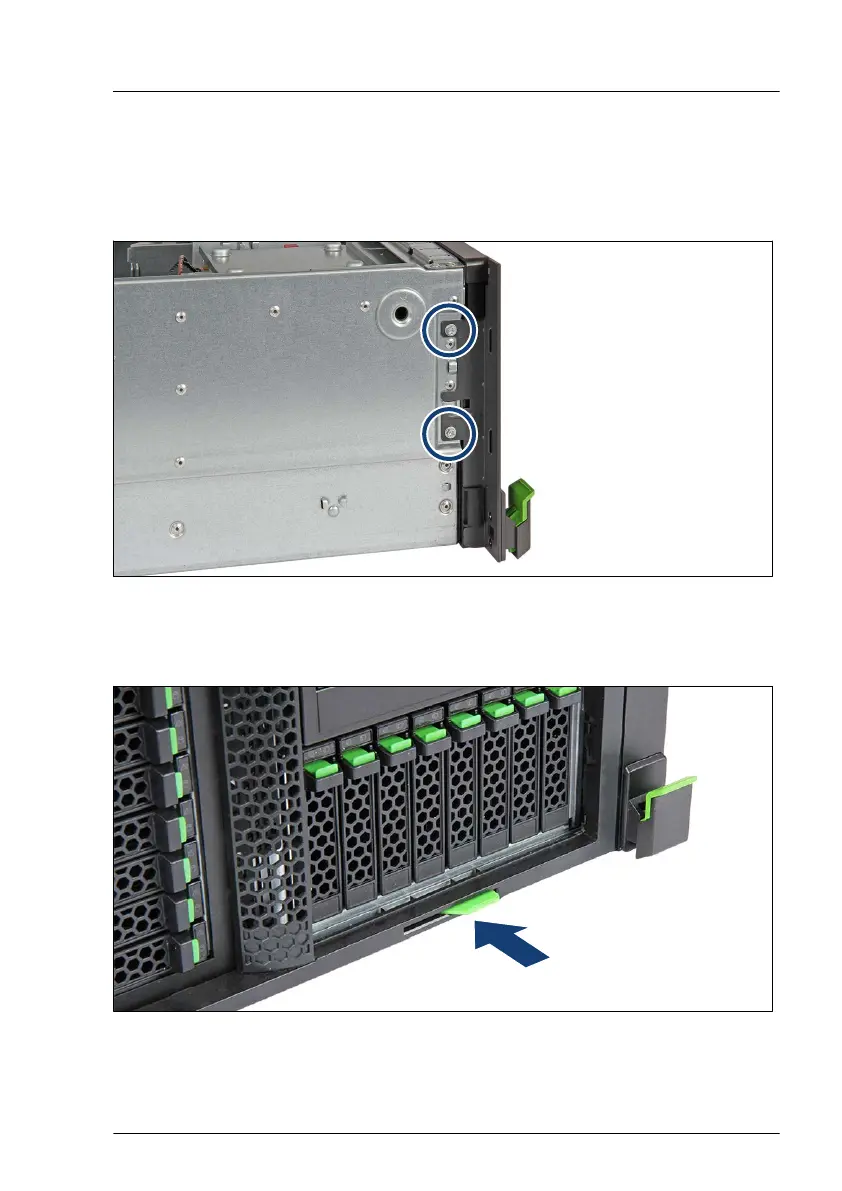

Figure 21: Installing the rack front cover (B)
▶
Fasten the rack front cover to the chassis with two screws on either side.
Figure 22: Installing the ID card
▶
Insert and push the ID card into its slot until it locks in place as shown.
Basic hardware procedures
TX1330 M4 Upgrade and Maintenance Manual 67
