GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-20 Section 8-4 - Back End Processor Power Supply Replacement
3.) Clip the ty-wraps holding the power supply cables to the side of the power supply.
4.) Mark both ends of the power connectors, as shown in Figure 8-11 on page 8-20 , on the power
cables coming from the power supply to the:
-CD
-MO
-PC2IO
- HDD
- PCI Bird Card (If system has 3D option)
NOTE: All five power connectors are exactly alike. They should be marked as a reference for cable
routing purposes when the new power supply is installed.

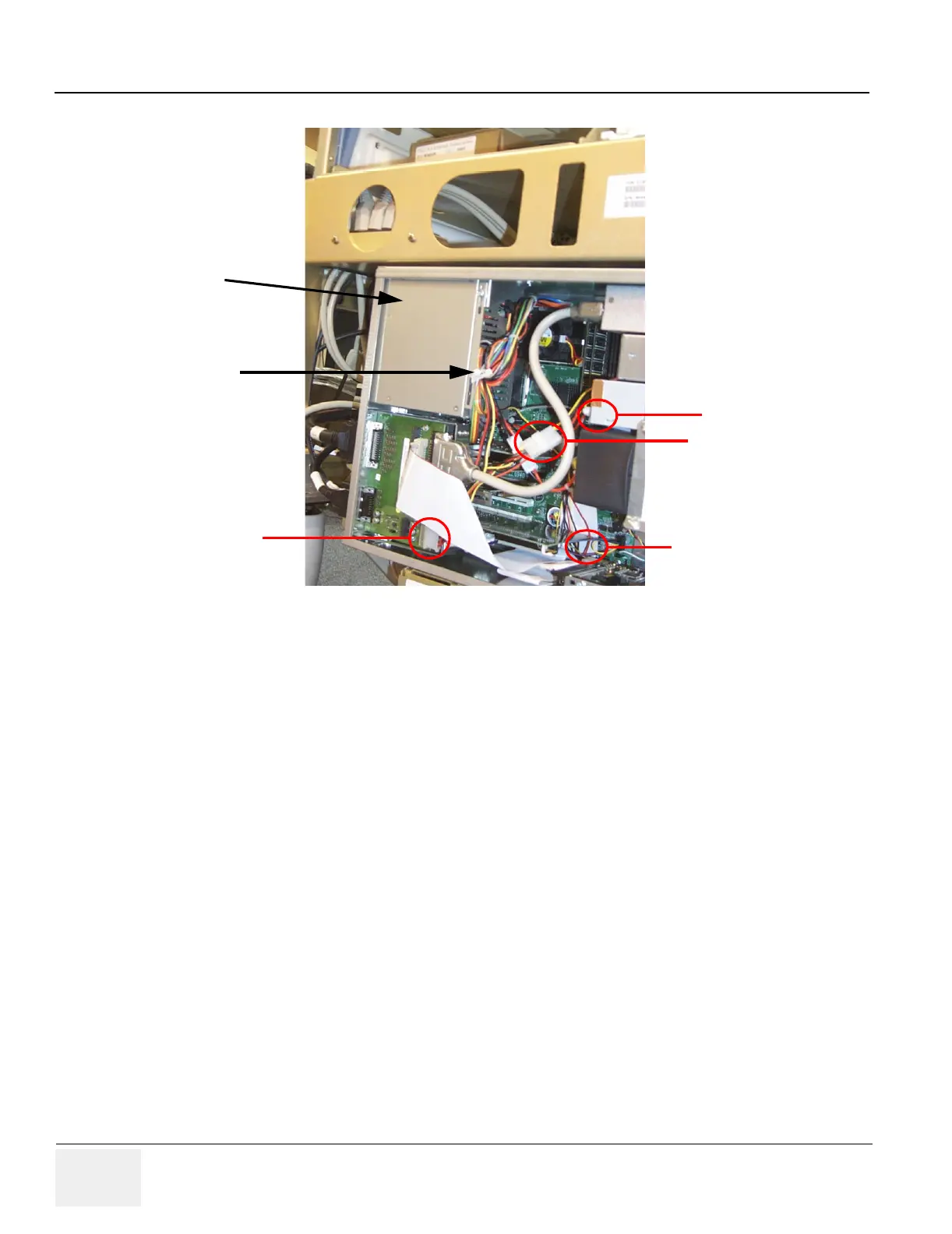

Figure 8-11 LOGIQ 9 Power Supply & Connector Locations
Cut Ty-wraps
Power Supply
Location
PC2IO
CD
MO
CD
HDD
