8-40 Section 8-7 - BEP MOD Replacement Procedure (BEP 2.x and above only)
8-7-4 MOD Drive Removal Procedure (cont’d)
4.) Peel back the adhesive trim as shown in Figure 8-41 on page 8-40 .

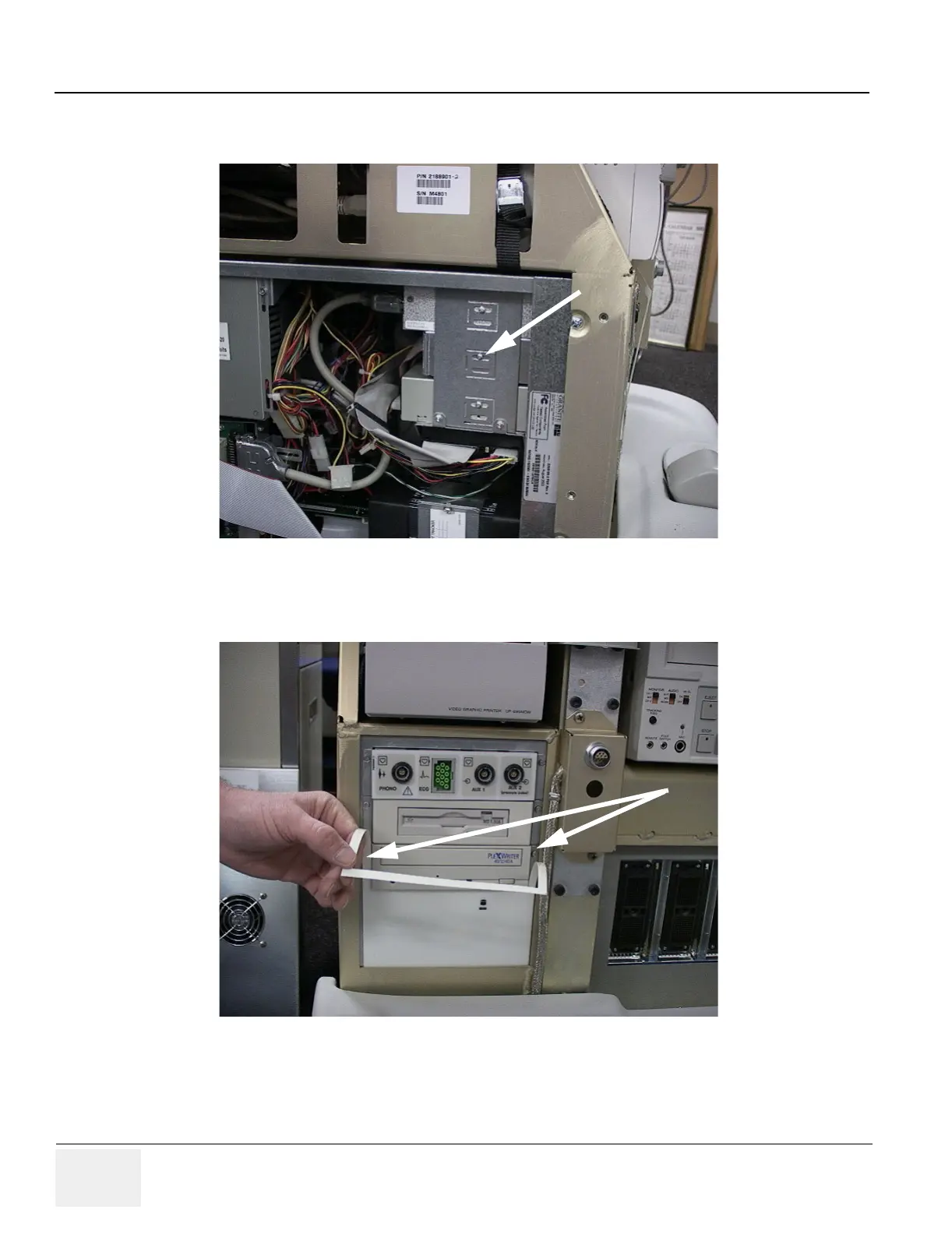

Figure 8-40 MOD Side Screw
Figure 8-41 BEP Front Adhesive Trim
