GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-42 Section 8-7 - BEP MOD Replacement Procedure (BEP 2.x and above only)
8-7-4 MOD Drive Removal Procedure (cont’d)
8.) Remove the power and IDE Cables from the MOD. Refer to Figure 8-45 on page 8-42 .
9.) Refer to Figure 8-45 on page 8-42 and Figure 8-46 on page 8-43 , go through the side of the MOD
case to remove the four screws holding the MOD to the case.

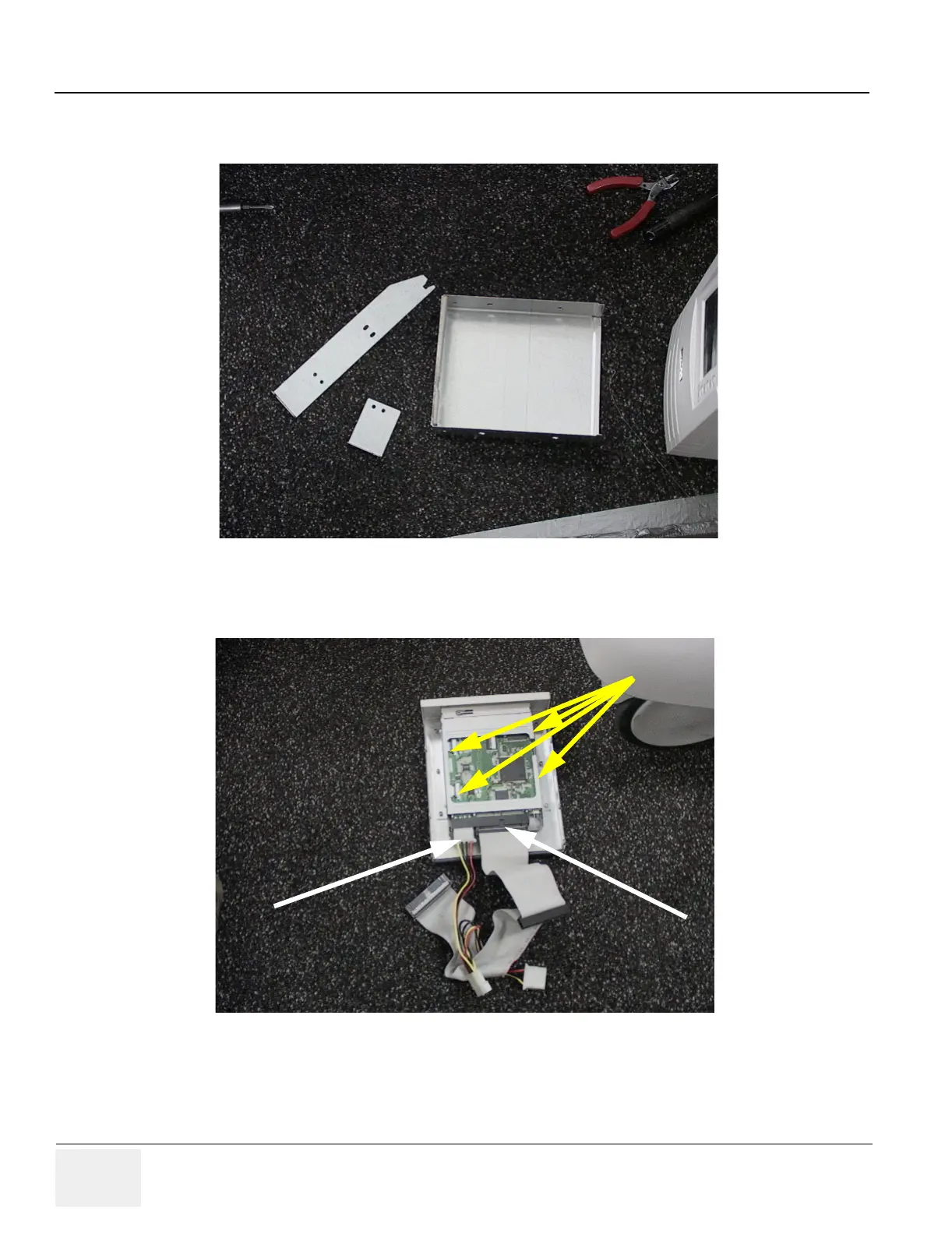

Figure 8-44 MOD Rails and Top Cover
Figure 8-45 MOD Power and IDE Connections
