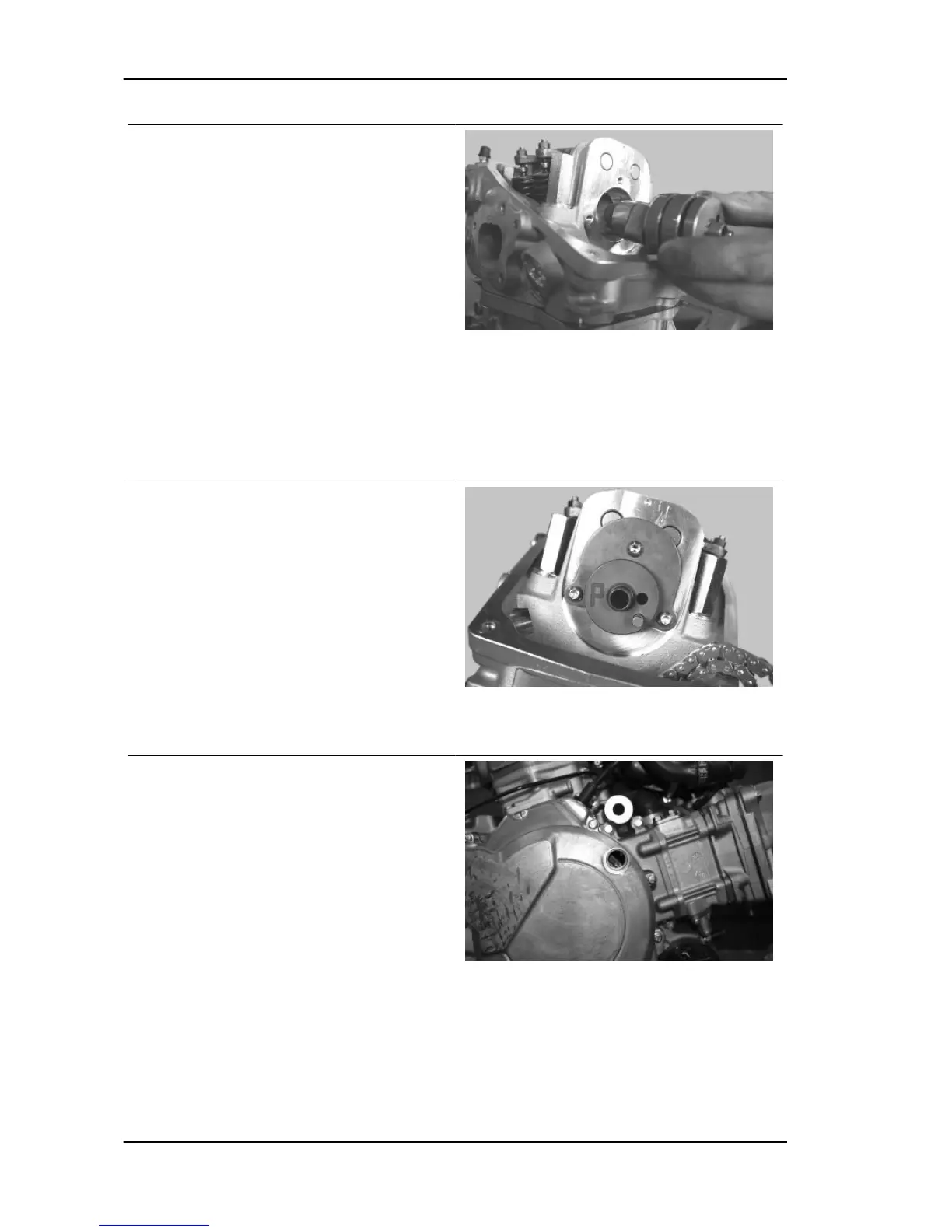

- Clean the camshaft by blowing with little com-
pressed air jets, especially the retaining plate
housing.
- Lubricate the 2 shafts.
- Insert the camshaft into the head with the cams
opposite the rocking levers.
- Remove any LOCTITE residues from the screws fixing the camshaft retaining bracket using a brush.
- Apply the recommended product to the fixing screws and tighten to the prescribed torque.
Recommended products
Loctite 243 Medium strength threadlock
Loctite 243 medium-strength threadlock
- Insert the camshaft retain bracket with visible
countersinks and tighten the 3 fastening screws to
the prescribed torque, being careful not to damage
the inside hexagon.
Locking torques (N*m)
Camshaft retaining bracket screws: 4 ÷ 6
- Finish closing the flywheel side crankcase with the components following the instructions described
in the specific sections.
- Using the TORX wrench, remove the timing
check cap.
Engine GP 800 i.e.
ENG - 66
