275

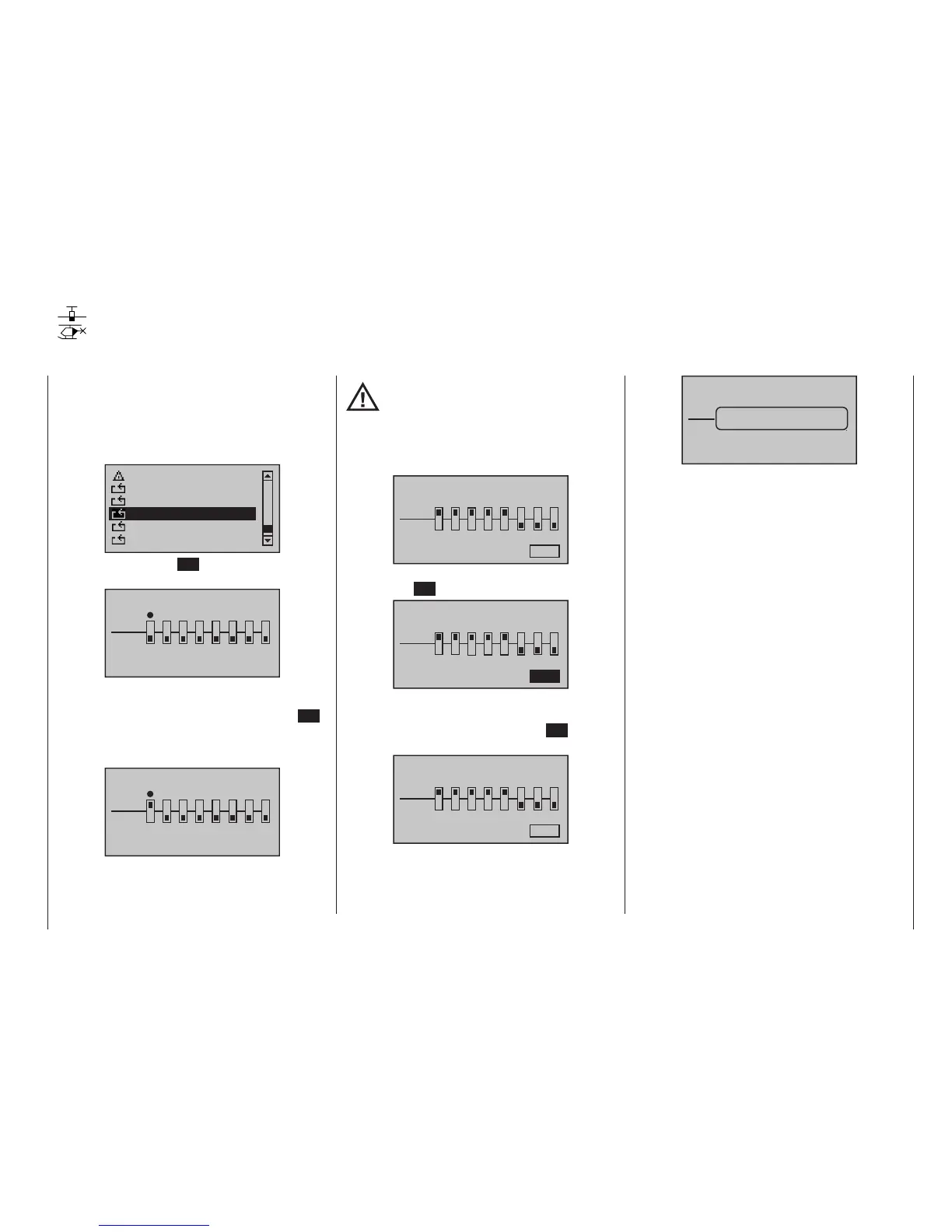

Program description - Servo test
Servo test
Function test of Servo 1 … 8
This option is available on the mc-20
transmitter only.
Use the selection keys on the left or right
four-way button to scroll to the menu op-
tion »Servo test« menu option in the multi-function
menu:
MP3 player
Basic settings
Servo display
Servo test
Code lock
Info display
Tap briefly on the centre SET key of the right four-way
button to open this menu option:
Servo test
act
off
1 2 3
4
5
6
7 8
0.5s
Any of the inputs 1 … 8 can be activated for the servo
test by selecting with the selection keys of the left or
right four-way button and then briefly tapping the SET
key of the right four-way button. As soon as you have
set only one of the inputs 1 … 8 to “active”, the follow-
ing notice appears at the bottom of the display screen:
Servo test
act
off
1 2 3
4
5
6
7 8
0.5sCLR=act./deact.
A simultaneous tap on the or selection keys
of the right four-way button (CLEAR) would now start
and stop, for example, a servo test of input “1” with a
cycle time of 0.5 s.
However, start a servo test only in a model
memory without mixer specially constructed for
this purpose!
Doing so will produce unpredictable power swings.
To change cycle time, select the loop symbol at the
bottom right of the display with the selection keys of
the left or right four-way button:
1 2 3
4
5
6
7 8
0.5s
Servo test
act
off
CLR=act./deact.
Once this value field has been activated with a brief tap
on the centre SET key of the right four-way button …
1 2 3
4
5
6
7 8
0.5s
Servo test
act
off
CLR=act./deact.
… the motion cycle can be changed for the value field
shown in inverse video within a range of 0.5 s and 3.0 s
in 0.5 s increments. Briefly tap the centre SET key of
the right four-way button to finish time selection.
1 2 3
4
5
6
7 8
2.5s
Servo test
act
off
CLR=act./deact.
As soon as the servo test has been started by a simul-
taneously tap on the or selection keys of the
right four-way button (CLEAR) a window will open:
1 2 3
4
5
6
7 8
2.5s
Servo test act.
Servo test
act
off
CLR=act./deact.
The “servo test” function automatically operates the
servos as though the corresponding transmitter con-
trols were being simultaneously and continuously
moved back and forth between -100 % and +100 %
during the preset time. All active mixing and coupling
functions in the respective model memory, therefore,
are effective and the servos move within the specified
servo paths and servo delimitations.
Another tap simultaneously on the or selec-
tion keys of the right four-way button (CLEAR) will
terminate the test.
