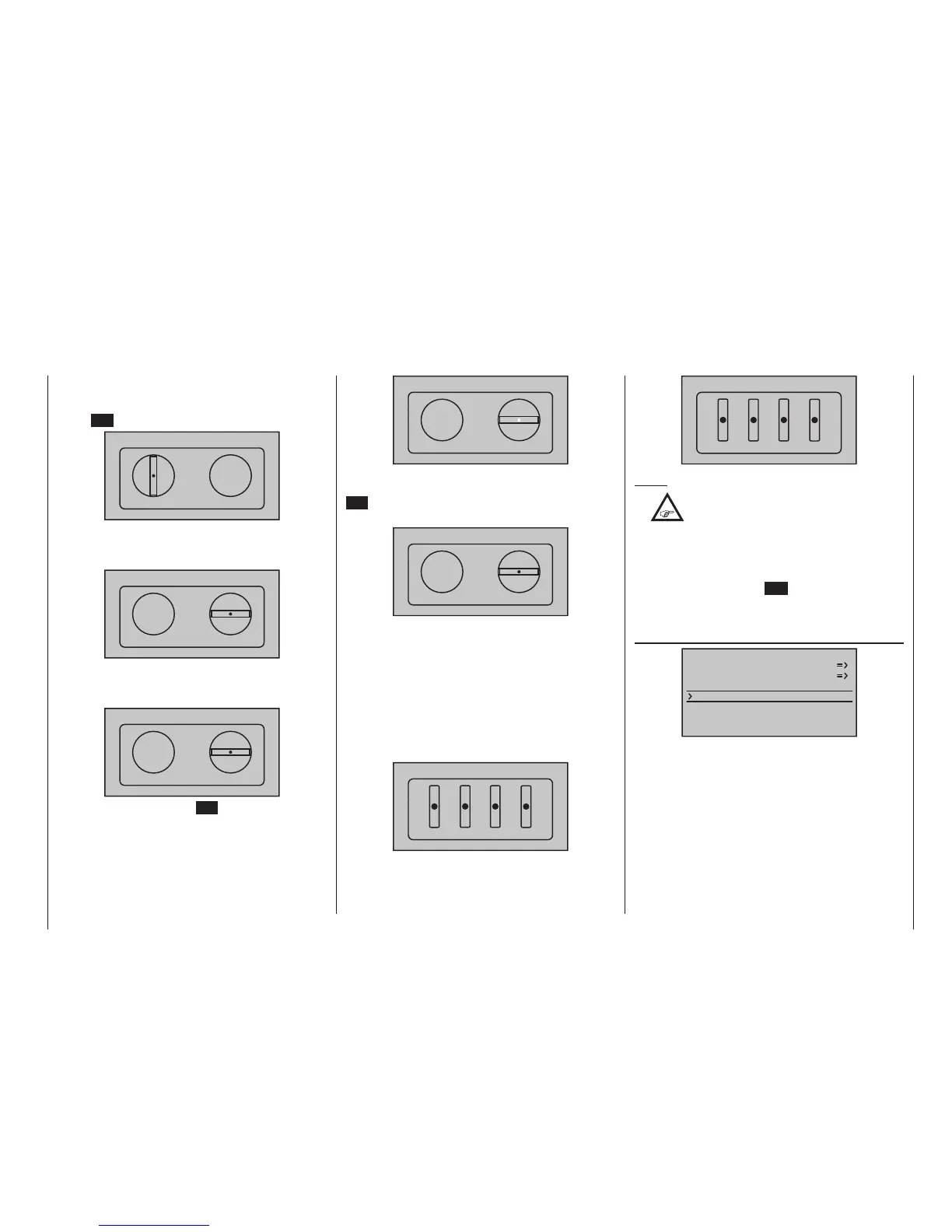

39
Transmitter description - Hidden mode
Otherwise jump (as described at the outset of the pre-
vious double page) to the “STICK CALIBRATION” line
in the »SECRET MODE« menu then briefly touch the
centre SET key of the right four-way button.
STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%
The selection keys of the right four-way button will
now allow you to cyclically select the four calibrated
stick planes, e. g. the left/right plane of the right stick:
STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%
Now position the right stick – without exerting extra
force – to its left limit corresponding with the on-screen
blinking arrow pointing to the left:
STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
+102%
… and briefly tap the centre SET key of the right four-
way button. This concludes this example calibration of
the right stick’s left limit. The circle in the middle of the
stylized stick plane will now blink as confirmation of the
calibration:
STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
+100%
Now release the self-neutralizing stick so it can return
to its centre position and then tap again on the centre
SET key to calibrate the stick’s centreed position. The
right triangle marker will begin to blink:
STICK CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%
Repeat the calibration process for the right limit of the
right stick. The other stick planes are calibrated analo-
gously.
Proceed similarly to calibrate the two sliders mounted
in the middle console and the two proportional rotary
controls on the sides of the transmitter. The calibration
options for these proportional controls can be reached
by repeatedly tapping on the or selection keys of
the right four-way button until the desired calibration
position is reached, e. g. …
SLIDE CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%
LEVER CALIBRATION
CONTRAST
LANGUAGE
0
VOICE
DEUTSCH
ENGLISH
STICK CALI.
0%
Notes:
•
Correct any bad calibrations by repeating
the respective process.
• Within a given stick plane, each of the three cali-
bration positions can be selected directly with the
selection keys of the left or right four-way but-
ton.
Briefly touching the centre ESC key of the left four-way
button will terminate the process and return to the sub-
menu “STICK CALIBRATION”.
Bluetooth initialization
HIDDEN MODE
VOICE
STICK CALI.
FIRMWARE UPDATE
BLUETOOTH INIT.
If you install a Bluetooth module, No. 33002.5, you
should use this menu point to initialise it as described
in the instructions supplied with the unit.
