Program description - Servo display
Servo display
Display of the servo position
This option is available on both transmit-
ter types.
Use the selection keys on the left or right
four-way button to scroll to the menu op-
tion »Servo display« menu option in the multi-function
menu:
MP3 player
Basic settings
Servo display
Servo test
Code lock
Info display
Briefly tap the centre SET key of the right four-way but-
ton to open this menu option.

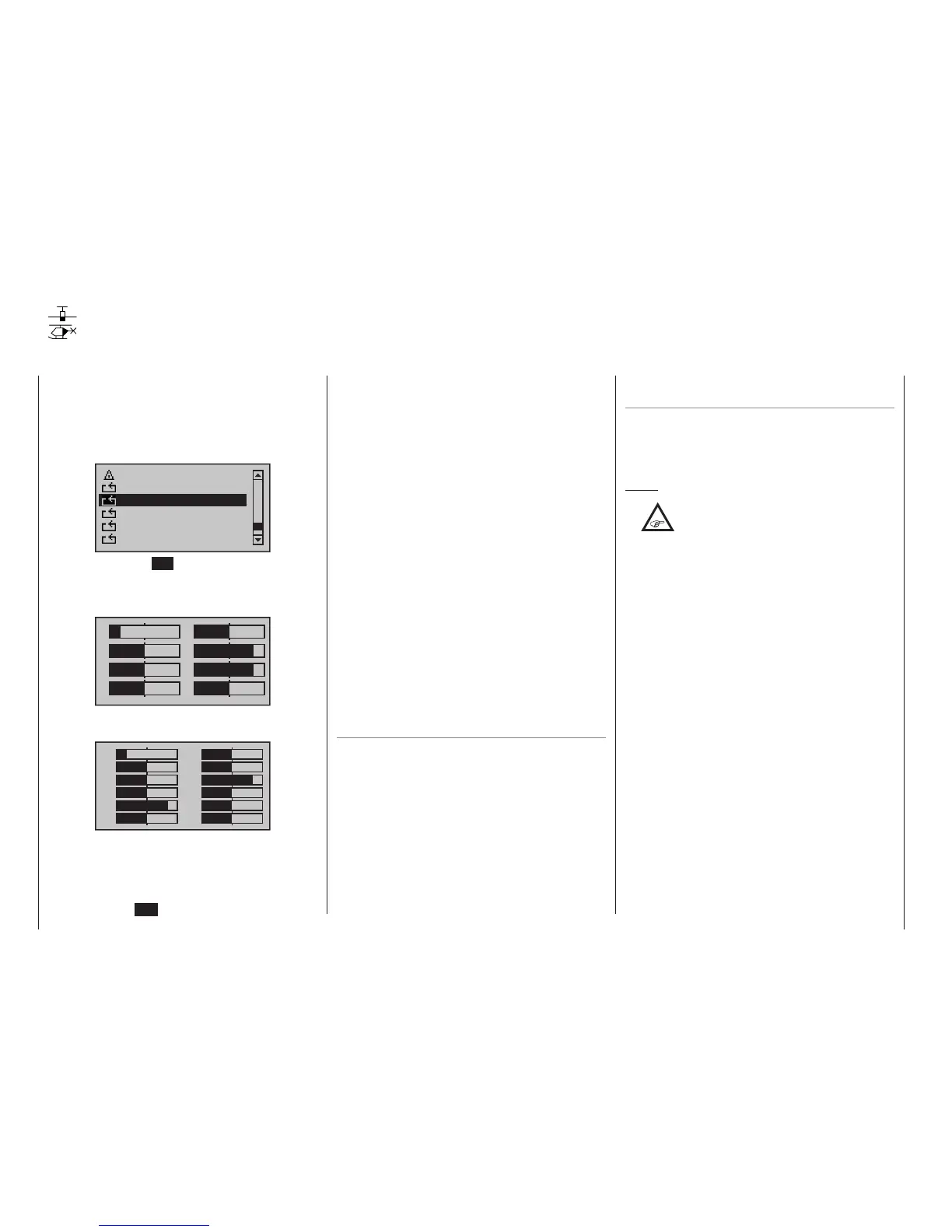

The screen of the standard eight-channel
mc-16
HoTT transmitter looks as follows:
1
3
7
2
4
8
0%
0%
–100 %
0%
0%
+100 %
5 6
0%
+100 %
… while the screen of the twelve-channel mc-2 0
HoTT transmitter, looks like this:
1
3
5
7
+
0%
0%
9
11
0%
0%
2
4
6
8
+
0%
0%
0%
0%10
12
0%
–100 %
+100%
+100%
However, the visual display of current servo positions
can not only be opened by selecting this menu, but
also – directly from the transmitter’s base screen as well
as nearly all other menu positions – with a simultaneous
tap on the keys of the left four-way button. A brief
tap on the centre ESC key of the left four-way button
will cause a return to the respective point from which it
was called.
The current position of each servo is displayed in a bar
diagram between -150 % and +150 % of normal travel
with consideration for the control and servo settings,
the dual-rate/expo functions, the interplay of all active
linear and curve mixers, etc. 0 % corresponds precisely
to the servo centre position. This way, you can quickly
check your settings without having to switch on the
receiver. However, this does not absolve you from first
carefully testing all program steps, as well as on the
model, prior to the first operation of the model in order
to eliminate errors!
For winged models the display takes place ac-
cording to the following scheme:
Bar 1 Throttle/brake servo
Bar 2 Aileron or left aileron
Bar 3 Elevator
Bar 4 Rudder
Bar 5 Right aileron
Bar 6 Camber-changing flap (left) / free
channel
Bar 7 Camber-changing flap (right) / free
channel
Bar 8 Free channel / second elevator servo
Bar 9 Free channel / Left FL2
Bar 10 Free channel / Right FL2
Bar 11 Free channel / Left AI2
Bar 12 Free channel / Right AI2
… and for helicopter models::
Bar 1 Pitch or roll (2) or pitch (2) servo
Bar 2 Roll (1) servo
Bar 3 Nick (1) servo
Bar 4 Tail servo (gyro)
Bar 5 Nick (2) servo / free channel
Bar 6 Throttle servo or speed controller
Bar 7 Gyro sensitivity / free channel
Bar 8 Speed controller / free channel
Bar 9 Free channel
Bar 10 Free channel
Bar 11 Free channel
Bar 12 Free channel
Notes:
•
However, please note that the servo dis-
play always refers to the original servo se-
quence, i. e. it does not take into account
any changes you may have made to the
output sequence in the »Tx. output swap« menu
(which is available as standard on the mc-20
HoTT transmitter only), or in the “Receiver output”
sub-menu of the »Base setup model« menu.
• Please also note that, by default, bar diagram
tracking is opposite to the left/right movements of
a stick.
• The number of channels shown in this menu cor-
respond to the control channels available in the re-
spective transmitter. However, the number of ac-
tually usable channels depends on the receiver
type as well as the number of servos connected to
it and, therefore, may be considerably lower under
certain circumstances.
• Use this display during the model programming,
because you can immediately check all settings
on the transmitter. However, this does not absolve
you from rst carefully testing all program steps,
as well as on the model, prior to the rst operation
of the model in order to eliminate errors!
mc
16 20
To Next Page
