88

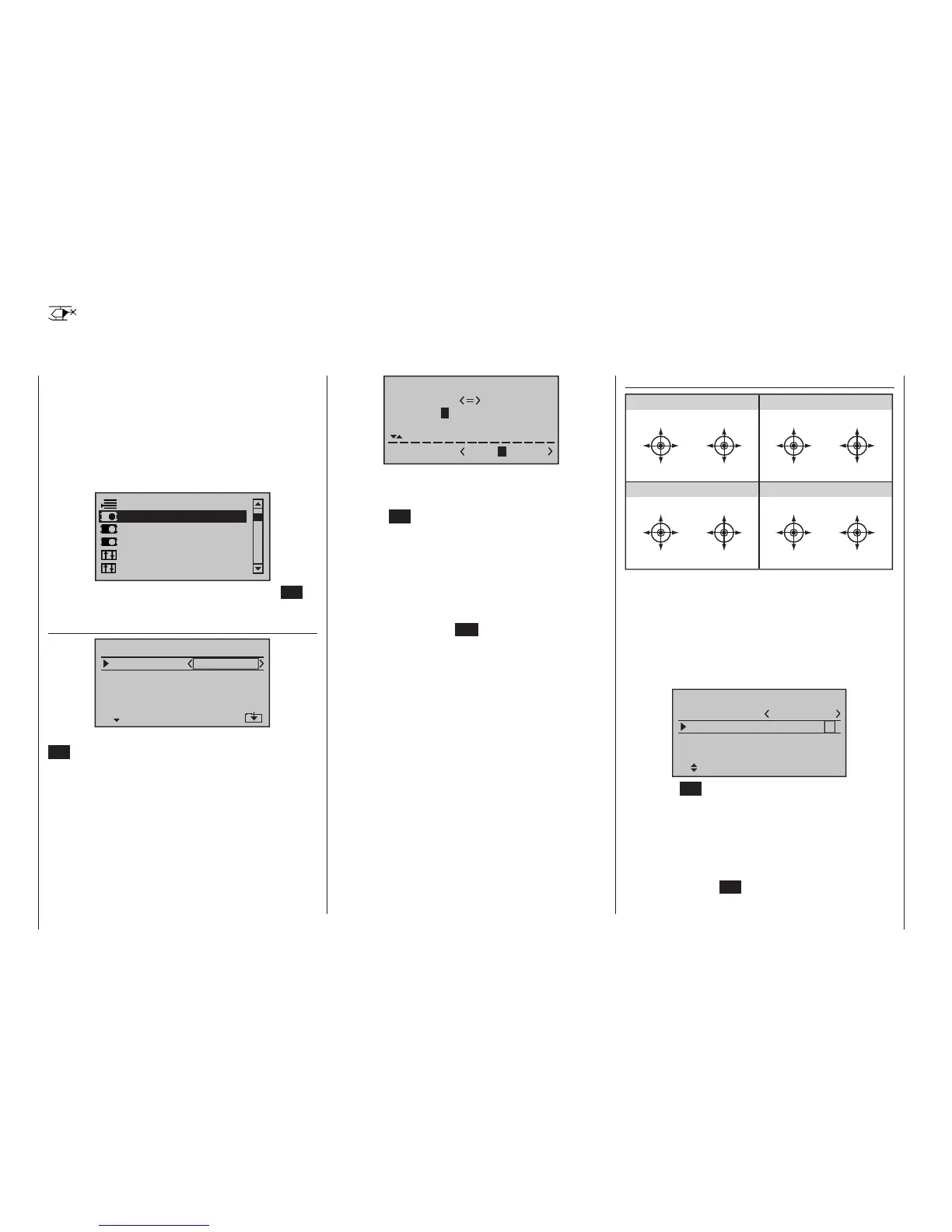

Program description - Base setup models | Helicopter models
This option is available on both transmit-
ter types.
Before programming specific parameters,
there are some basic settings to be made
which effect the currently active model memory.
Use the selection keys on the left or right four-way
button to select the »Base setup model« option in the
multi-function menu:
Helicopter type
Suppress models
Base setup model
Servo adjustment
Control adjust
Stick mode
Open this menu option with a tap on the centre SET
key of the four-way button pad:
Model name
Mod.name
Stick mode
module
1
n/a
Base setup model
n/a
BD2
BD1
DSC Output PPM10
HoTT
Change to the next screen page with a brief tap on the
SET key of the right four-way button. This will open
a screen of characters for entry of the model’s name.
A maximum of 9 characters can be used to specify a
model name.
!"#$%&’()�+,–./0123
456789:;
Mod Name
STARL
FGHIJKL MNOPQRSTUVWX
YZ[¥]^_`abcdefghijk
?@ AB CDE
Now the desired characters can be selected with the
selection keys of the left four-way button. Move to the
next position to select the next character with a tap on
the centre SET key of the right four-way button.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will place a space character
at the current position.
Positioning to any character position within the entry
field can be done with the keys of the right four-
way button.
A return to the previous menu screen is accomplished
with a tap on the centre ESC key of the left four-way
button.
A model name entered in this manner will appear in the
base screen of the »Model select« menu and in the
sub-menus of the »Copy / Erase« menu item.
Stick mode
MODE 2 (Throttle at left stick)
pitch axis
pitch axis
tail rotor
tail rotor
throttle/pitch
throttle/pitch
roll
roll
throttle/pitch
throttle/pitch
tail rotor
tail rotor
pitch axis
pitch axis
roll
roll
pitch axis
pitch axis
roll
roll
throttle/pitch
throttle/pitch
tail rotor
tail rotor
throttle/pitch
throttle/pitch
roll
roll
pitch axis
pitch axis
tail rotor
tail rotor
MODE 1 (Throttle at right stick)
MODE 3 (Throttle at right stick)
MODE 4 (Throttle at left stick)
Basically there are four different ways to assign the
four helicopter control functions, roll, nick, tail rotor and
throttle/pitch to the two sticks. Just which of these
is used depends on the preferences of the individual
model pilot.
Use the selection keys of the left or right four-way
button to select the “Stick mode” line. The option field
will be framed.
Mod.name
Stick mode
module
1
n/a
Base setup model
n/a
SEL
BD1
DSC Output PPM10
HoTT
STARLET
Tap on the SET key. The currently displayed stick
mode will be displayed in inverse video. Now use the
selection keys of the right four-way button to select
from among options 1 through 4.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset the display to stick
mode“1”.
Another tap on the SET key will again deactivate op-
tion selection so a change to another line can be af-
Base setup model
Model-specific base settings for helicopter models
mc
16 20
