General operating notices

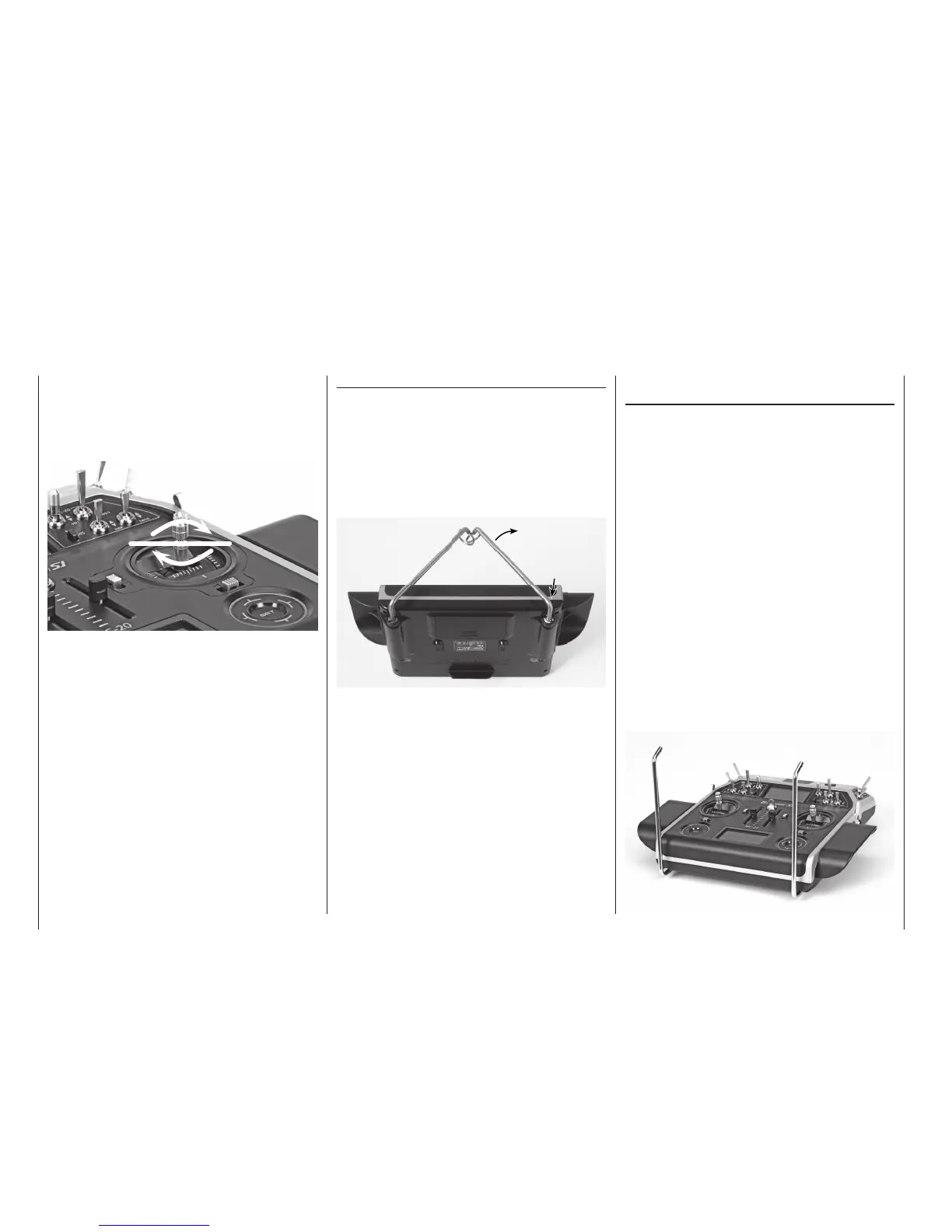

Transmitter neckstrap support bars
As standard the
mc-20 HoTT transmitter set in-
cludes a strong support system for the attachment of
a neckstrap. The mc-16 HoTT transmitter can be
retro-fi tted with the transmitter support system, No.
33012.2, at any time.
The support bars are inserted in the sockets in the
transmitter case, and locked in place. After the trans-
mitter has been used, they can be removed again in
similar way:
fi rst press,
then turn
The support bars are installed as follows: push one of
the bars into the socket in the transmitter case, angled
towards the centre of the transmitter as shown above.
Now ensure that the retaining pin attached to the bar
is in line with the slot in the socket, and press the bar
against the spring in the direction of the transmitter for
a distance of about one centimetre. At the same time
fold the bar outwards (do not use force) in order to lock
it in place. Install the second support bar in the same
manner.
To remove the support bars fi rst unlock one of the bars
by lightly pressing it inwards, and then fold it towards
the centre of the transmitter. As soon as the retaining
pin is free, you can withdraw the support bar from its
guide. Repeat the procedure with the second support
bar.
Stick length adjustment
The length of both joysticks can be continuously ad-
justed to adapt these transmitter controls to the pilot’s
preference.
Hold the lower half of the knurled grip in place then turn
the upper section to release its counter-locked threads:
Now pull up or push down on the joystick’s end to the
desired length. When the length is suitable, tighten the
counter-locked threads of the upper and lower sections
again.
The procedure is the same if you wish to replace the
short stick-tops with the longer ones also supplied in
the set.
The following straps are available as accessories:
No. Description
71.26 Transmitter straps, Graupner HoTT
72.40 Transmitter straps, deluxe
