25

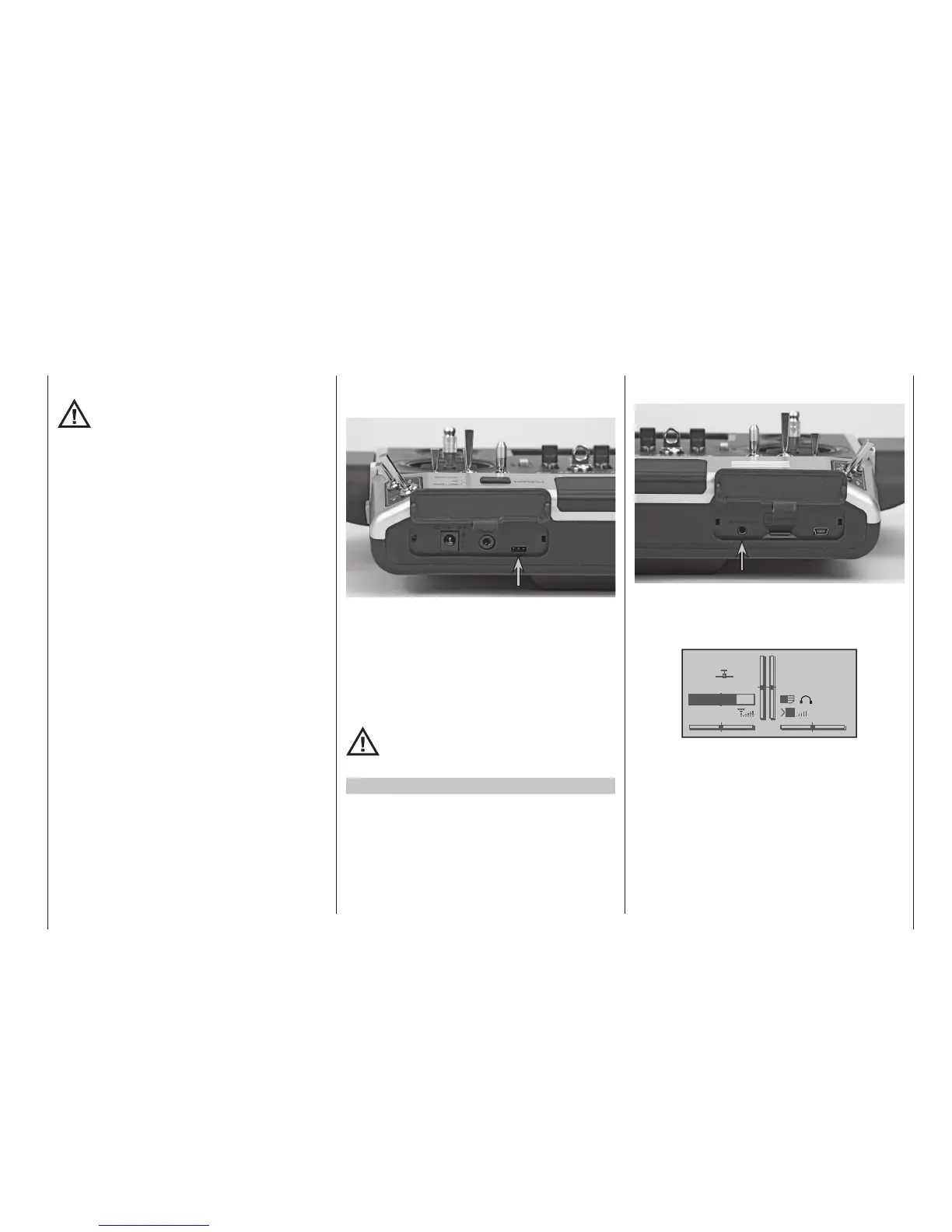

Transmitter description - Face-side connections
The left-hand side flap provides access to the DATA
socket of the mc-16 HoTT and mc-20 HoTT
transmitter:
This jack is intended for connection of the optional
Smart-Box, No. 33700. Details about the Smart-Box
can be found with the given product in the Graupner
RC main catalogue or in Internet at www.graupner.de.
However, the Data socket can also be used to con-
nect external RF modules made by other manufactur-
ers; see “EXT.” and “SP.” in the “Module” section of
the “Basic model settings” menu on pages 81 and
91.
The operation of a Smart-Box or a Bluetooth
module, see below, is in the “SP mode” gener-
ally not possible
Firmware version V1102 and higher
From firmware version V1102 it can be connected to
the Data jack now not only the Smart-Box or alter-
natively an external RF module, but also the external
Bluetooth module of MZ transmitter, No. 8351 can be
operated. For details on switching between the respec-
tive operating modes of the socket, see in “Data sel.”
the description of the menu “general settings“ on page
271.
Data jack
Once the right face-side cover has been moved away,
the transmitter’s headset connector is accessible:
The jack is intended for connecting conventional ear-
plugs or a headset by way of a 3.5mm TRS plug. (not
included in the set) An appropriate symbol will appear
in the basic display when a headset is connected:
GRAUBELE
#01
2:22h
Stp
Flt
«normal »
K78
0:00
0:00
5.5V
3.9V
M
HoTT
The transmitter’s acoustic signals as well as those
signals associated with the telemetry menu are output
via this connection. These announcements are made
in German language by default. More about this can be
found under “Voice output” in the section »SECRET
MODE« beginning on page 36 and »Telemetry«
beginning on page 236.
Headset connector
CAUTION:
For direct connection of your transmitter to a
PC or a laptop via cable (DSC-cable) and / or
PC interface for your simulator it may possi-
bly result in destruction of the transmitter by electro-
static discharge! This type of connection may there-
fore only be used if you are, for example, using a
grounding strap against electrostatic discharge
protection (commercially available in electronic
shops) during the simulator operation. Therefore
Graupner strongly recommends to use only simula-
tors with wireless transmission technology.
