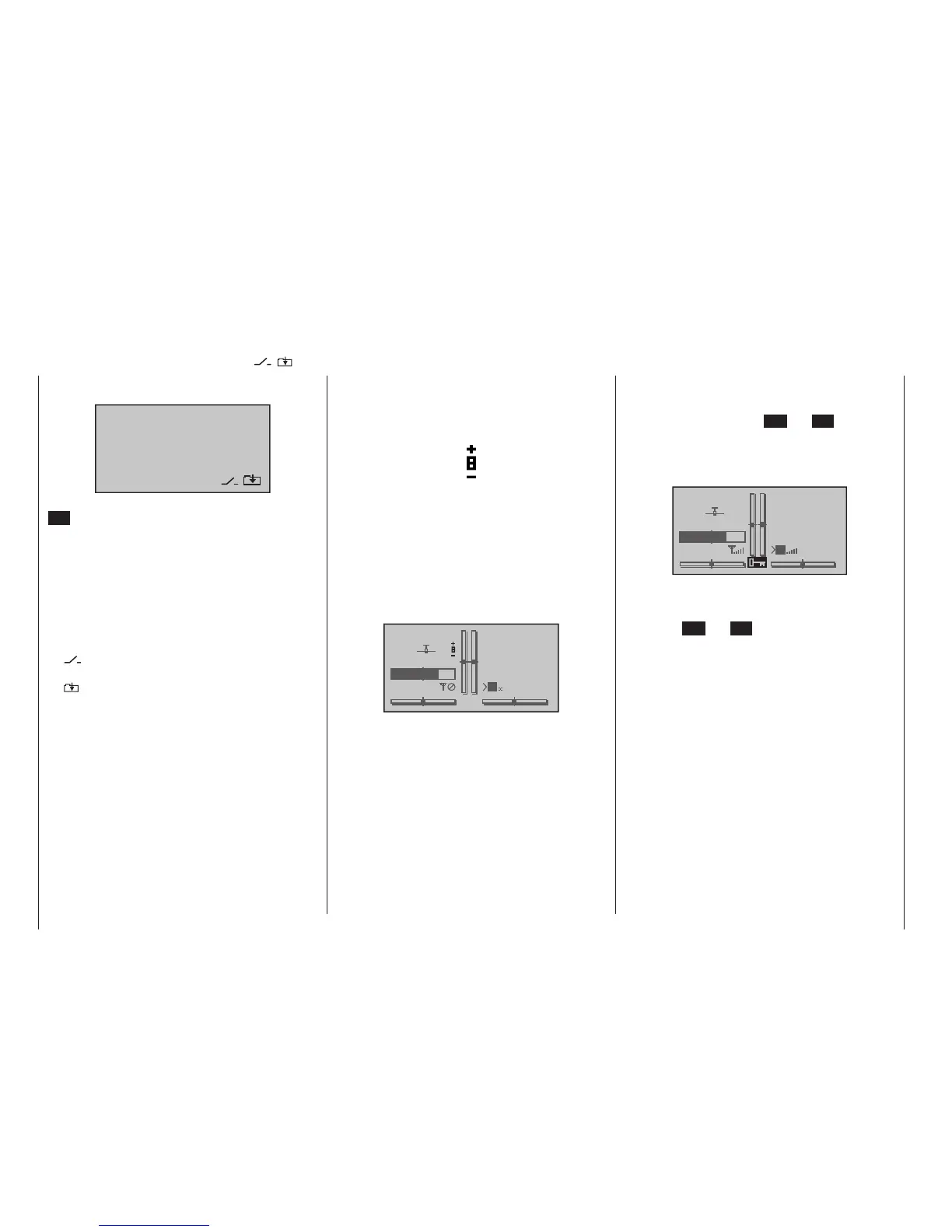

Transmitter description - Function elds | Position indicator | Entry lockout
On the mc-20 HoTT transmitter it is available a lock-
out for the touch keys, and thus protection against in-
advertent use of all setting options, can be established
by touching and holding the ESC and SET keys simul-
taneously for about two seconds while the transmitter
is in its basic display. This lockout condition is indicated
by a key symbol, located at the intersection point of the
trim bars, which is displayed in reverse video.
GRAUBELE
#01
2:22h
Stp
Flt
«normal »
K78
0:00
0:00
5.5V
3.9V
M
HoTT
The lockout is effective immediately but controls re-
mains operationally ready.
This lockout can be removed by again touching and
holding the ESC and SET keys for about two seconds.
Entry lockout
Depending on the given menu, certain function fields
will appear on the bottom display line:
CLR SEL STO SYM ASY
A marked function is activated with a tap on the
SETkey.
Function elds
• CLR (clear) erase
• SEL (select) selection
• SET (set) “set” or adjust a value
• STO (store) store (e. g. control position)
• SYM set values symmetrically
• ASY set values asymmetrically
• POS Only in »Trim memory« menu
•
switch field symbol (assignment of all
types of switches)
•
within a menu, change to the sec-
ond page, (menu continuation)
Function fields in the display
CLR, SEL, STO, SET, SYM, ASY, POS, ,
When you operate one of the two INC/DEC buttons
CTL 5 + 6, which are fitted to the two switch boards
of the mc-20 HoTT transmitter only, a small symbol
appears on the left of the screen adjacent to the two
vertical position indicators:
At the same time, for the duration of the control‘s op-
eration, the position indicator for the two vertical bars
in the middle will change from displaying current trim
position to a display of the respective current position
of the controls CTL 5 & 6.
Logically, the left control (CTL 6) is displayed by the left
bar indicator and the right bar indicator displays the
position of the right control (CTL 5). The two horizontal
bars continue to show current trim positions of respec-
tive stick trim controls:
GRAUBELE
#01
2:22h
Stp
Flt
K78
0:00
0:00
RX0.0V
3.9V
M
HoTT
About 2 seconds after operating one of the controls
has ended, the display will again revert to display of
current trim positions of the four trim controls gener-
ated by the two sticks.
Position indicator
INC/DEC buttons CTL 5 and 6
