170

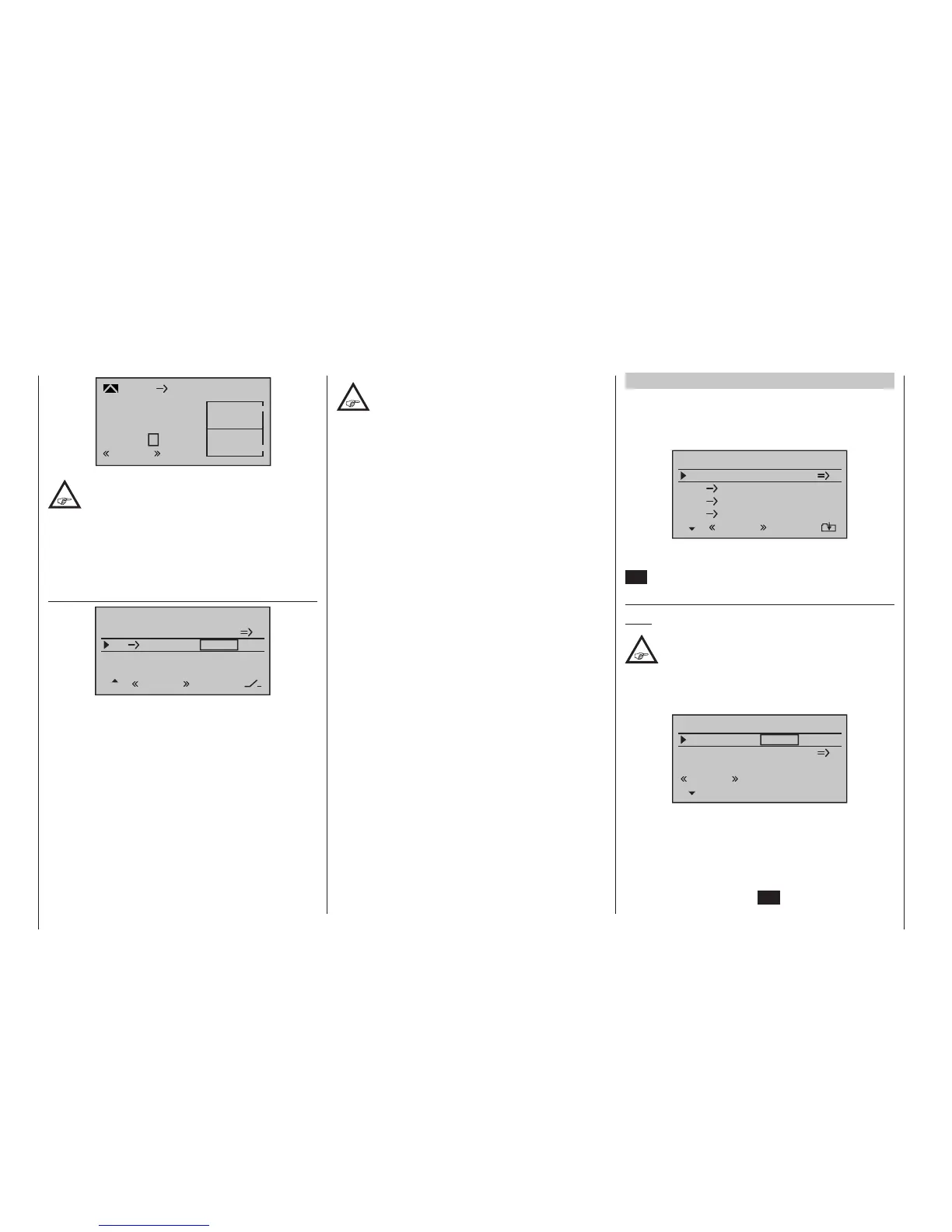

Program description - Wing mixers
Typically, this mixer is set so that the rudder is
deflected to the same side as the upward-
oriented aileron, and you will find that setting a
value of around 50 % is usually highly appropriate.
Settings are always made symmetrically relative to the
neutral point of the aileron stick.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset a changed value in
a given active (inverse video) field back to 0 %.
Model type: “1AIL 1FL”
If you have entered “1AIL 1FL” for the “Aileron/camber
flaps” line on the »Model type« menu, page 98, then
the “Wing mixers menu” on your transmitter will match
the following screen image:
Brake settings
AI
0%
Wing mixers
EL FL
0%
0%
–––
–––
RU
normal
FL EL
0%
0%
–––
From the first line on this display screen, you can
switch to the sub-menu with a brief tap on the centre
SET key of the right four-way button …
Brake settings
Note:
The “Brake settings” menu is switched “off” if:
“Motor on C1 forward / back” in the »Model
type« menu, page 98, AND the “Motor”
column of the »Phase settings« menu, page 148,
are set to “yes” for the currently active ight phase.
Switch the ight phase if required:
Elevat curve
Brake settings
Crow
normal
0%
FLAP
Appropriate to the model type selected, you can now
enter a suitable value in the “Crow” line to lower the
flap when you activate the brake control – which is typi-
cally the C1 stick.
To configure the setting, first position the brake control
in the brake position at full travel (i. e. its end-point).
Then, briefly tap the centre SET key of the right four-
Input
Output
Point
?
–100%
0%
0%
Brake
normal
Ele
Curve
off
normal
If required, i. e. if you have the feeling that you
will need to set pitch trim compensation when
the airbrakes are extended, you can program
an appropriate automatic mixer affecting the elevator at
this point.
For detailed instructions on setting a curve mixer,
please refer to the »Channel 1 curve« menu option
text beginning page 134.
AI RU (Aileron Rudder)
Brake settings
AI
0%
Wing mixers
–––
RU
normal
Here, you can set the degree to which the rudder
follows commands acting on ailerons. This is used
in particular in connection with aileron differential to
suppress adverse yaw and thus make it easier to fly
“clean” curves. You can of course still issue separate
commands to the rudder.
The adjustment range of ±150 % lets you set the di-
rection of deflection as appropriate. Optionally, this
mixer can be activated and deactivated with one of the
switches that is not self-restoring or a control switch so
the mo del can be controlled with only the ailerons or
rudder if desired.
