230
Program description - Pro trim | Helicopter models

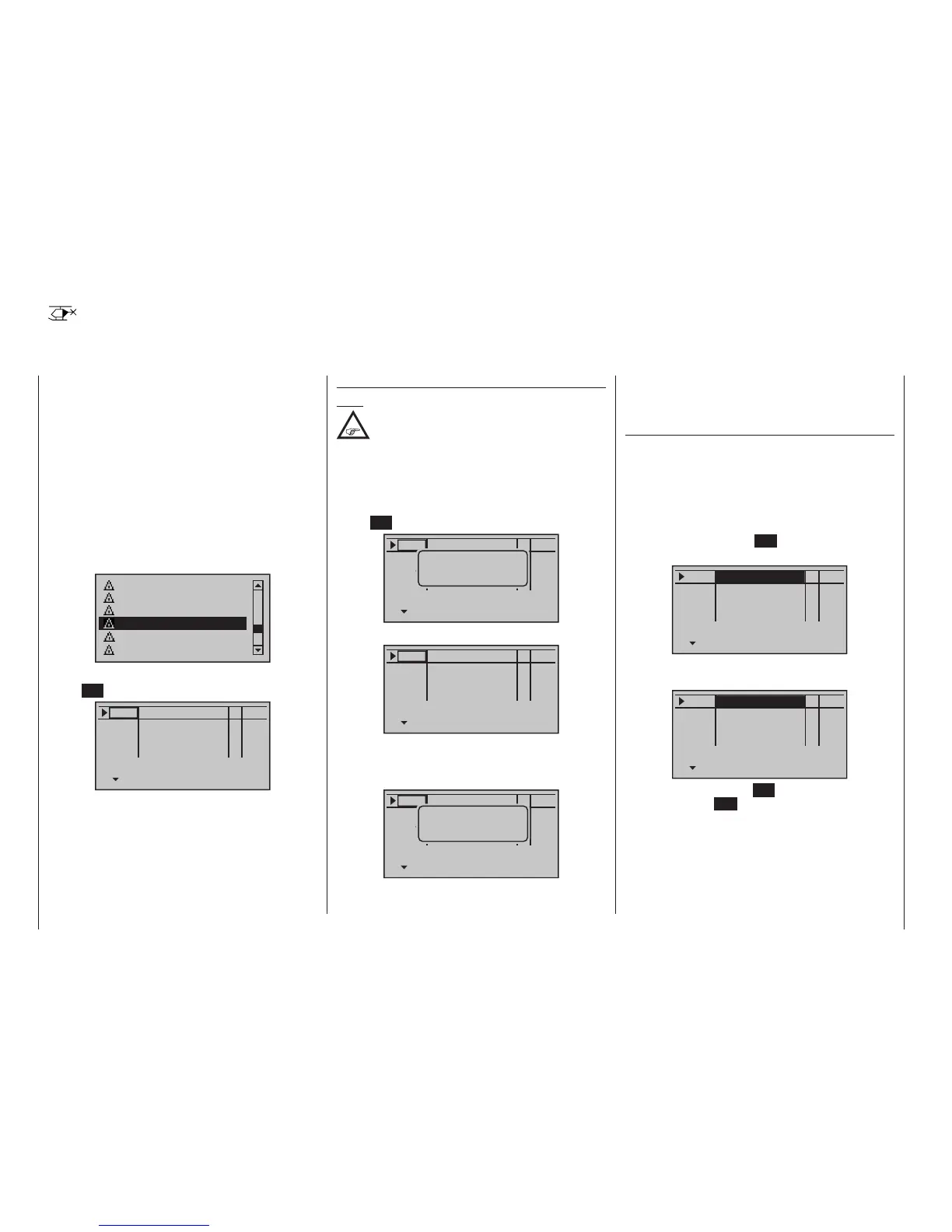

Pro trim
Pitch, throttle, tail-rotor, and C1 curve trimming
This option is available on both transmit-
ter types.
The
mc-16 HoTT and mc-20 HoTT
transmitter’s software has an integrated
function for additional trimming of 6-point curves; in
Heli programs »Channel 1 curve« page 137, and
»Helicopter mixer« page 184. These are intended
for “Pitch”, “C1 Throttle” and “C1 Tail” curves.
This feature, named »Pro trim« because of its func-
tional similarity to the Profi-Trim module for the mc-24
but only available on that transmitter as a re trofit op-
tion. Select this feature from the multi-function menu
with the selection keys of the left or right four-way
button …
Tx. output swap
Telemetry
Fail-safe adjust
Profi trim
Trim memory
Teacher / pupil
… then open this menu option with a brief tap on the
centre SET key of the right four-way button.
SEL
–––
Mixer
–––
–––
–––
None
None
None
None
PH
1
L
P
L
L
L
1
1
1
1. Column “Trim control”
Note:
Pay attention to potential double-assignments
when making trim control choices.
This menu’s first line is for assigning those transmitter
controls (from the available on the transmitter) which
appear most advantageous for this purpose.
To assign a transmitter control, use the selection keys
to navigate to the desired line then tap briefly on the
centre SET key of the right four-way button …
SEL
–––
Mixer
–––
–––
–––
None
None
None
None
PH
1
L
P
L
L
L
1
1
1
Move desired
control adj.
… then move the desired transmitter control:
SEL
Lv1
Mixer
–––
–––
–––
None
None
None
None
PH
1
L
P
L
L
L
1
1
1
Erase trim control
Select the transmitter control assignment in the appro-
priate line as already described, e. g.:
SEL
Lv1
Mixer
–––
–––
–––
None
None
None
None
PH
1
L
P
L
L
L
1
1
1
Move desired
control adj.
A tap, at the same time, on the or selection
keys of the right four-way button (CLEAR) will now
reset the field’s value back to “free”.
2. Column “Mixer“
This column contains a total of four Value fields, in
which you can select one of the mixers “Collective
pitch”, “Ch1 throttle” and “Ch1 tail” as well as
“Channel 1 curve” from a list, either individually or in
any combination.
To do this, use the selection keys on the left or right
four-way button to change to the desired value field.
Then briefly tap the centre SET key of the right four-
way button …
SEL
Lv1
Mixer
–––
–––
–––
None
None
None
PH
1
L
P
L
L
L
1
1
1
None
… and select the desired mixer with the selection keys
of the left or right four-way button, for example:
SEL
Lv1
Mixer
–––
–––
–––
None
None
None
PH
1
L
P
L
L
L
1
1
1
Pitch
Another tap on the centre SET key of the right four-
way button or the ESC key of the left four-way button
will conclude the entry. This procedure is the same for
the other lines.
A tap, at the same time, on the or selection
keys of the right four-way button (CLEAR) will reset a
field displayed in inverse video back to “None”.
mc
16 20
