26
Transmitter description - Face-side connections
GRAUBELE
#01
2:22h
Stp
Flt
«normal »
K78
0:00
0:00
5.5V
3.9V
M
HoTT
If the card has not previously been inserted, the trans-
mitter first creates a number of folders on it; this is
indicated in the transmitter’s base display by a card
symbol which slowly fills from left to right. The memory
card is ready for use as soon as this animation ceases.
You can remove the prepared memory card from the
transmitter when required, and insert it in a suitable
card reader. Connect the reader to your PC or laptop,
and copy the files – previously downloaded from the
Download page for your transmitter – into the appropri-
ate folder. Now remove the memory card from your
card reader and insert it in the transmitter once more.
Removing the memory card
Press the SD or SDHC card a bit further into the card
slot to release the slot’s latch then pull out the memory
card.
Data acquisition / storage
The storage of data on the SD card is coupled
to the flight timer. If this timer is started – when
a suitable memory card is inserted in the card
slot and a telemetry link to the receiver exists – data
acquisition is also started. Data acquisition will stop
again when the flight timer is stopped. The flight timer
is started and stopped as described in the section
»Timers (general)” on page 159.
The amount of data written on the memory card is
presented as a black bar graph (
) which grows from
left to right as data fills the memory card .

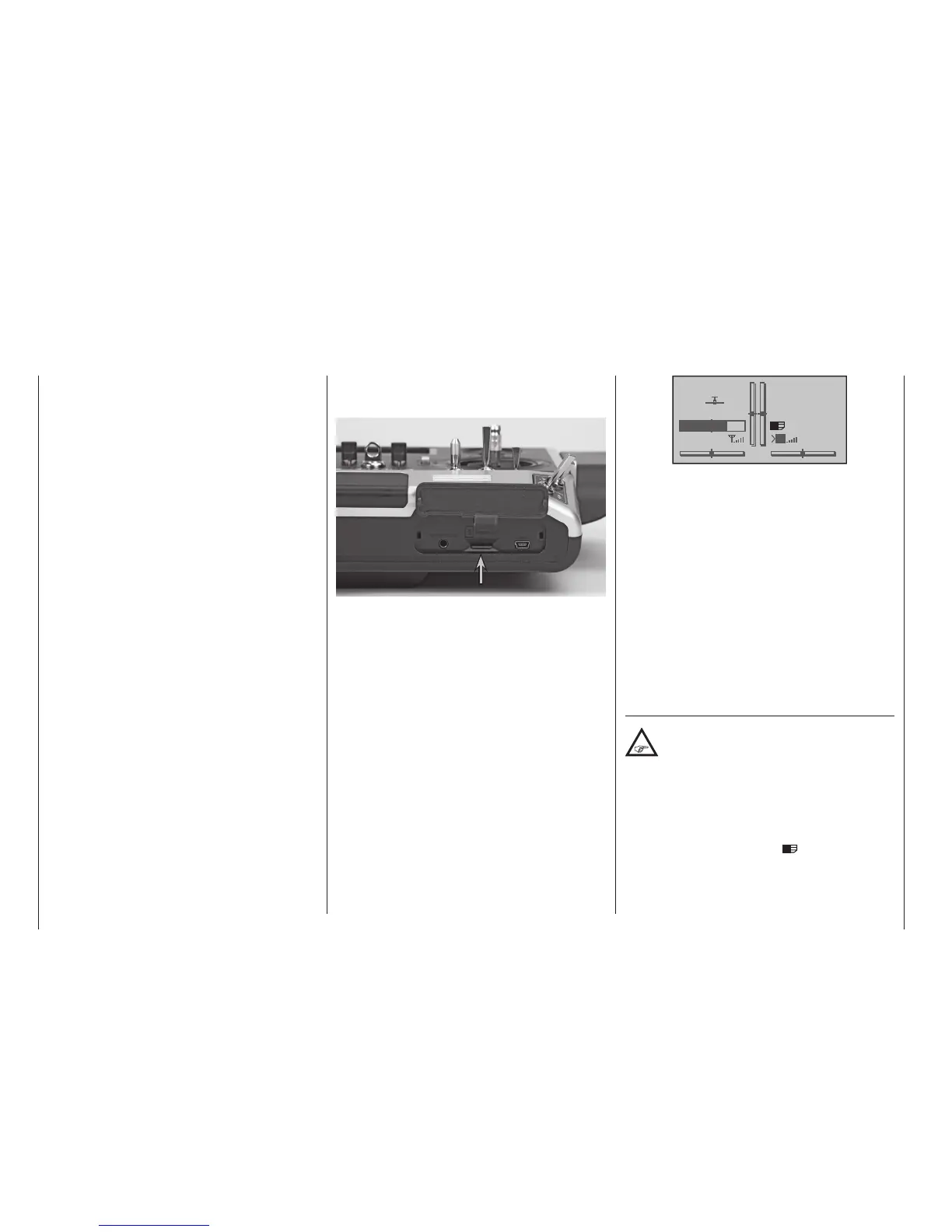

The transmitter’s card slot for type micro-SD and
micro-SDHC memory cards becomes accessible once
the right face-side cover has been turned away.
Although a memory card is supplied as standard, the
slot also accepts any standard commercial micro-SD
memory cards of up to 2 GB capacity and micro-
SDHC cards of up to 32 GB capacity. However, as a
manufacturer we recommend the use of memory cards
no larger than 4 GB as this is completely adequate for
all normal situations.
The type of memory card to be used in the transmitter
is that known in conjunction with digital cameras and
cell phones. It is to be pushed into the slot, contacts
up, until it latches, see photos above. Once the mem-
ory card has been inserted, the transmitter’s cover flap
can be closed again.
If the standard memory card is inserted – or another
card which has already been inserted in the transmit-
ter at least once – then the card is immediately ready
for use when the transmitter is switched on. When the
transmitter is switched on again after inserting such
a card, the stylised memory card icon appears in the
base display:
Card slot
micro SD and micro SDHC
The volume of signals and voice output sent to the
headset can be adjusted individually in the lines “Voice
volume”, “Vario volume”, and “Beeps volume” of the
»General basic settings« menu, page266.
