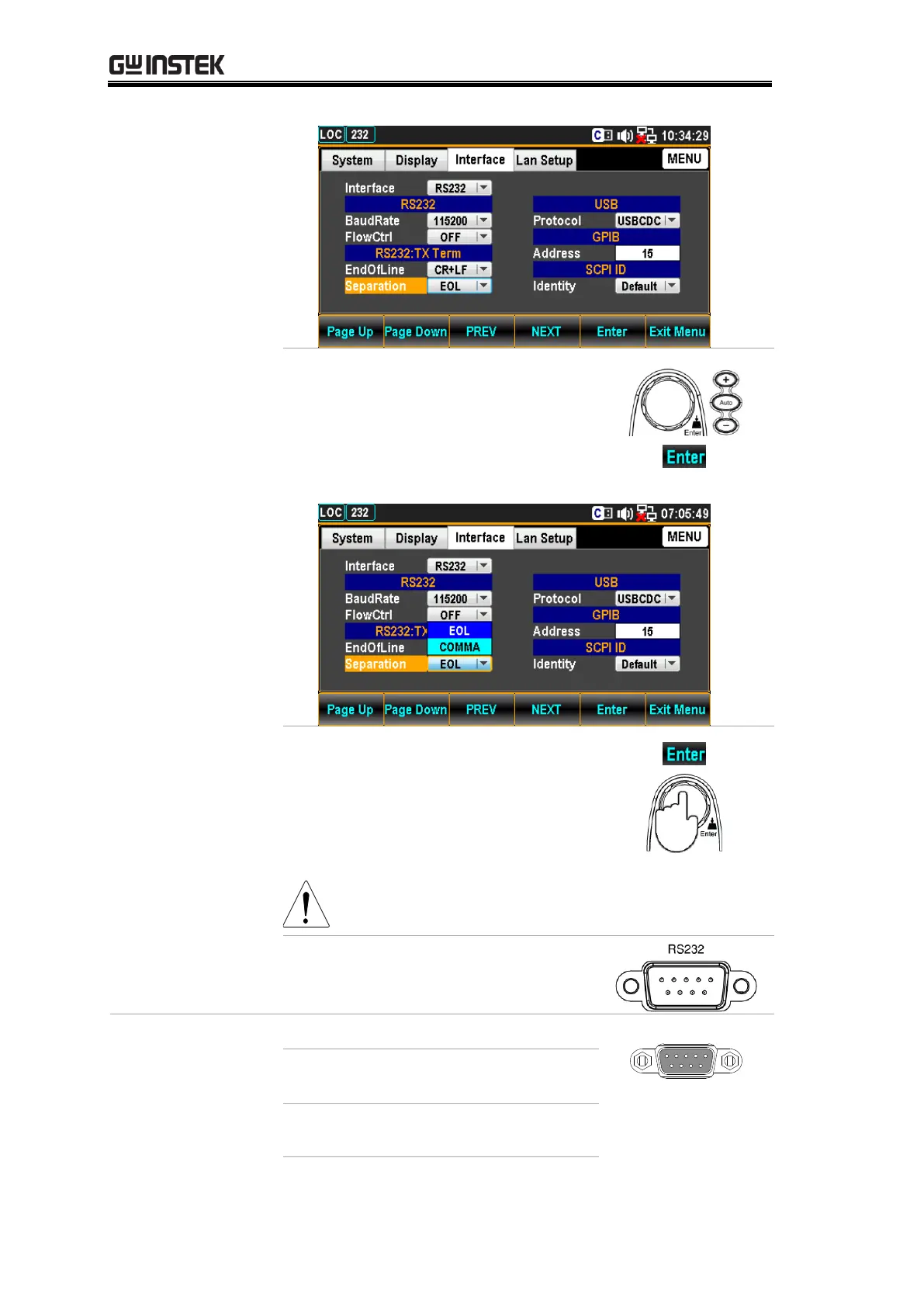

14. Press the F5 (Enter) key or
Knob key followed by scrolling
Knob key or pressing +/- keys
to land on the desired RS232:
TX Term - Separation option.
15. Press the F5 (Enter) key or
Knob key again to confirm the
desired RS232: TX Term
Separation option.
NOTE
GPIB, USBTMC and LAN are fixed
with only COMMA option.
16. Connect the RS232 cable to the
rear panel terminal.
RS232 Pin
Assignment
Pin No.
Input/Output
Description
1
2 34 5
6789
1
------
No
Connection
2
Input
Receive Data
(RxD)
