GW Instek GPT-9500 Series User Manual

OPERATION
123

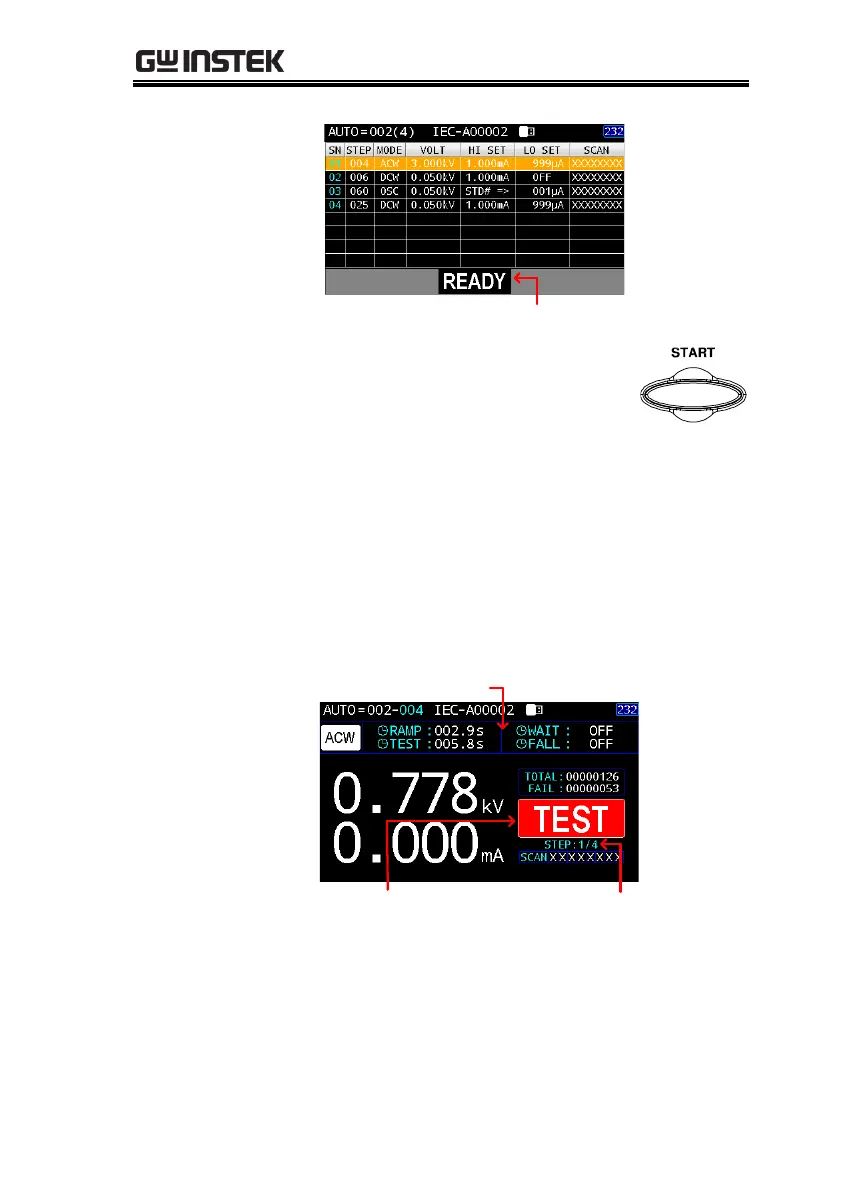

AUTO Page View
Display
READY status
2. Press the START button when the
tester is in the READY status. The
AUTO test starts automatically and
the display changes to each
MANU step in sequence.
3. Each MANU step will start by showing the
ongoing RAMP time followed by the ongoing
TEST time and the ongoing WAIT time and
finally the ongoing FALL time. All steps will be
tested in sequence until the last test has finished
or the test is stopped.
Normal AUTO
Display
Several ongoing durations
TEST is ongoing
The step being underway
