GPT-9500 Series User Manual
162

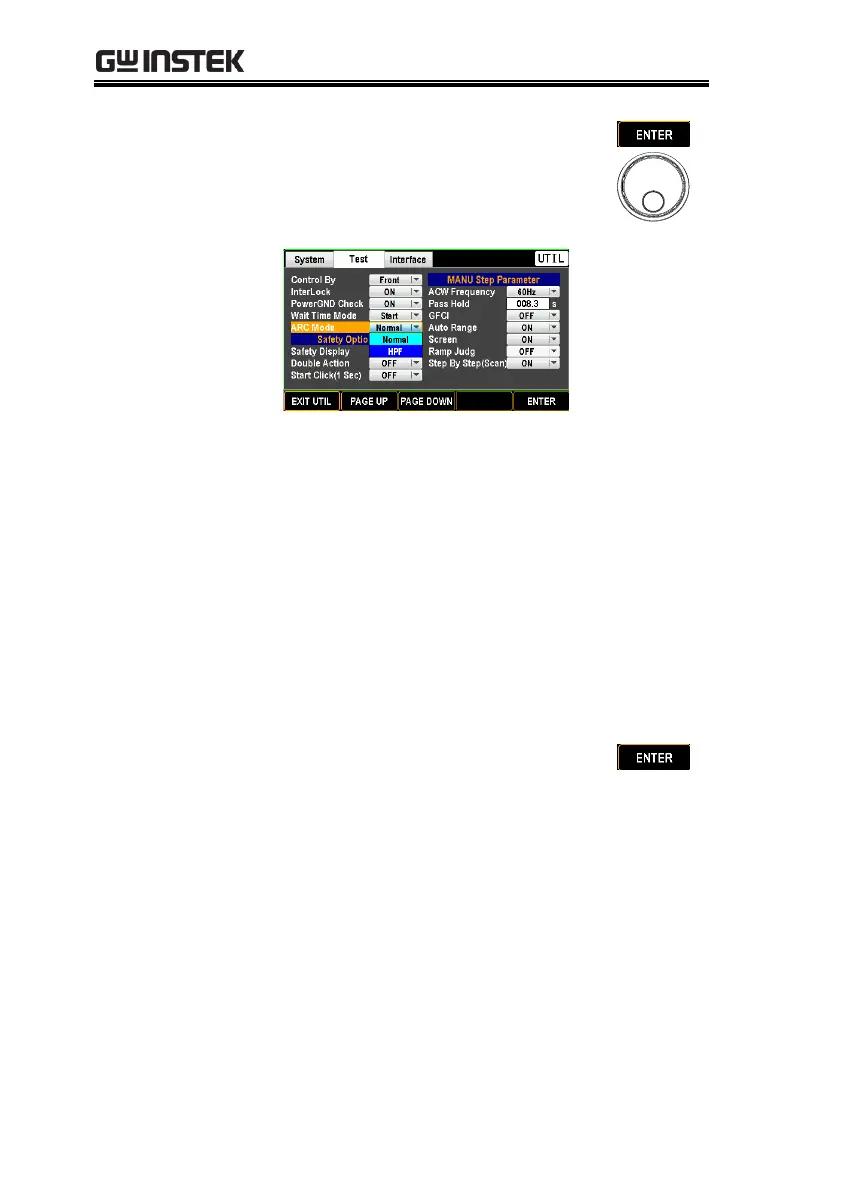

3. Press ENTER soft-key to enter the
ARC Mode field. Use scroll wheel to
select a preferred option.
ARC Mode
Normal, HPF
 Normal
When ARC detection is activated for
ARW or DCW test, the ARC Mode
further allows user to set up in
details. Normal indicates both High
and Low frequency signals would
be allowed to pass through.
 HPF
Oppositely, HPF (High Pass
Filter) only permits signals with a
higher frequency for certain
applications when necessary.
4. Press the ENTER soft-key to
confirm the setting.
