GW Instek GPT-9500 Series User Manual

GPT-9500 Series User Manual
192

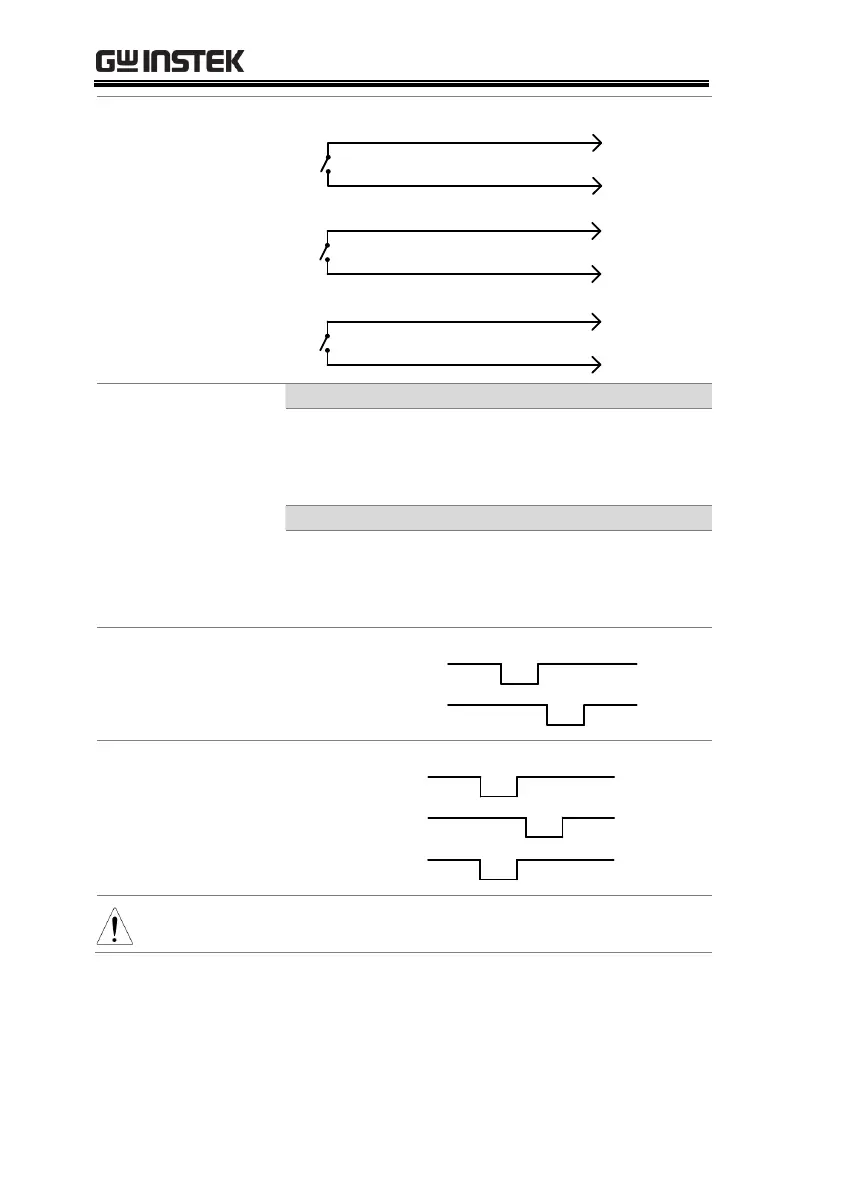

Output Connection
PIN 1 UnderTEST_OUTPUT
PIN 4 UnderTEST_OUTPUT_COM
PIN 6 PASS_OUTPUT
PIN 7 PASS_OUTPUT_COM
PIN 8 FAIL_OUTPUT
PIN 9 FAIL_OUTPUT_COM
Signal Properties
Input Signals
High level input voltage
5V ~ 32V
Low level input voltage
0V ~ 1V
Low level input current
Maximum of -5mA
Input period
Minimum of 1ms
Output Signals
Output Type
Relay form A
Output Rated Voltage
30VDC
Maximum output
current
0.5A
Input Stop and Input
Start Timing
INPUT_STOP
INPUT_START
Output Timing
PASS
FAIL
UnderTEST
Note
Output is able to be deployed by programming.
