5. Press the MESSAGE soft-key to
enter the Message setting, which will
be shown when PA step endures.

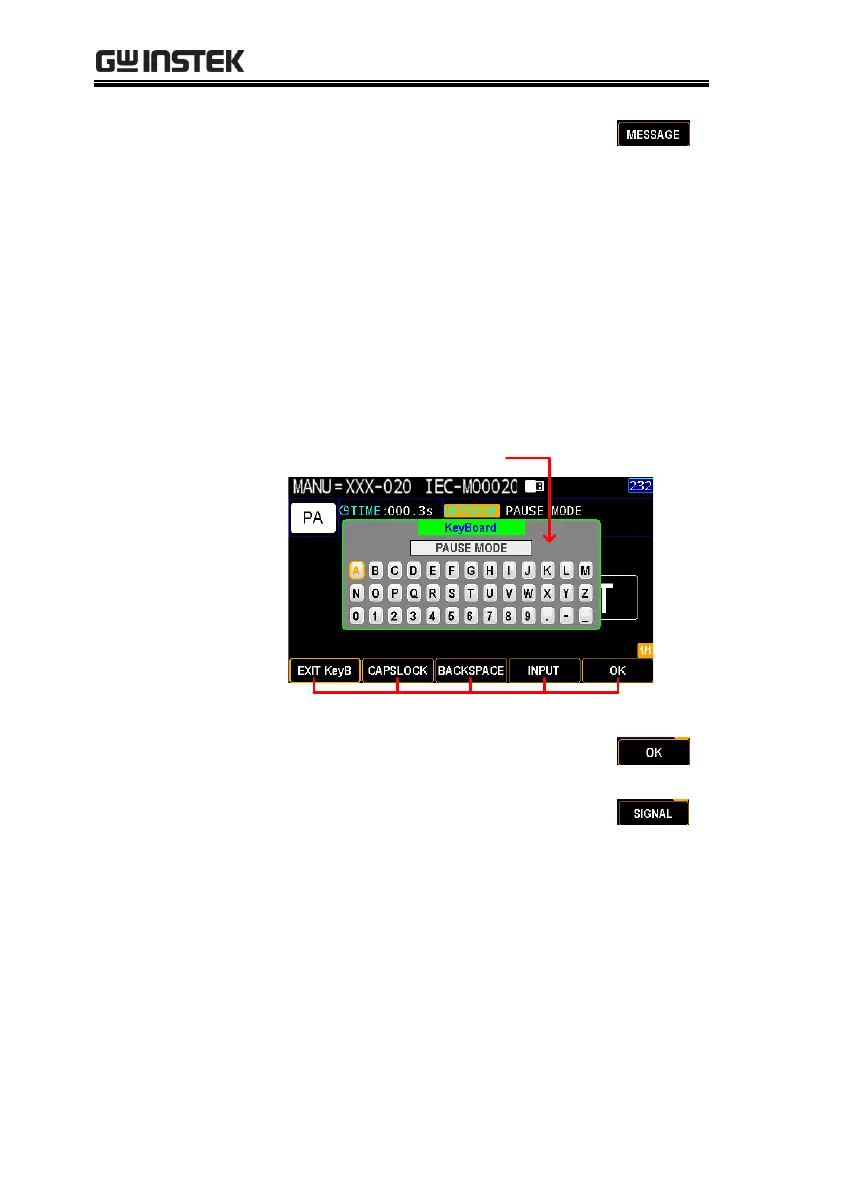

6. The on-screen keyboard is shown where user
can input a preferred Message for PA. Use the
scroll wheel to move among each character and
press INPUT soft-key to input character. Press
CAPSLOCK soft-key to toggle between high
and low case. Press BACKSPACE soft-key to
backspace the inputted word. Press EXIT KeyB
to exit from the KeyBoard and discard setting.
On-screen Keyboard
Functional Soft-keys
7. Press the OK soft-key to confirm.
8. Press the SIGNAL soft-key
followed by using the scroll wheel
to turn ON/OFF Signal function,
which outputs signal information
including waveform of PA step to
the connected external instrument.
SIGNAL
ON, OFF
