Chapter 4 Element Management System (EMS) Cross Connections
© 2011 Harmonic Inc. 138 ProView 7000 v.2.4, Rev. A
4.6.2 Input to Decoder Channel Connection
The EMS allows defining an output decoding channel. The channel supports up to two
services. The Decoding Channel allows configuring the service properties such as the input
port, decoder ID, decoder card number and channel number.
To define a new decoding channel:
1. From the Input box, drag the icon of the wanted program into the icon of the decoding
channel in the Output box.

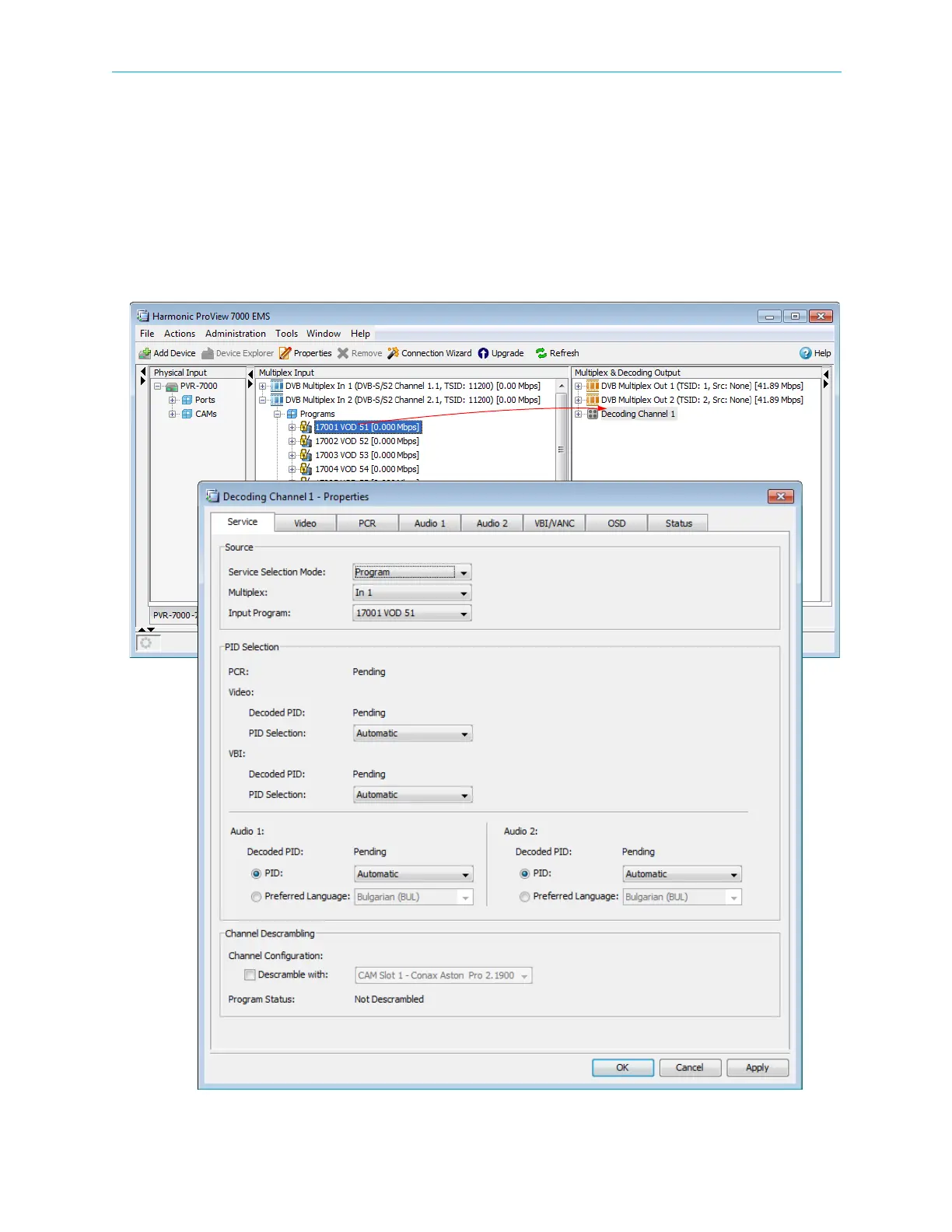

Figure 4–52: Set Decoder Channel
