Chapter 4 Element Management System (EMS) Element Properties Configuration
© 2011 Harmonic Inc. 88 ProView 7000 v.2.4, Rev. A

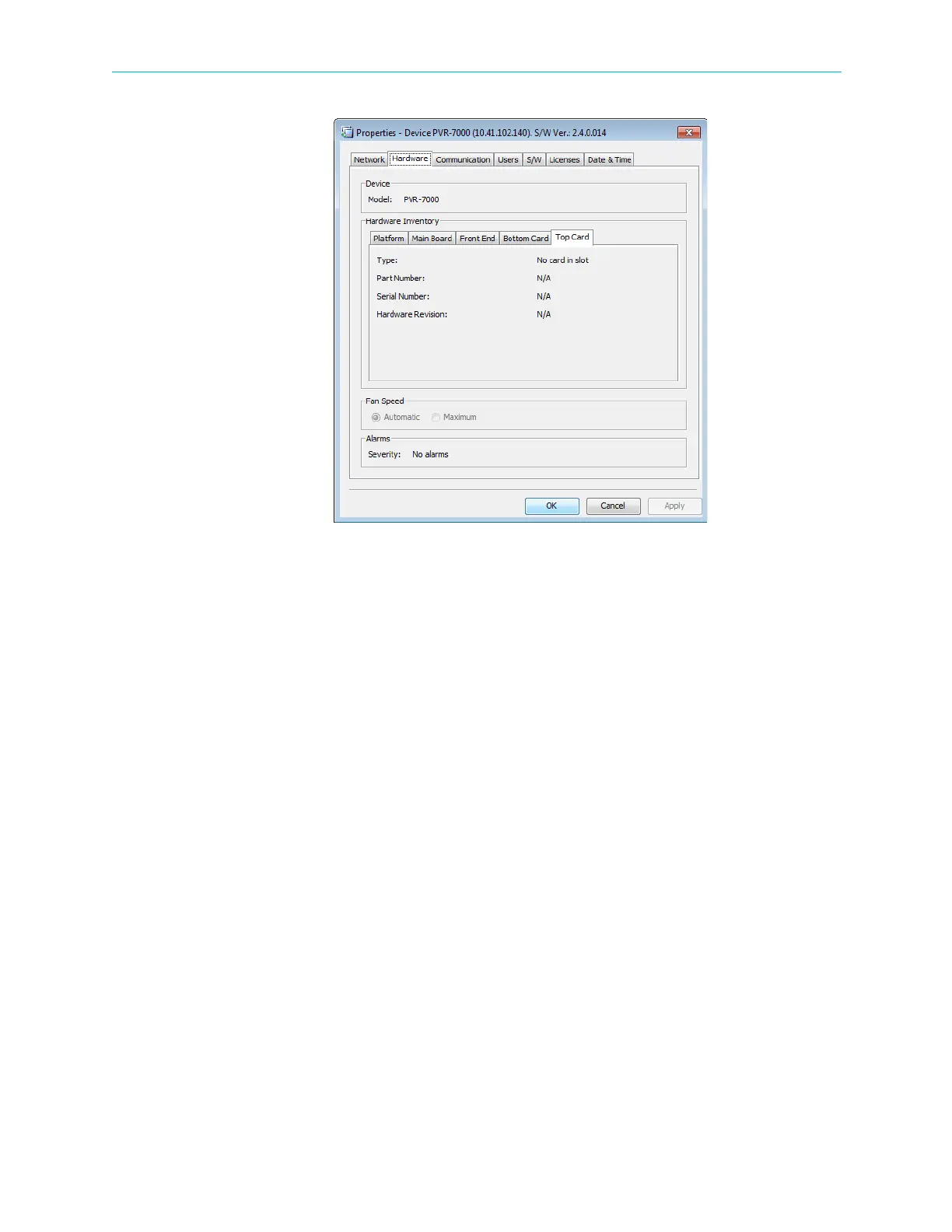

Figure 4–18: Device properties dialog – Hardware – Top Card tab
Alarms Box
The Alarms box displays the highest Alarm severity.
4.5.1.3 Device Communication Properties
The Communications properties tab provides the EMS user the ability to manage the
following parameters related to the ProView
7000 unit communication:
Traps Destination Parameters Box
Traps are SNMP notifications sent by the unit to a predefined address, without user
intervention. The Traps Destination Configuration section allows setting up the trap
destination parameters.
The trap destination parameters consist of the destination IP address, the UDP port number,
the destination description and the SNMP community string. Up to 5 trap destinations can be
defined.
