Chapter 4 Element Management System (EMS) Element Properties Configuration
© 2011 Harmonic Inc. 129 ProView 7000 v.2.4, Rev. A
❑ Gateway – The default is 127.127.0.1.
❑ MAC Address – Each port has its own MAC Address. They are factory set and cannot be
changed.
■ Override Source IP – Enables the user to send a virtual IP address.
■ Connectivity – Displays the address of the GbE socket related to the port.

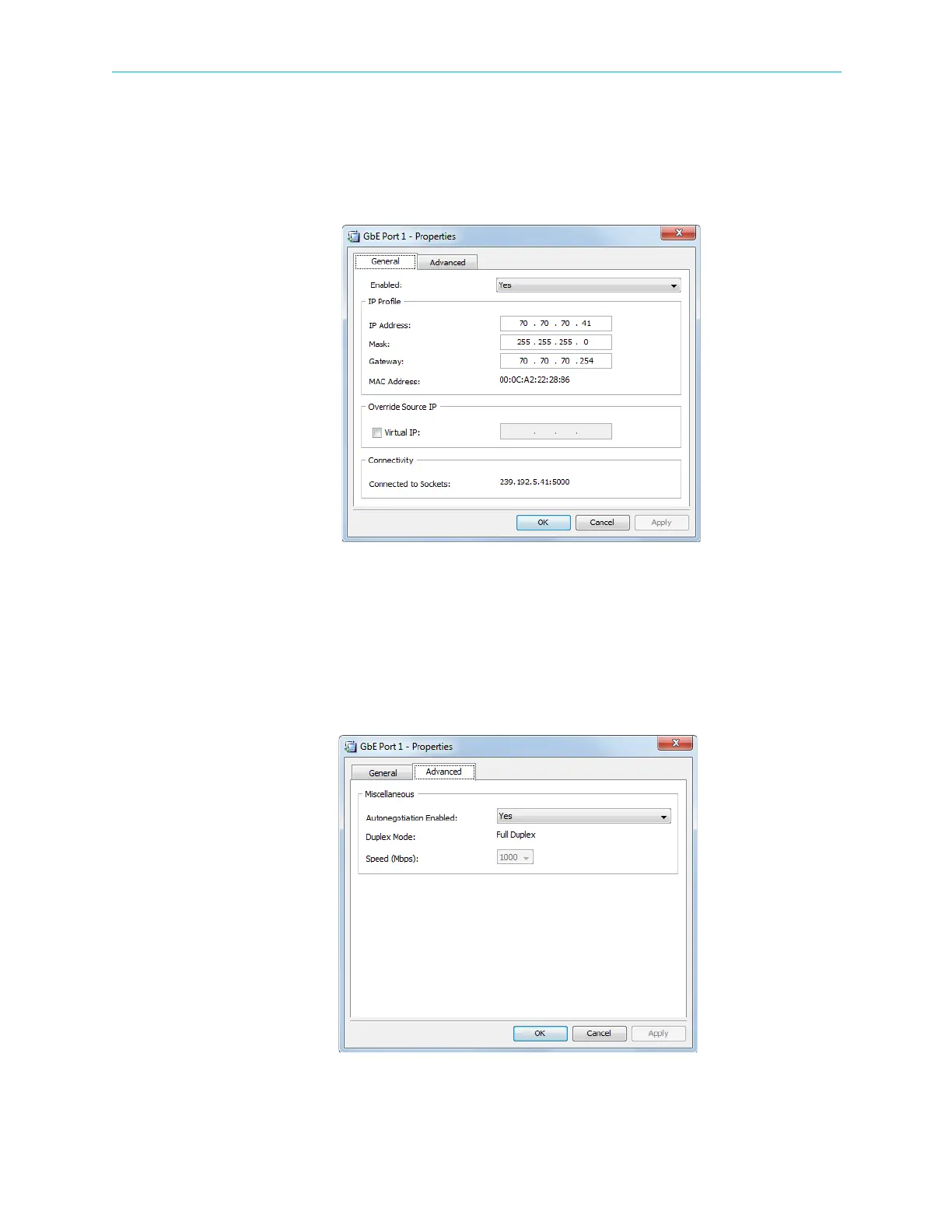

Figure 4–44: GbE Port Properties (Output mode) dialog- General tab
GbE Port Advanced properties tab:
■ Auto negotiation Enabled – You can enable and disable Autonegotiation. The default is
Yes.
■ Duplex Mode – You cannot change the Duplex Mode. It is fixed at Full Duplex.
■ Speed – You can configure the PHY speed when Autonegotiation is disabled. The default is
1000.
Figure 4–45: GbE Port Properties (Output mode) dialog - Advanced tab
