4.4.2.3 Input Unreferenced PIDs Management

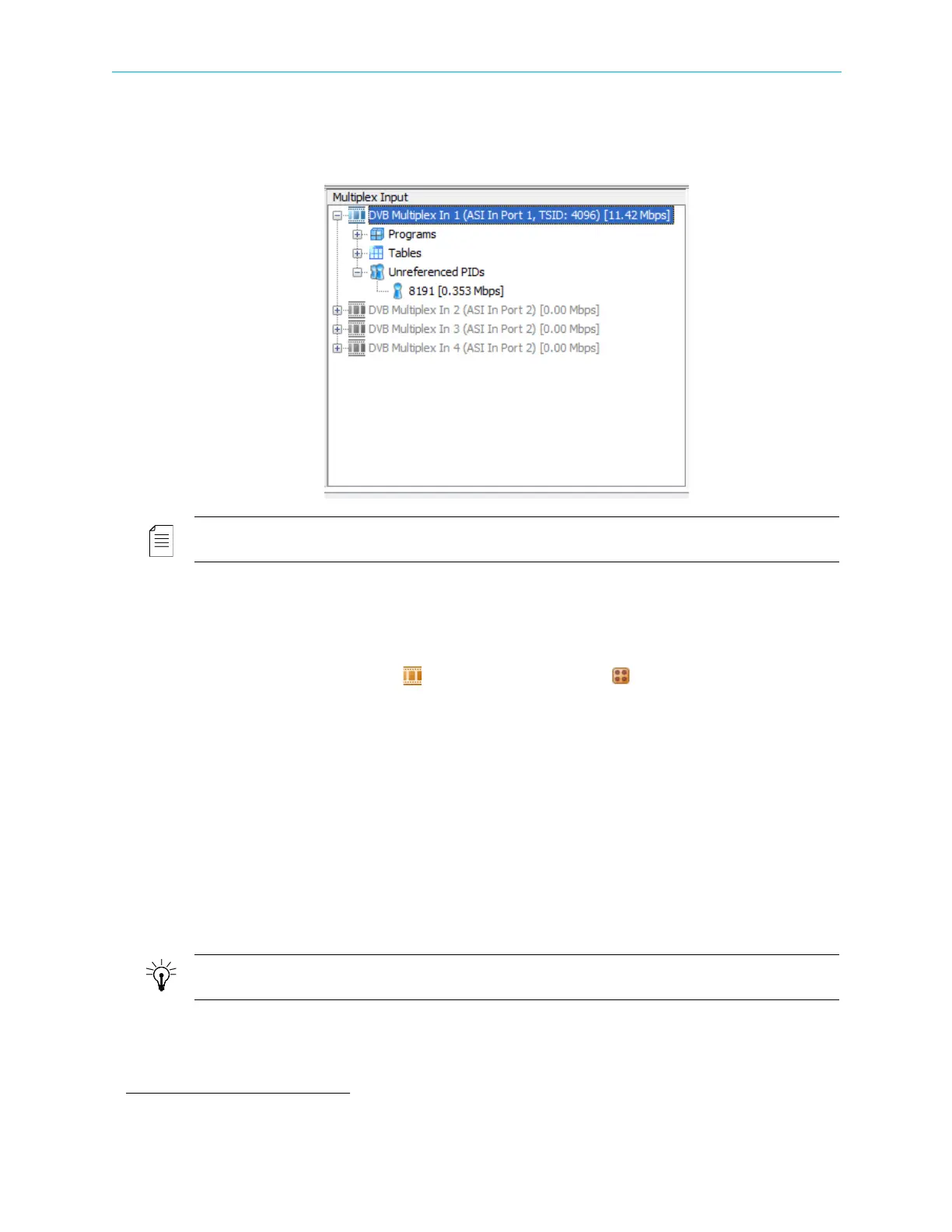

Click the Unreferenced PIDs branch in the Multiplex Input box to display all the PIDs related to
the multiplex input that are not referred to a specific program or table.
NOTE: The properties of the input unreferenced PIDs in the multiplexed input stream is detailed in
4.5.3.6 Input Unreferenced PID Properties.
4.4.3 Multiplex & Decoding Output Box
The Multiplex & Decoding Output box of the Device Explorer tab presents a hierarchical tree-
structure of the decoded and multiplex outputs of the ProView
7000, comprises two branch
types; multiplexing branches ( ) and the decoding branch ( ).
The multiplexing branch provides monitoring and configuring options for the features of
stream and each element in the branch; Programs, Tables and unreferenced PIDs related to
the multiplex output. For details, refer to 4.4.3.2 Multiplex Output Programs Management
(programs), 4.4.3.3 Multiplex Output Tables Management (tables), 4.4.3.4 Multiplex Output
Unreferenced PIDs Management (PIDs).
The decoding branch provides monitoring and configuring options for the features of each
element in the branch. For details, see 4.6 Cross Connections.
Transport streams can be routed as they are to the output ports (pass-through). For details,
see 4.4.3.6 Pass Through TS Routing.
The ProView 7000 supports up to four multiplex outputs.
1
TIP: Creation of multiplex and decoded output streams is detailed in 4.6 Cross Connections.
1. A license is required for more than one multiplex output.
