4.4.3.3 Multiplex Output Tables Management

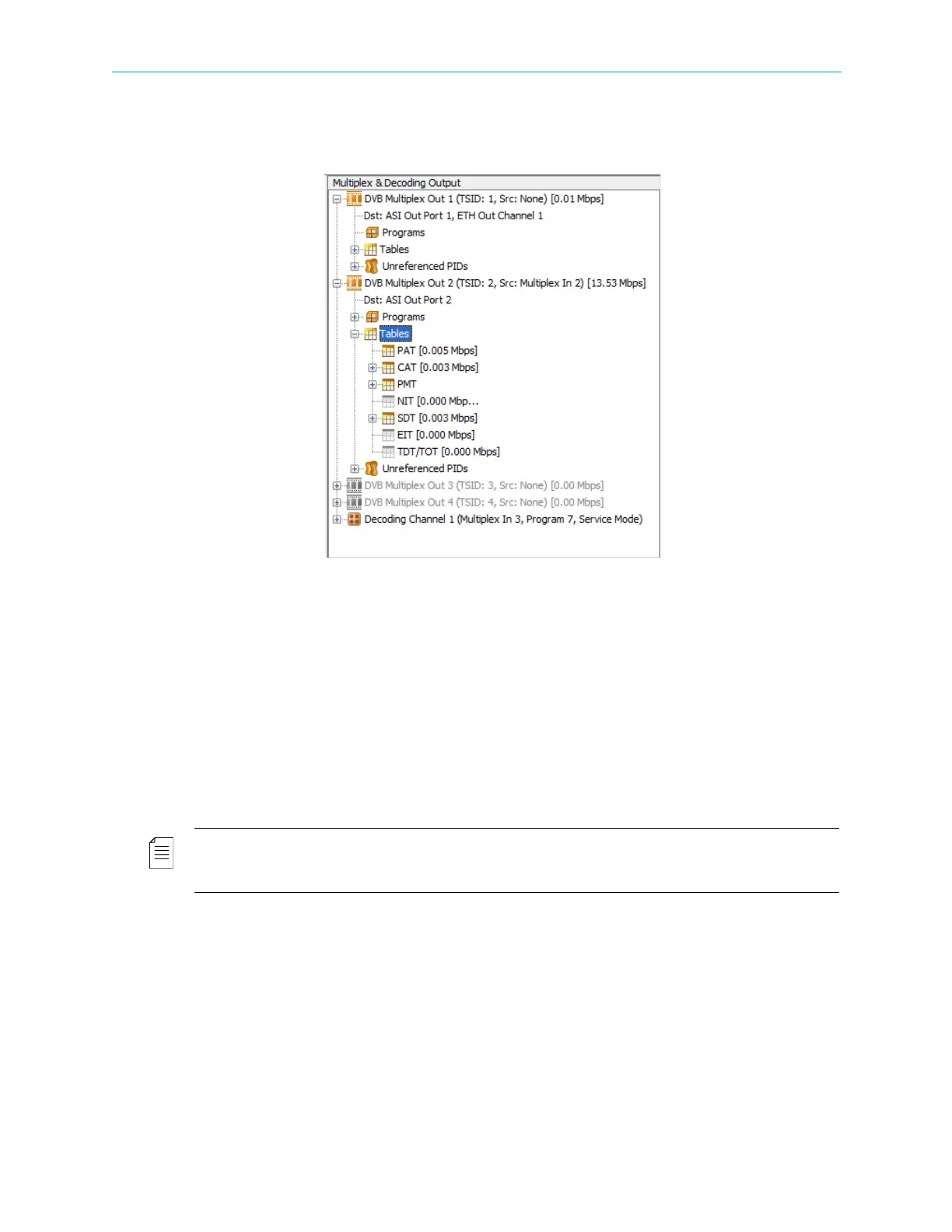

Click a Tables branch in the Multiplex & Decoding Output box to display all the tables related
to the multiplex output and the type of information provided by the table.
The Output Tables branch provides access to the following MPEG PSI and DVB PSI/SI tables
related to the multiplex output stream:
■ The Program Association Table (PAT) for the stream
■ The Conditional Access Table (CAT) and the specific Entitlement Management Messages
(EMM) included in the CAT
■ The specific Program Map Tables (PMTs) for each multiplex program
■ The Network Information Table (NIT) – passed from the input
■ The specific Service Description Tables (SDTs)
■ The Event Information Table (EIT) – passed from the input
■ The Time and Date Table (TDT/TOT) associated with the stream – passed from the input
NOTE: The displayed tables are managed by the defined stream type (MPEG or DVB).
The property of the various output tables in the multiplex output stream is detailed in 4.5.4.5 Output
Tables Properties.
