Harmonic ProView 7000 - Figure 4-14: Device Properties Dialog - Hardware - Platform Tab

Chapter 4 Element Management System (EMS) Element Properties Configuration
© 2011 Harmonic Inc. 84 ProView 7000 v.2.4, Rev. A
Platform
The Platform properties tab displays the following information on the ProView 7000
platform:
■ Part number
■ Platform serial number
■ Hardware Revision

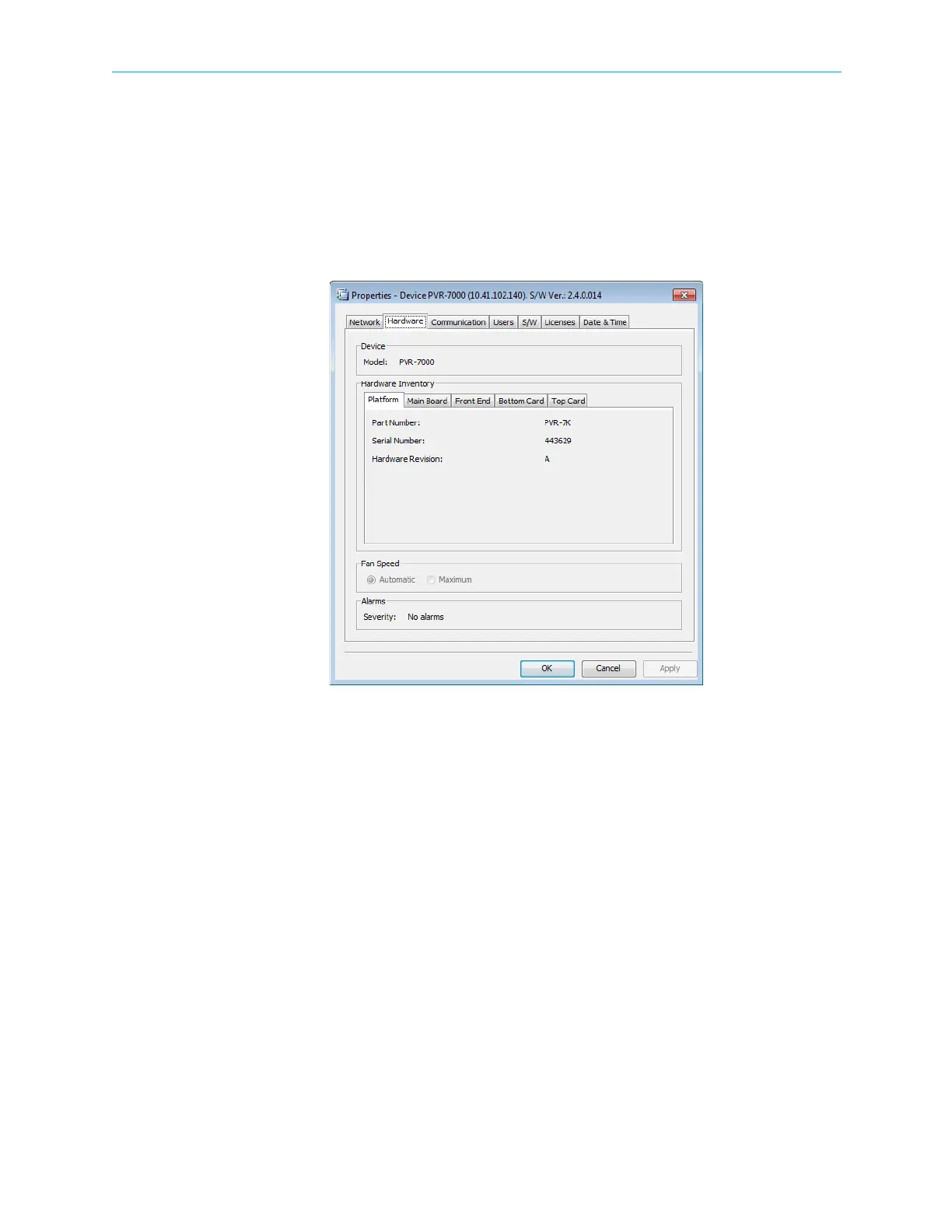

Figure 4–14: Device properties dialog – Hardware – Platform tab
Main Board
The Main Board Properties tab displays the following ProView 7000 main board parameters:
■ Main Board Serial number
■ Software version number
■ Main Board part number
■ Hardware Revision information
■ Main Board FPGA version number
■ Auxiliary FPGA version number
■ Remote sensor 1 and 2 temperature (in °C)
■ Internal sensor temperature (in °C)
■ Fan 1, 2, 3 and 4 speed (in rpm)
