The GbE Port Properties dialog comprises of a General and an Advanced tab.
GbE Port General properties tab:
■ Enabled – You can enable either or both GbE ports. If both ports are enabled then only one
port is active while the other one is in standby mode, by default Port
1 is active and Port 2
is on Stand
by. The port on Stand By does not pass data. When the port is enabled and no
link is detected, the device reports a link down alarm. Disable the port to mask this alarm.
The default is Disabled.
■ Redundancy Mode – Set one port as the active one and set the others to standby.
■ IP Profile – Enables you to configure the following:
❑ IP Address – Each port must have a different IP Address. The default is 127.127.0.X,
where X is the port number.
❑ Mask – The IP mask. The default is 255.255.255.0.
❑ MAC Address – Each port has its own MAC Address. They are factory set and cannot be
changed.

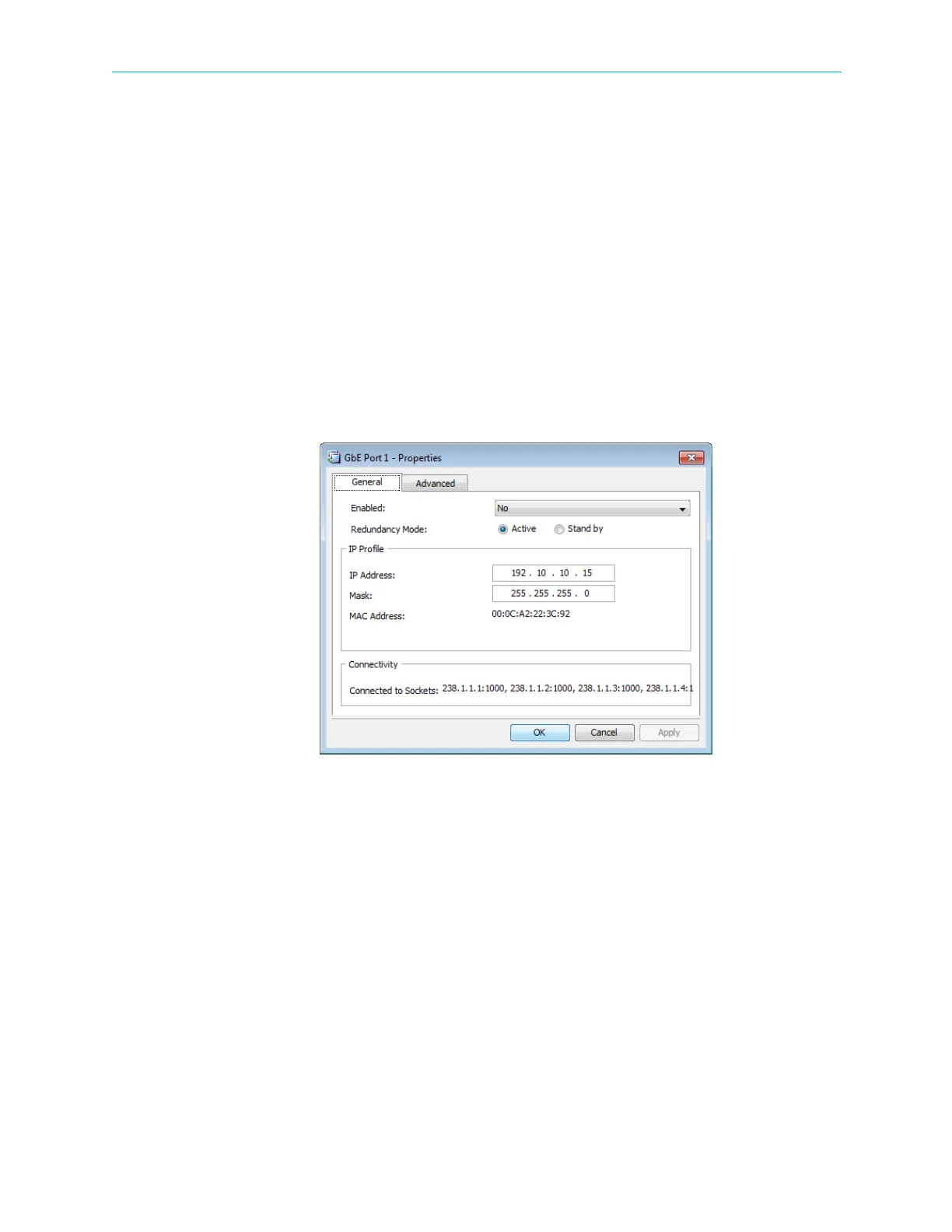

Figure 4–25: GbE Port Properties (Input mode) dialog - General tab
GbE Port Advanced properties tab:
■ Autonegotiation Enabled – You can enable and disable Autonegotiation. The default is Yes.
■ Duplex Mode – You cannot change the Duplex Mode. It is fixed at Full Duplex.
■ Speed – You can configure the PHY speed when Autonegotiation is disabled. The default is
1000.
