Chapter 4 Element Management System (EMS) Cross Connections
© 2011 Harmonic Inc. 140 ProView 7000 v.2.4, Rev. A
3. Click OK.

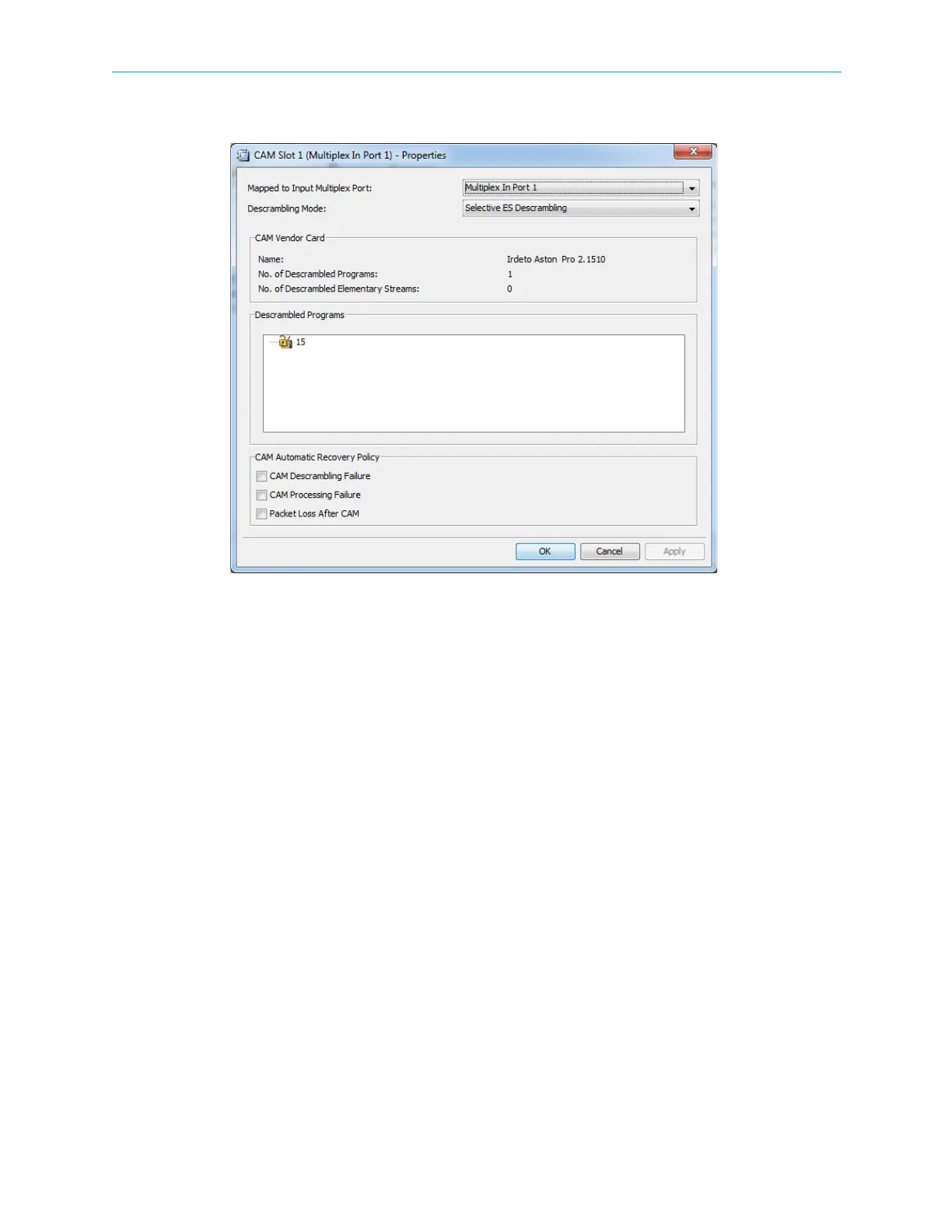

Figure 4–53: CAM Slot properties
4. To configure all ESs and all ECMs, select Full descrambling under Descrambling Mode.
In Selective ES Descrambling mode only ESs that are scrambled with a CAS ID supported
by the CAM, are descrambled.
Descrambling a Cross Connected Program
To allocate a CAM slot to a scrambled cross-connected program:
1. Cross connect an input program to the output multiplex port (see 4.6.1.2 Program Cross
Connection).
Check the Descrambling with checkbox in the Dynamic Program Connection
Configuration dailog and select the CAM slot for the cross-connected program.
2. Click Create to confirm the program cross-connection.
Descrambling a Decoded Program
To allocate a CAM slot to a scrambled decoded program:
1. Cross connect an input program to the decoder (see 4.6.2 Input to Decoder Channel
Connection).
2. Check the Descrambling with checkbox on the Service tab in the Decoding Channel
Properties dialog.
3. Select the CAM slot for the service.
4. Click Create to confirm the program cross-connection.
