■ Service – displays the PID of the following decoded elementry streams:
❑ Video
❑ PCR
❑ Audio 1 and 2
❑ VBI
❑ Subtitling

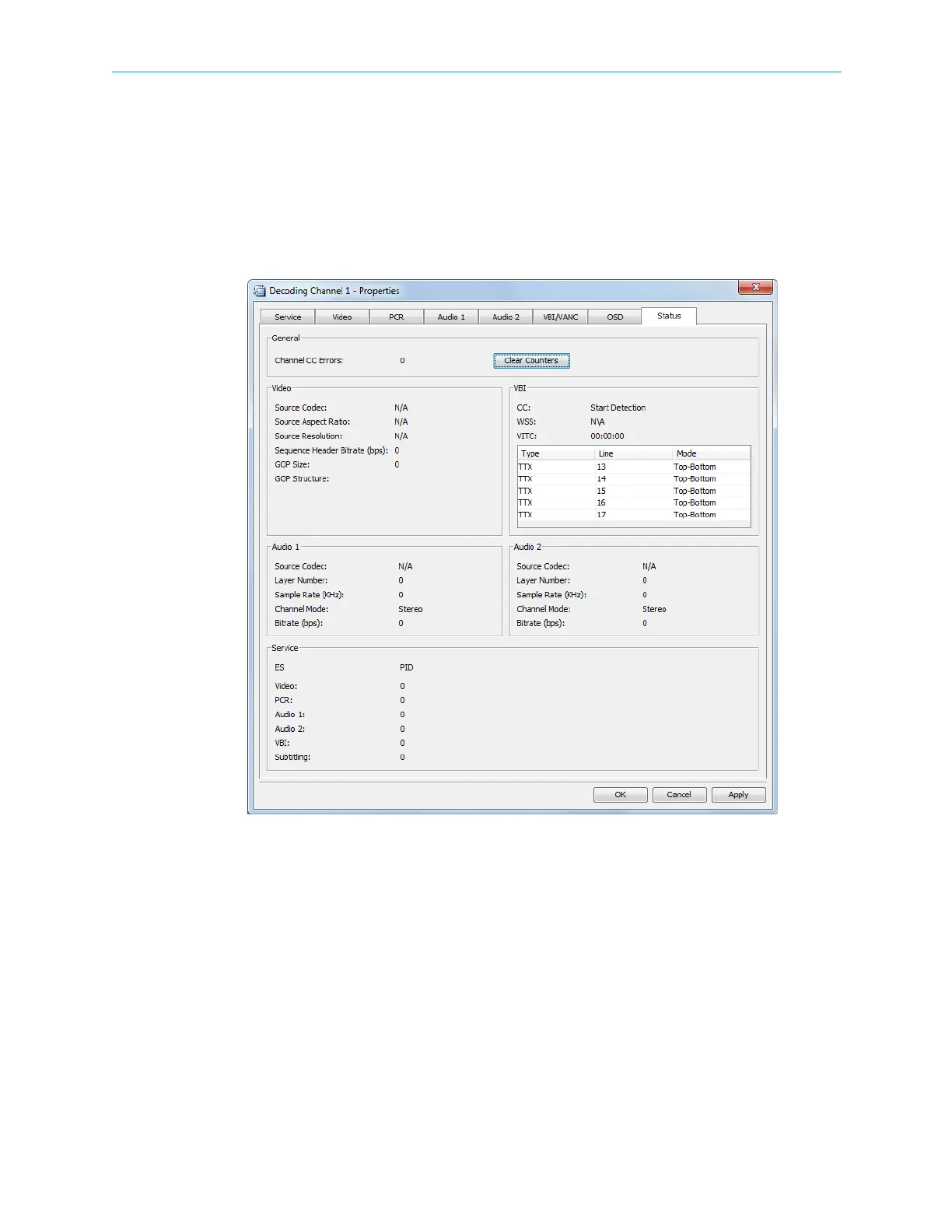

Figure 4–43: Decoding Channel Properties - Status tab
4.5.5 Physical Output Interface Properties
The Physical Output box of the Device Explorer tab presents a hierarchical tree-structure of
the ProView
7000 physical outputs.
The Physical Output tree features two main branches:
■ Output Ports, consisting of DVB-ASI Output ports (detailed in 4.5.5.1 ASI Output Port
Properties) and GbE Interfaces, divided into GbE Port (detailed in GbE Port Properties
(Output Mode)) and GbE Socket (detailed in GbE Socket Properties (Output Mode)).
■ Decoder, which displays the decoder output interfaces. See 4.5.5.3 HDMI and DVI Output
to configure the HDMI port.
