4.5.4.5 Output Tables Properties
The Multiplex and Decoding Output box on the Device Explorer tab provides managing access
to the DVB PSI/SI related tables provided in the multiplex output stream.
These tables include:
■ Program Association Table (PAT)
■ Program Mapping Table (PMT)
■ Conditional Access Table (CAT)
■ Service Description Table (SDT)
■ Network Information Table (NIT)
■ Event Information Table (EIT)
■ Time and Date Table (TDT/TOT)
To display the Output Tables properties:
1. Select the required Output Table icon from the Multiplex and Decoding Output box on
the Device Explorer tab.
2. Click Properties on the EMS toolbar.

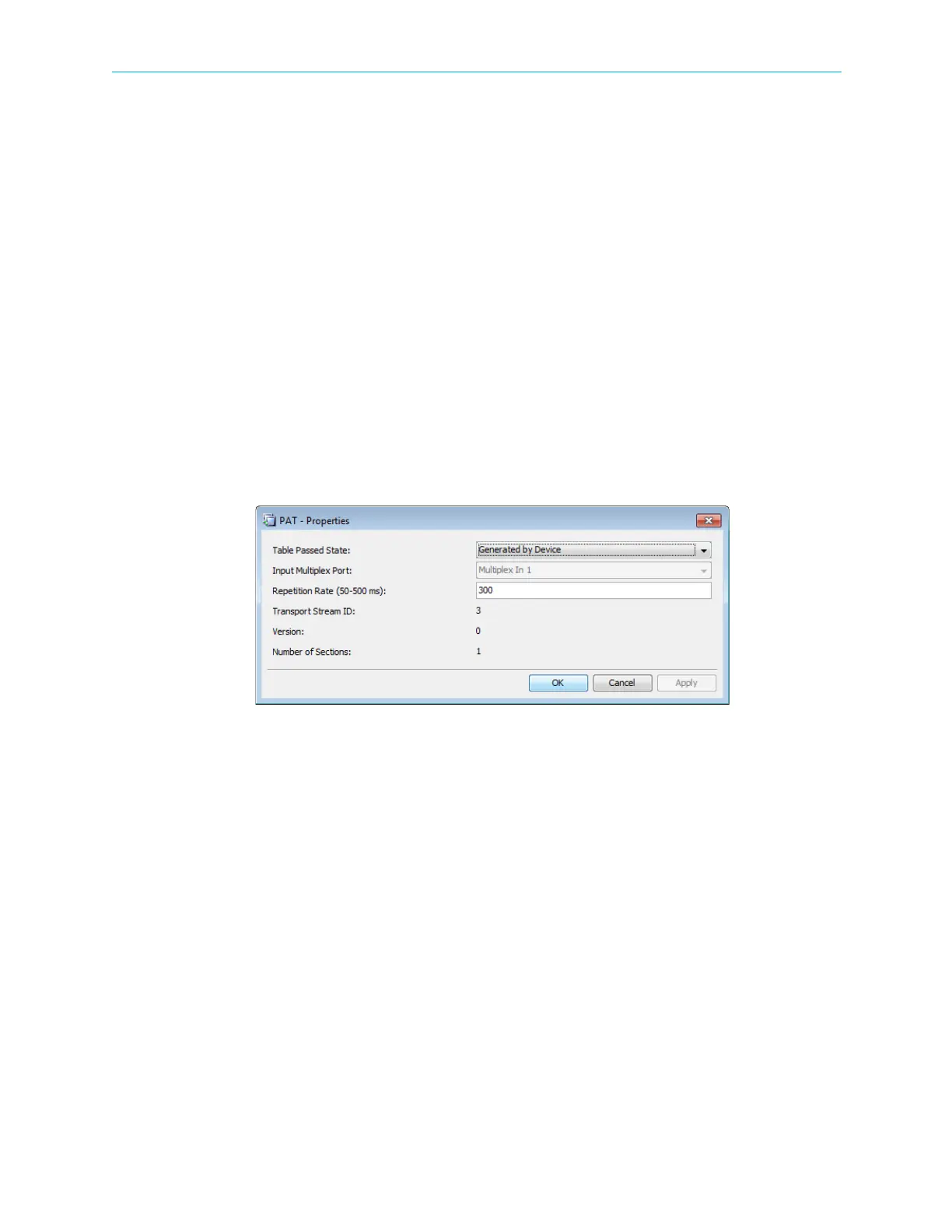

The information provided for each of the output tables includes the following:
■ Table Passed State – Enables selecting the table source for the multiplex output. Options:
❑ Generated by the Device
❑ Passed from the Input
❑ Not Passed
■ Repetition Rate – Enables setting up the table transmission repetition rate (in msec).
■ Transport Stream ID – Displays the identification of the transport stream for the table.
■ Version – Displays the table version.
■ Number of Sections – Displays the number of sections used to construct the table.
