Chapter 4 Element Management System (EMS) Element Properties Configuration
© 2011 Harmonic Inc. 115 ProView 7000 v.2.4, Rev. A
The PMT
The Program Mapping Table (PMT) consists of a group of programs that can independently be
enabled to the multiplex output.

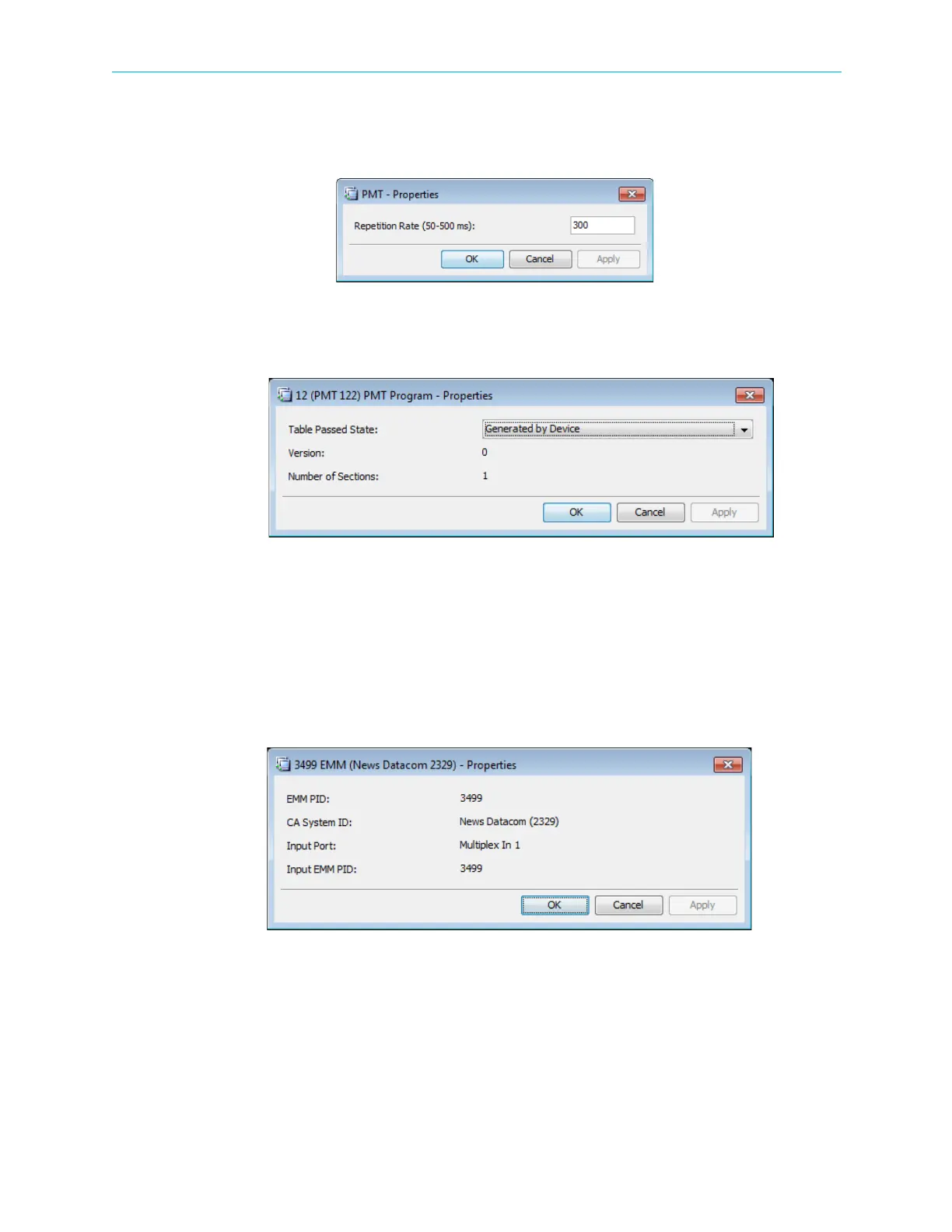

The PMT Properties dialog enables setting the repetition rate for all PMTs and the specific
PMT properties dialog enables setting the table source and displays the table version and
number of sections.
The CAT
The Conditional Access Table (CAT) consists of one (or more) Entitlement Management
Message (EMM). Select the CAT icon and click the Properties button to display the common
properties for the all EMMs in the CAT.
The EMM
Select a specific EMM icon in the CAT and click the Properties button to display the following
information for the EMM: output and input PID, input port name and CA system ID.
