The SDT

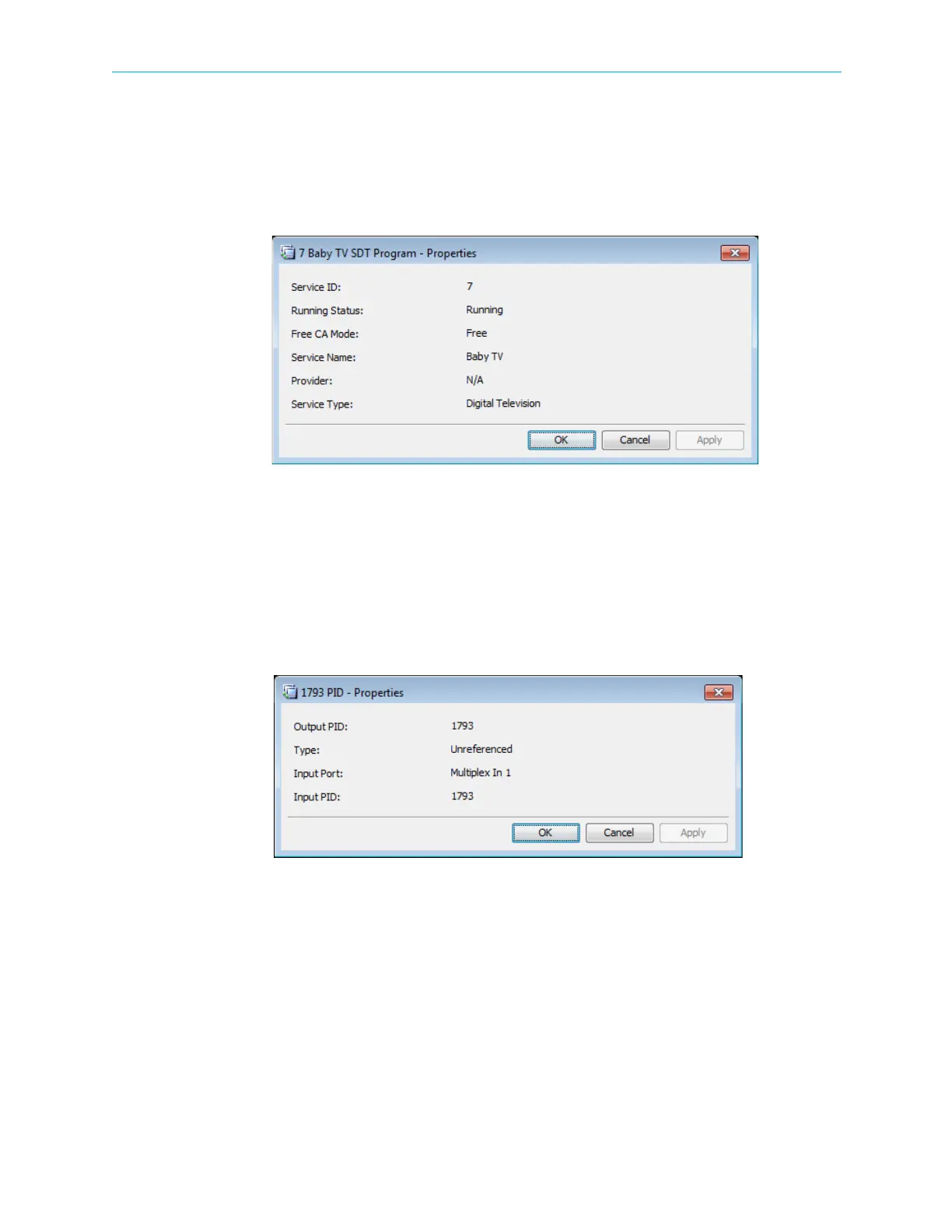

The Service Description Table (SDT) consists of a group of services with specific parameters.
Each specific SDT Properties dialog provides the service provider information, the service ID,
service type and service name, the service operational status and the service CA operational
mode.
4.5.4.6 Output Unreferenced PID Properties
The Output Unreferenced PID properties dialog provides basic information on an
unreferenced stream provided to the multiplex output.
To display the Output Unreferenced PID properties:
1. Select the required Unreferenced PID icon in the Output Multiplex & Decoding box on the
Device Explorer tab.
2. Click Properties on the EMS toolbar.
The information provided by the Output Unreferenced PID Properties dialog includes the
following:
■ Output PID – Displays the PID number of the multiplex output stream.
■ Type – Displays the type of the PID (Unreferenced).
■ Input Port – Displays the name of the input physical port which receives the stream.
■ Input PID – Displays the PID number of the related input stream.
