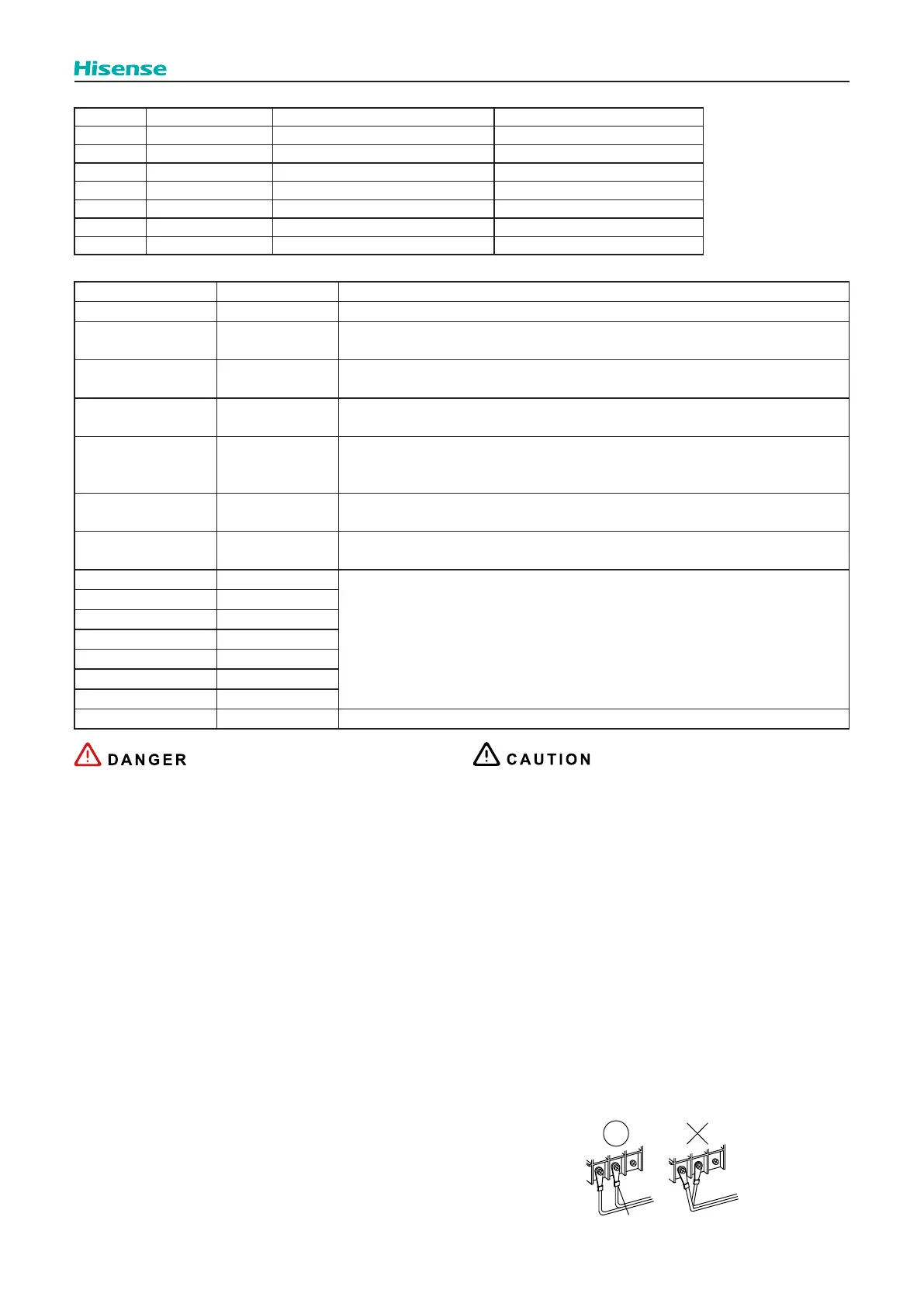

121
Installation
Auxiliary sensor - Setting before shipment
Mark Description Default settings Available auxiliary sensor codes
A1 Auxsensor 1 a - 01 (Tow3) a - 00 ~ 14
A2 Auxsensor 2 a - 03 (Tsolar) a - 00 ~ 14
A3 Auxsensor 3 a - 02 (Tswp) a - 00 ~ 14
A4 Auxsensor 4 a - 05 (Tow2) a - 00 ~ 14
A5 Auxsensor 5 a - 14 (TDHW1) a - 00 ~ 14
A6 Auxsensor 6 a - 07 (Room_amb1) a - 00 ~ 14
A7 Auxsensor 7 a - 08 (Room_amb2) a - 00 ~ 14
Auxiliary sensor codes - All Auxiliary sensor codes descriptions:
Auxiliary sensor codes Mark Description
a - 00 No Function -
a - 01 Tow3
This sensor is used in case to combine Unit with hydraulic separator to detect Hot water
temperature detection of hydraulic separator .
a - 02 Tswp
In case of combining Unit with swimming pool, this sensor is used to detect swimming pool
water temperature.
a - 03 Tsolar
In case of combining Unit with solar panels, this sensor is used to Detect Hot water
temperature of solar panels .
a - 04 Ta_ao
Optional Second Outdoor Ambient Temperature sensor accessory can be connected to
the Auxiliary sensor in case that the heat pump is located in a non-suitable position for this
measurement.
a - 05 Tow2
to detect outlet water temperature of Water Cycle 2.
a - 06 duty
Used to detect duty signal when duty signal control is Enabled, the duty signal type can be
0-10V, 0-5V or 10-20mA.
a - 07 Room_amb1
Rooms function on master controller is selected as room thermostat, and in this scenario,
a - 08 Room_amb2
a - 09 Room_amb3
a - 10 Room_amb4
a - 11 Room_amb5
a - 12 Room_amb6
a - 13 Room_amb7
a - 14 TDHW1 The sensor of TDHW1 is auxiliary sensor to detect tank water temperature of lower side.
Do not connect or adjust any wiring or connections unless
the main power switch is OFF.
When using more than one power source, check and
ensure that all of them are turned OFF before operating
the indoor unit.
Avoid wiring installation in contact with the refrigerant
pipes, water pipes, edges of plates and electrical
components inside the unit to prevent damage, which may
cause electric shock or short circuit.
After changing the input settings, output settings and auxiliary
sensor settings on the master controller, it needs to be
Use a dedicated power circuit for the indoor unit. Do not use
a power circuit shared with the outdoor unit or any other
appliance.
Make sure that all wiring and protection devices are properly
terminals of the unit, specially the protection (earth) and power
wiring, taking into account the applicable national and local
may cause electric shock.
Protect the indoor unit against the entry of small animals (like
rodents) which could damage the drain pipe and any internal
wire or any other electrical part, leading to electric shock or
short-circuit.
Keep a distance between each wiring terminal and attach
Tape or sleeve
To Next Page
