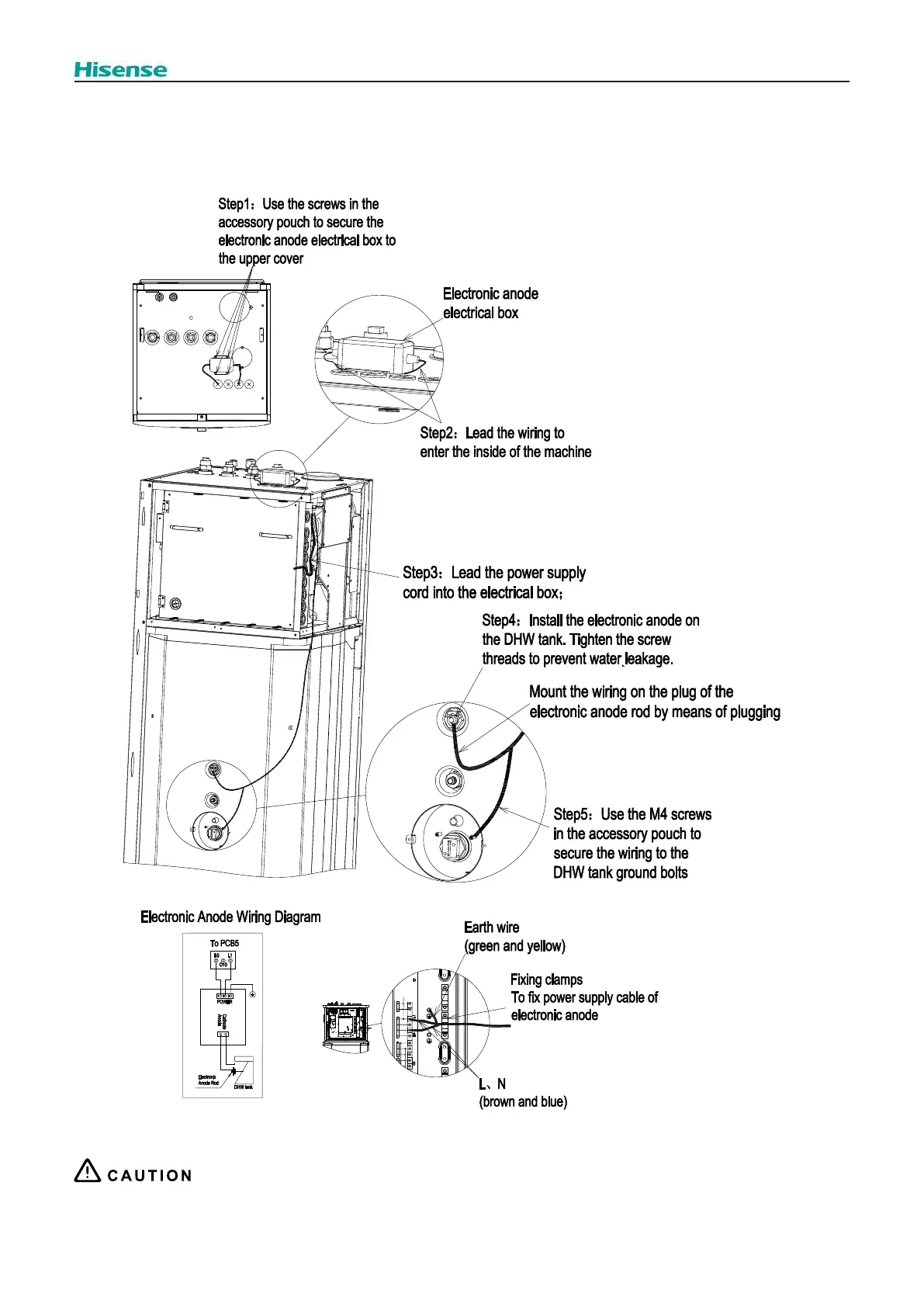

2.3.12 Installing the Electronic Anode (Optional Part)
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
2) Remove the lower front panel as explained in “2.3.2 Removing the lower front panel”.

4) .
5) The wiring connection inside the electrical box is shown as below:

Before the wiring enters the electrical box, it is necessary to bundle the return trap;

After the wiring enters the electrical box, x the wiring rmly with cord clamps.
1
2
1
3
3
1
5
7
1
3
5
