General dimensions

6. General dimensions

6.1 Hi-Therma Split/Integra Outdoor Unit

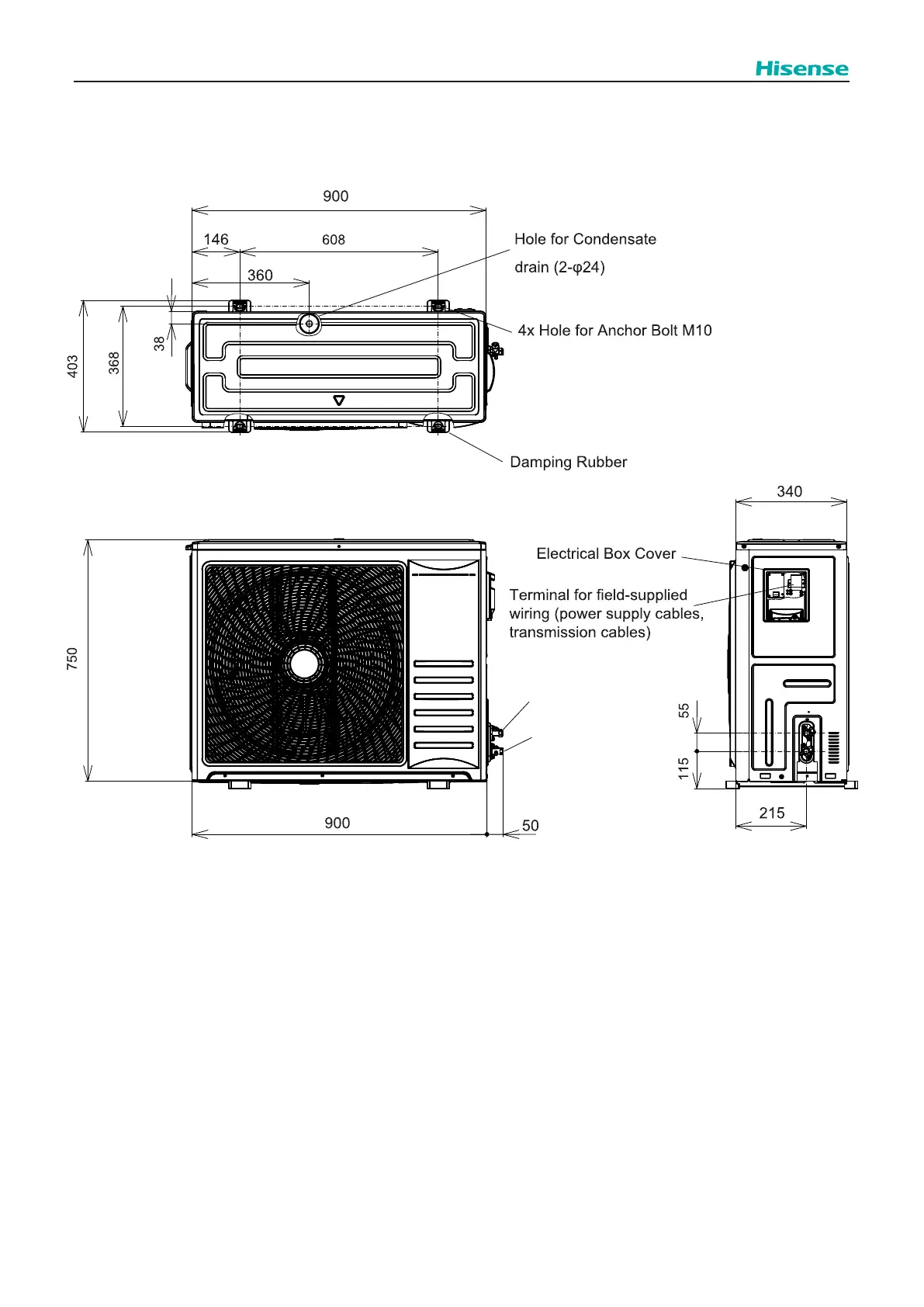

6.1.1 Dimensional Data of Hi-Therma Split/Integra Outdoor Unit

Liquid Stop Valve

Gas Stop Valve
