435
Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)

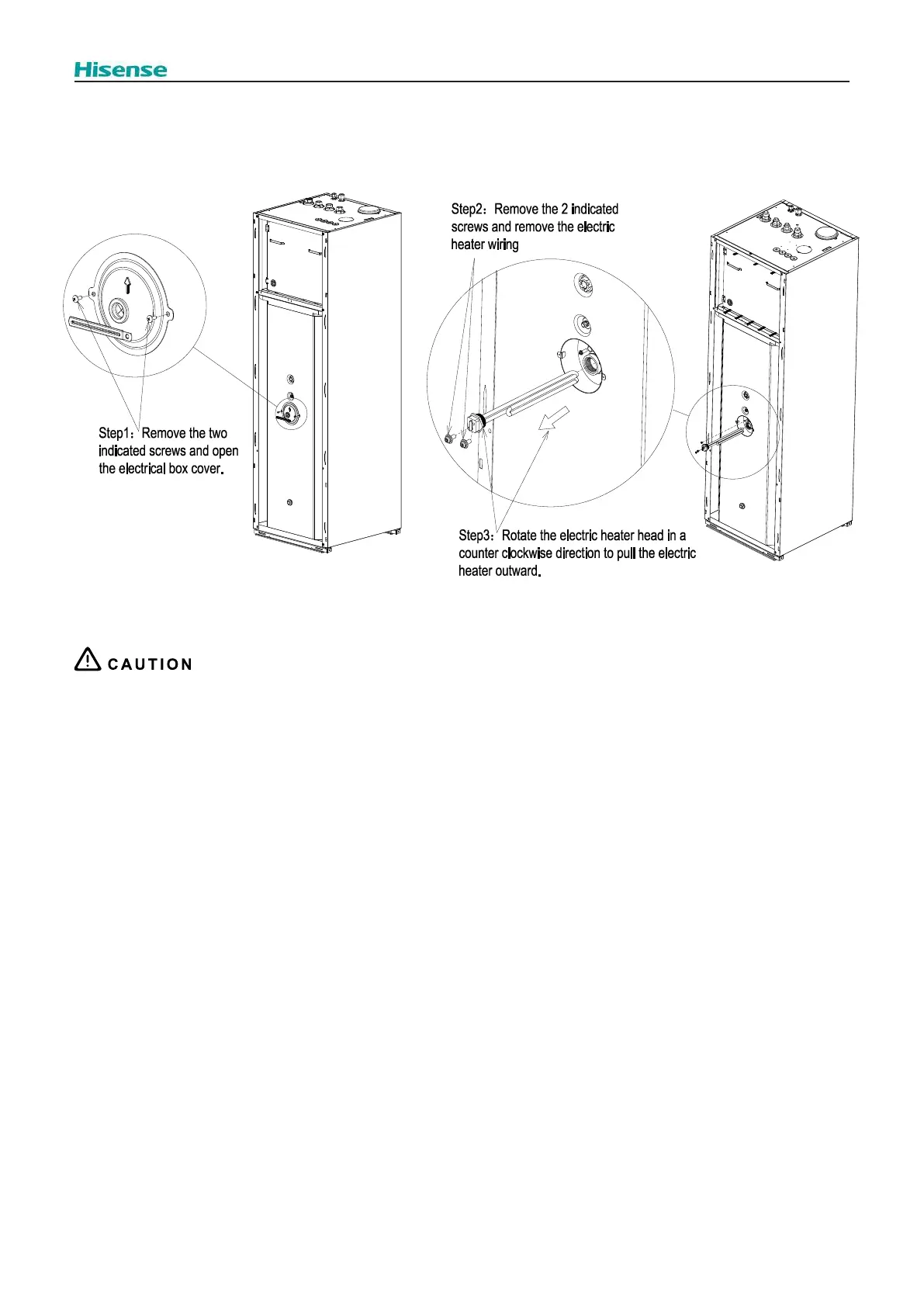

2.3.10 Removing the DHW Electric Heater
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
2) Remove the lower front panel as explained in “2.3.2 Removing the lower front panel”.
The above operations shall be conducted only when the power is completely cut o.
The DHW electric heater comes with a rubber gasket, when the new electric heater is reassembled, it needs to be tightened rmly, and
ensure to conduct air tightness test after installation
4) To reassemble a new DHW electric heater, proceed in a reverse way than disassembling.
To Next Page
