Hi-Therma Split system - Indoor unit (AHM-044/060/080HCDSAA)

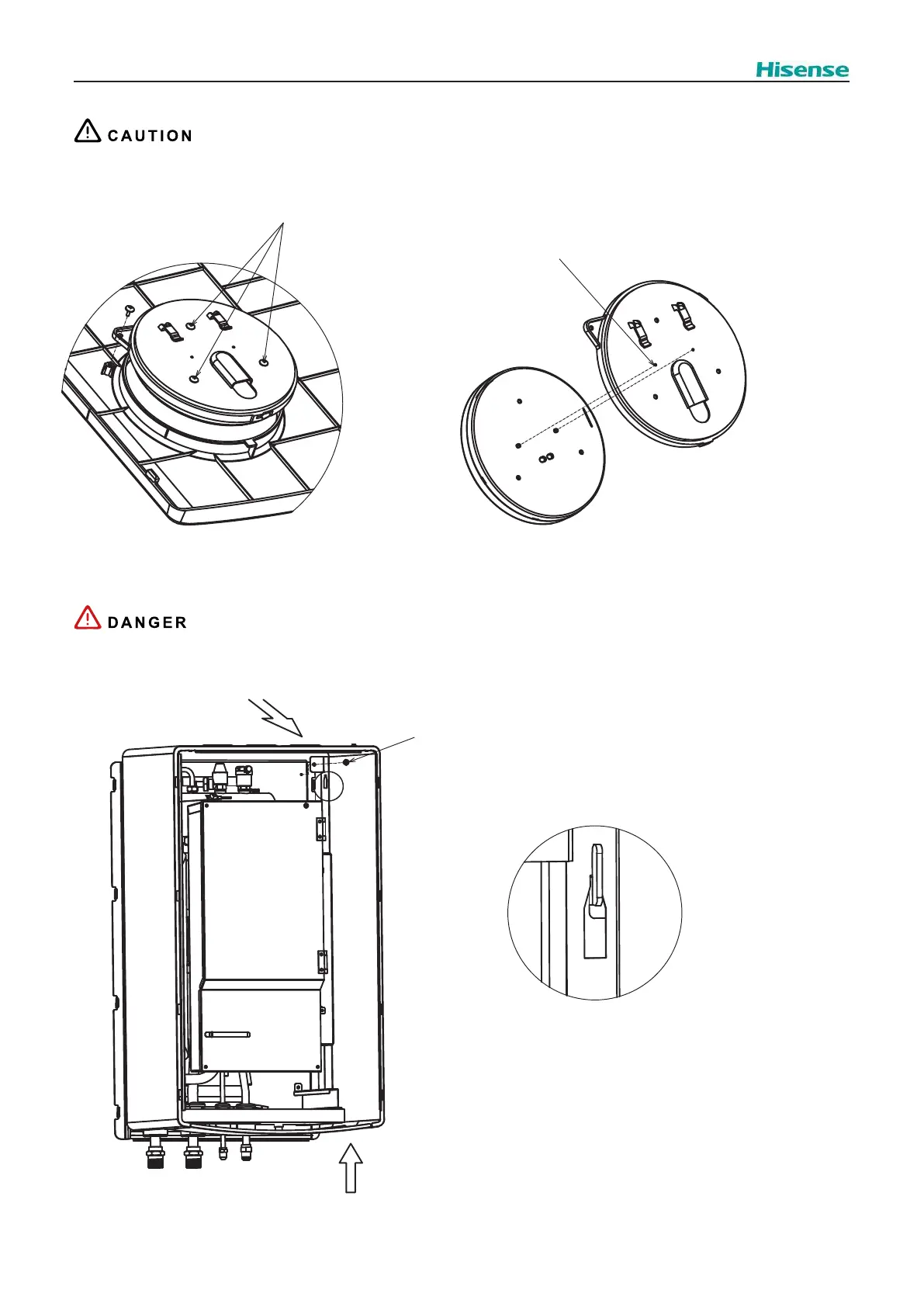

2.2.4 Disassembling the Master Controller
2.2.5 Removing the side panel
Remove the front panel following “2.2.1 Removing the front panel”.
Please pay attention to protect the LCD display of the Master Controller when removing.
Please prevent the Master Controller from falling and damaging during operation.
Remove the three screws to separate the controller from the mounting plate.
Note: Insert the positioning column into the hole on the back of
the controller at the position indicated during installation.
The side panel is heavy, please operate it with at least two people to avoid falling and hurting .
Step 3: Push the side panel assembly forward in the direction shown by the arrow
to release the side panel from the hook, and then remove the side panel assembly.
Step 1: Remove the two screws (one on the left and one on the right).
Step 4: Reverse operation to install the upper side panel assembly
Step 2: Push up the side panel assembly in the direction shown by the arrow.
B
B
The Snap
