422
Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)

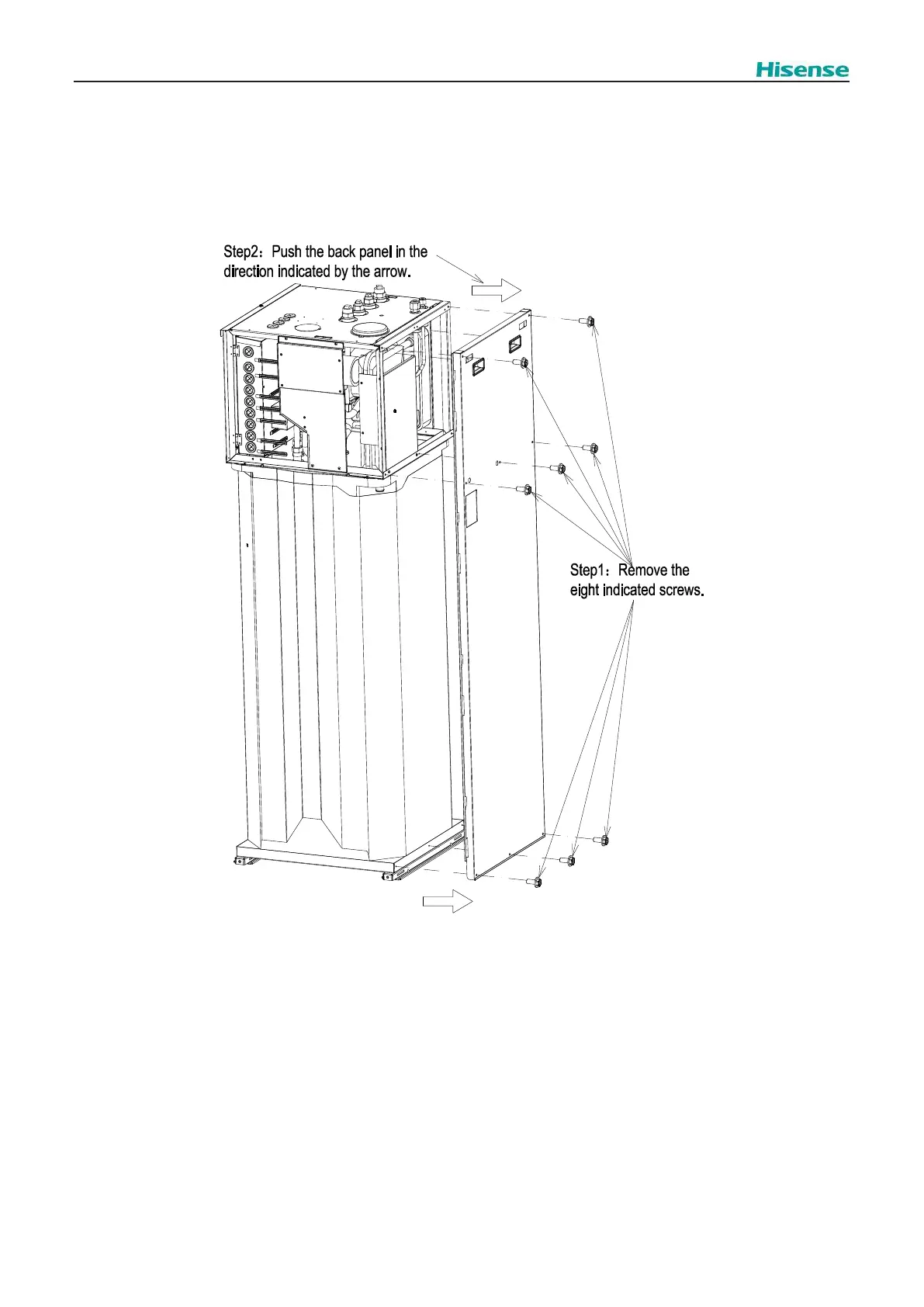

2.3.4 Removing the back panel
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
2) Remove the lower front panel as explained in “2.3.2 Removing the lower front panel”.
3) Remove the side panels as explained in “2.3.3 Removing the side panels”.

5) To reassemble a new back panel, proceed in a reverse way than disassembling.
