Hisense AHM-080HCDSAA - Removing the Plate Heat Exchanger Assembly

412
Hi-Therma Split system - Indoor unit (AHM-044/060/080HCDSAA)
2.2.6.5
Removing the plate heat exchanger assembly
To remove the plate heat exchanger assembly, rst remove the electrical box, drain pan and deector. Refer to the following
steps.
2.2.6.5.1 Removing the electrical box assembly
2.2.6.5.2 Removing the drain pan


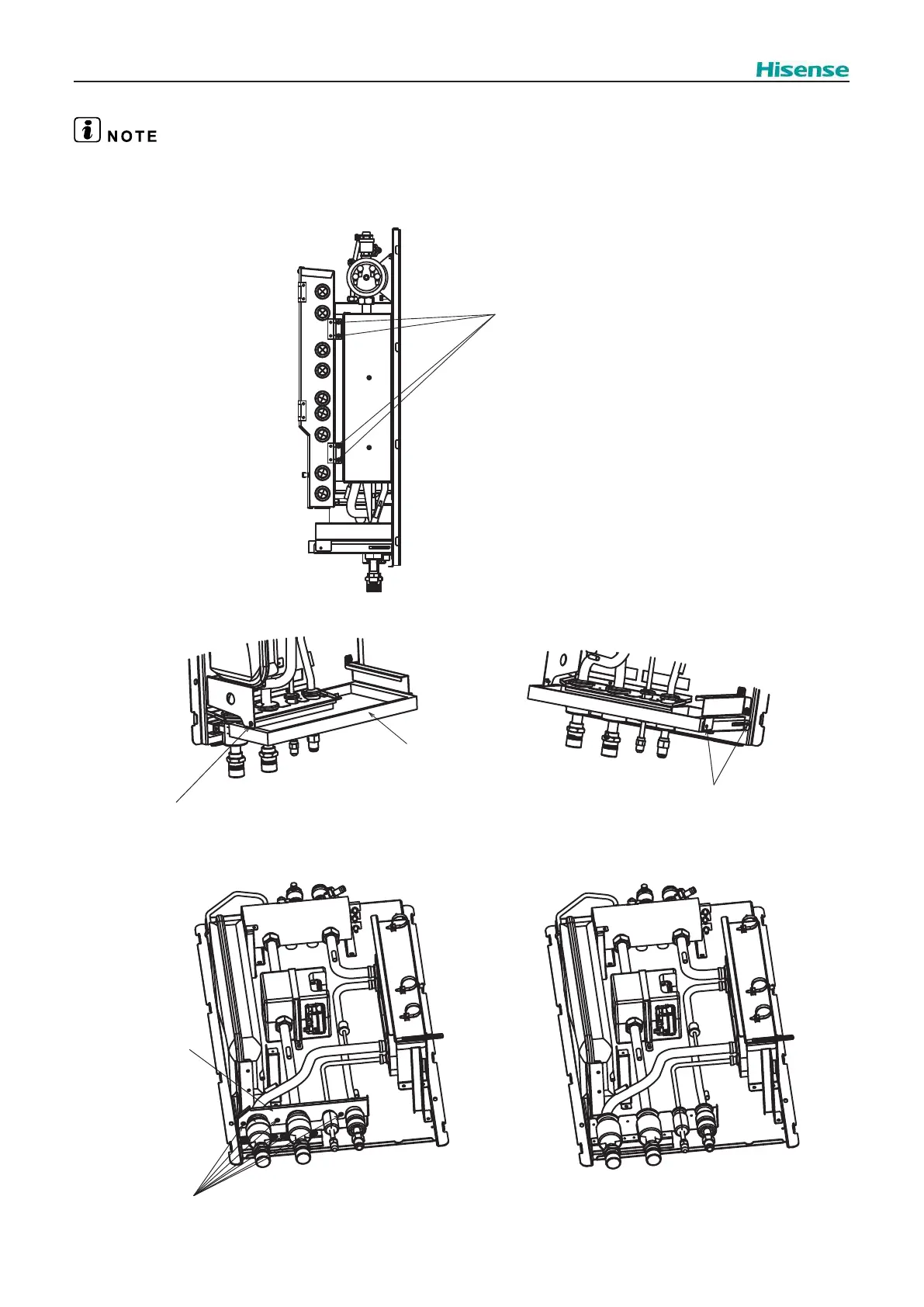

Remove the four screws to separate the
electrical box assembly from the machine.
Step 1: Remove the screw on the left side of the drain pan.
Step 2: Remove the drain pan
after removing the two screws.
Drain pan
Remove the 7 screws to remove the deflector.
Deflector
