426
Hi-Therma Integra system - Indoor unit (AHS-044/060/080HCDSAA-23)
2.3.8 Removing the water system components
The following operations need to cut o the water system and drain the water in the machine.
Follow-up operations can be performed after completely disconnecting the power supply.
1) Remove the upper front panel as explained in “2.3.1 Removing the upper front panel”.
2) Remove the lower front panel as explained in “2.3.2 Removing the lower front panel”.
3) Remove the right side panel as explained in “2.3.3 Removing the side panel”.

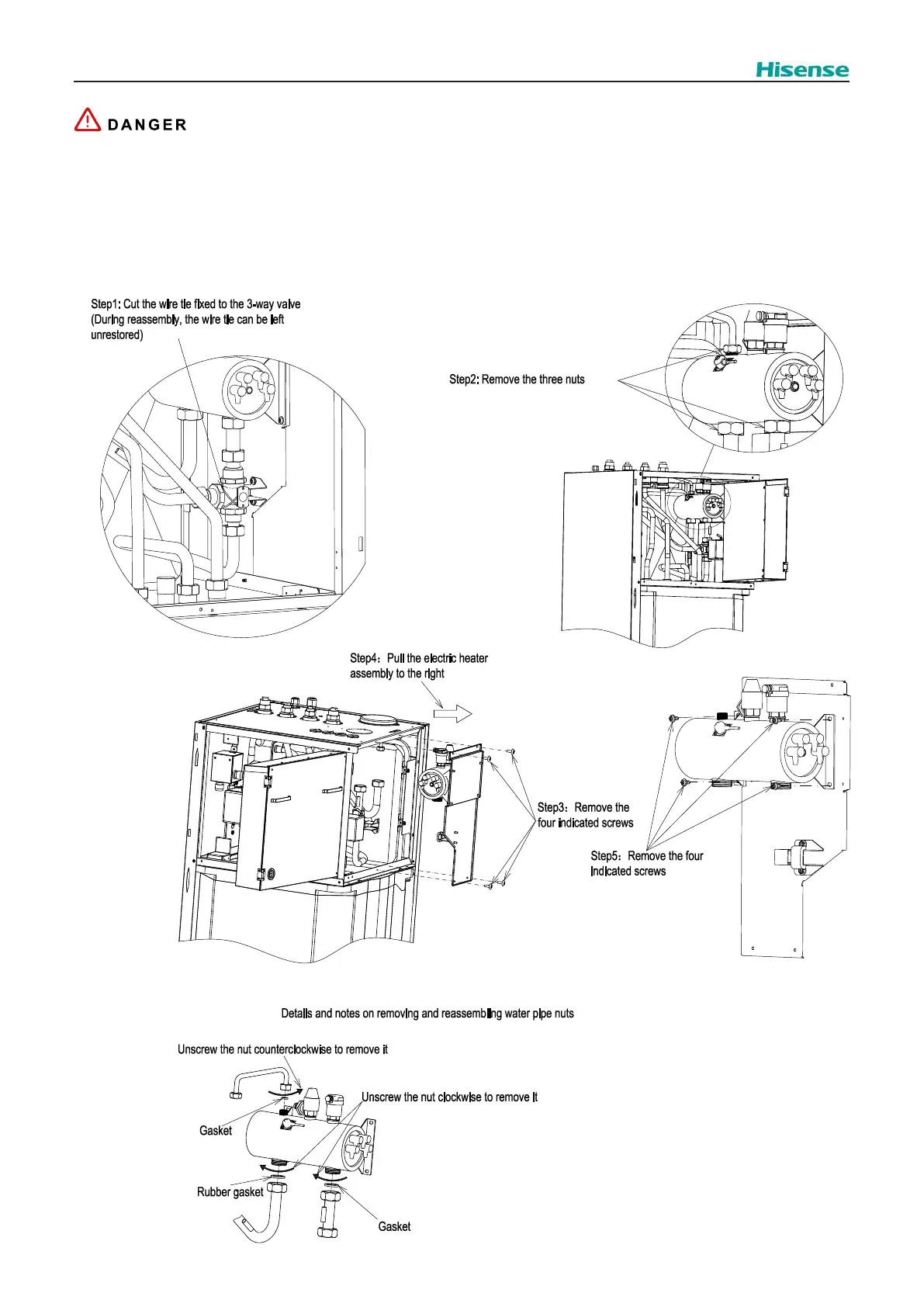

2.3.8.1
Removing the Auxiliary Electric Heater components
