Troubleshooting
1.2.2 Checking of Master Controller
1.2.2.1

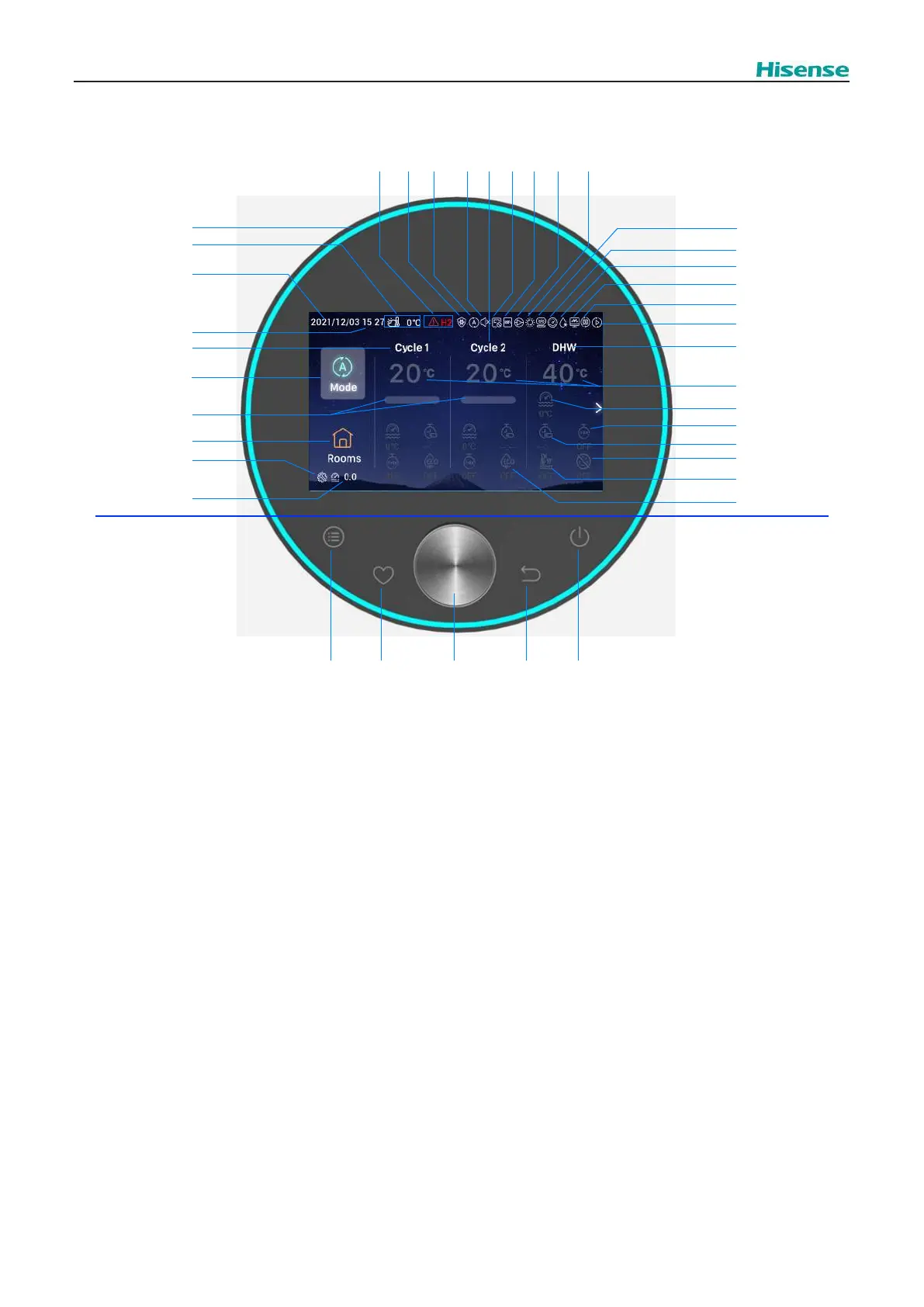

Checking of Master Controller (Hi-Therma Split)
11 12
13 14 15
1
3
4
6
8
10
22
28
21
9
24
25
26
23
27
29
35343332 31
5
16
2
7
17
18
19
20
A
B
3038 37 36
● A Touch Buttons
11 Menu: Tap to enter menu interface
12 Favourite: Quick access to frequently used
functions
14 Return: Short press to return to the previous step, and long press
for more than 3 seconds to dismiss the alarm
15 On/o󰀨: Tap to switch ON or OFF
13 Mechanical Rotary Knob: Rotate to adjust value or to scroll the pages, pressing indicates conrmation
11+12 Installation and Service Mode Combination Button: Press and hold for more than 3 seconds to enter/exit Installation
and Service Mode
11+14 Initialization Combination Button: Press and hold for more than 3 seconds to perform initialization
● B Display
1 Light Band
2 Outdoor Ambient Temperature
Display
3 Date Display
4 Time Display
5 Cycle1 Setting Display
6 Mode
7 Water Temperature Attainment
Rate Display
8 Rooms
9 Installation Service Mode Display
10 Water Pressure Display
16 ECO
17 DHW Boost
18 DHW-Anti Legionella
19 Simple Timer
20 Weekly Timer
21 Current Water Temperature
22 Water Temperature Setting
23 DHW Setting Display
24 Test Run Operation Display
25 Auto Operation Display(reserved)
26 Energy Monitoring Operation Display
27 Defrost Operation Display
28 Compressor Operation
Display(reserved)
29 Boiler Operation Display
30 Solar Operation Display
31 Water Pump Operation Display
32 Water Module Electric Heater
Operation Display
33 Centralized Control Operation
Display
34 Cycle2 Setting Display
35 Quiet Operation Display
36 Operation Mode Display
37 Anti Freezing Operation Display
38 Alarm and Alarm Code
