Installation
8.4.5 BEFORE OPERATION
approximately 3 months, it is recommended to check the
system by your service contractor.
for a long period of time: If the main switch is not turned
energised during compressor stopping.
Make sure that the unit is not covered with snow or ice. If
covered, remove it by using hot water (approximately 50°C).
If the water temperature is higher than 50°C, it will cause
damage to plastic parts.
The accessories shown in the table are supplied inside the
unit.
If any of these accessories are not packed with the unit or any
damage to the unit is detected, please contact your dealer.

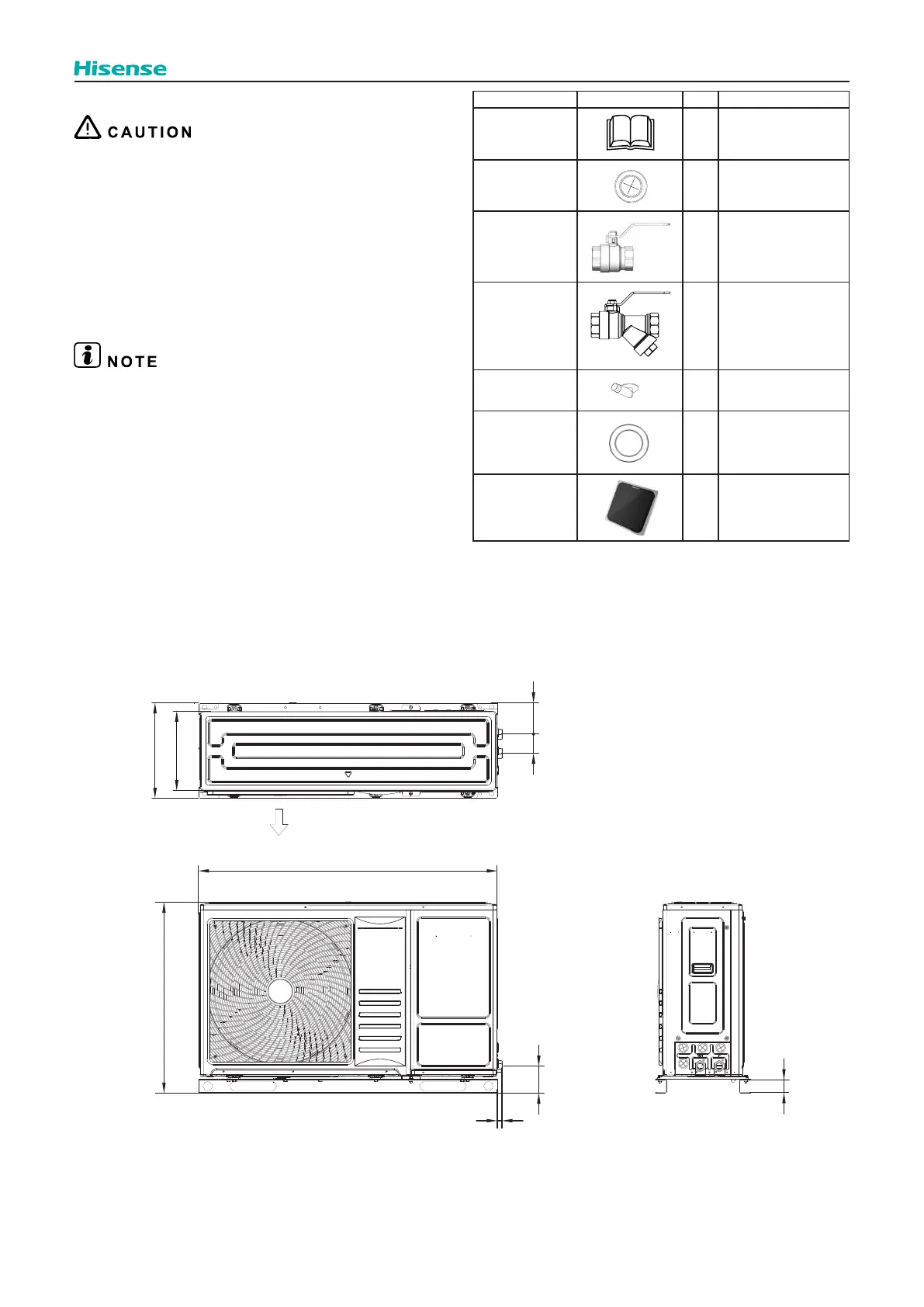

Accessory Image Qty. Remarks
Instruction
manual
1
Basic instructions for
the installation of the
device.
Rubber ring 4
For electrical wiring
connection.
(G1”)
1
Connect at the water
outlet , for connecting/
disconnecting water
pipe.
1
Connect at the water
inlet, for connecting/
disconnecting water
impurities in water.
Drain nozzle 2
For water discharge
when necessary.
Gasket 6
Six gaskets for each
connections between
valves (inlet/outlet)
Controller 1
Used for device
operation.
8.4.6 GENERAL DIMENSIONS
115
20
815
1270
Air Outlet
134
82
408
340
68
(Units: mm)
