147
Installation

unit
cable
cable
cable
t c
.
8.3.9.3
ELECTRICAL WIRING CONNECTION FOR
OUTDOOR UNITS

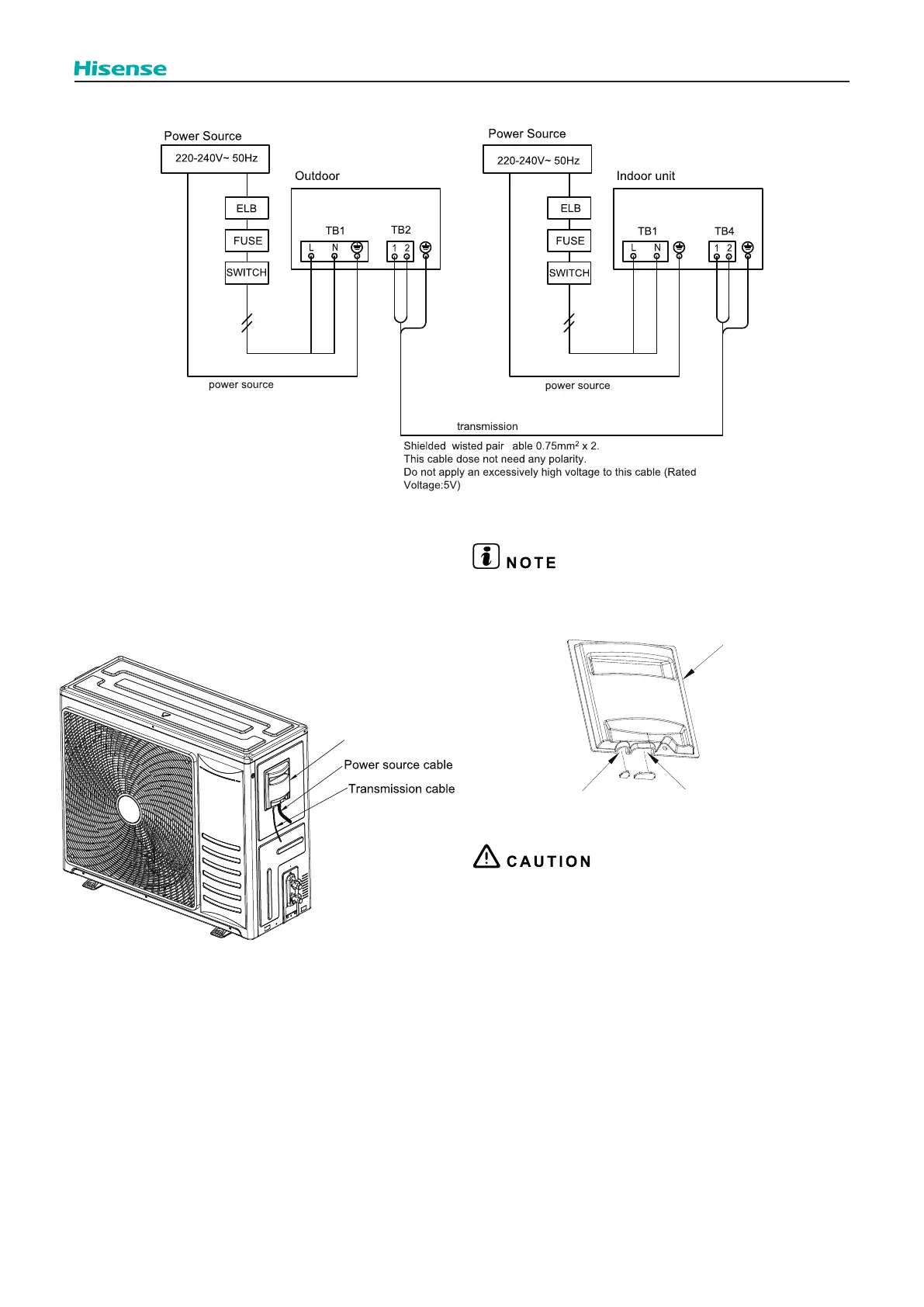

The electrical wiring connection for the outdoor unit is shown

External view:
Wiring cover
Knock out the holes of the wiring cover before wiring
connection.
Wiring
cover
hole for
transmission
cable
hole for
power source cable
The wiring cover must be installed back after the wiring

the water or dust may enter, and cause an electric shock.
