Hisense AHM-080HCDSAA - Structure of Hi-Therma Monobloc

51
General dimensions

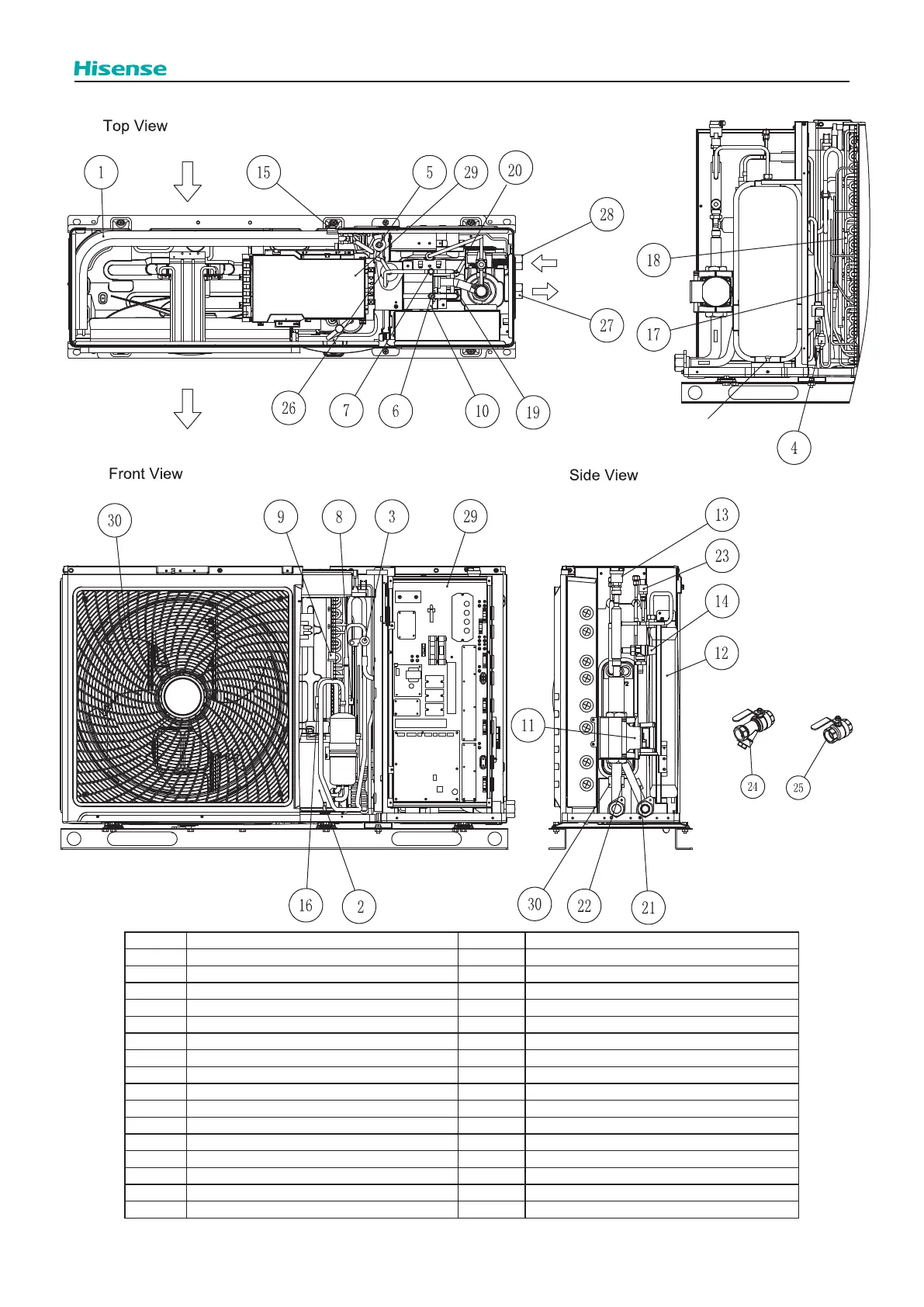

6.4.2 Structure of Hi-Therma Monobloc
Number Part name Number Part name
1 Heat Exchanger 17 Heat Exchanger Liquid Pipe Thermistor(Te)
2 Compressor 18 Heat Exchanger Liquid Pipe Thermistor2(Te2)
3 4-way Reversing Valve and Coil 19 Gas Refrigerant Pipe Thermistor(Tg)
4 Strainer 20 Liquid Refrigerant Pipe Thermistor(TL)
5 Electronic Expansion Valve and Coil 21 Inlet Water Thermistor(Tiw)
6 Refrigerant Check Joint(Gas) 22 Outlet Water Thermistor(Tow)
7 Refrigerant Check Joint(Liquid) 23 Water Pressure Sensor(Pw)
8 Low Pressure Switch(PSL) 24 Shut-o󰀨 Valve with Filter
9 High Pressure Switch(PSH) 25 Shut-o󰀨 Valve
10 Plate Heat Exchanger 26 Accumulator
11 Water Pump 27 Water Outlet
12 Expansion Vessel 28 Water Inlet
13 Air Purge Valve 29 Electrical Box
14 Safety Valve 30 Propeller Fan
15 Outdoor Unit Ambient Thermistor(Ta) 31 Outlet HP Water Thermistor(TowHP)
16 Compressor Discharge Gas Thermistor(Td)
Rear View
Charge port
