General dimensions

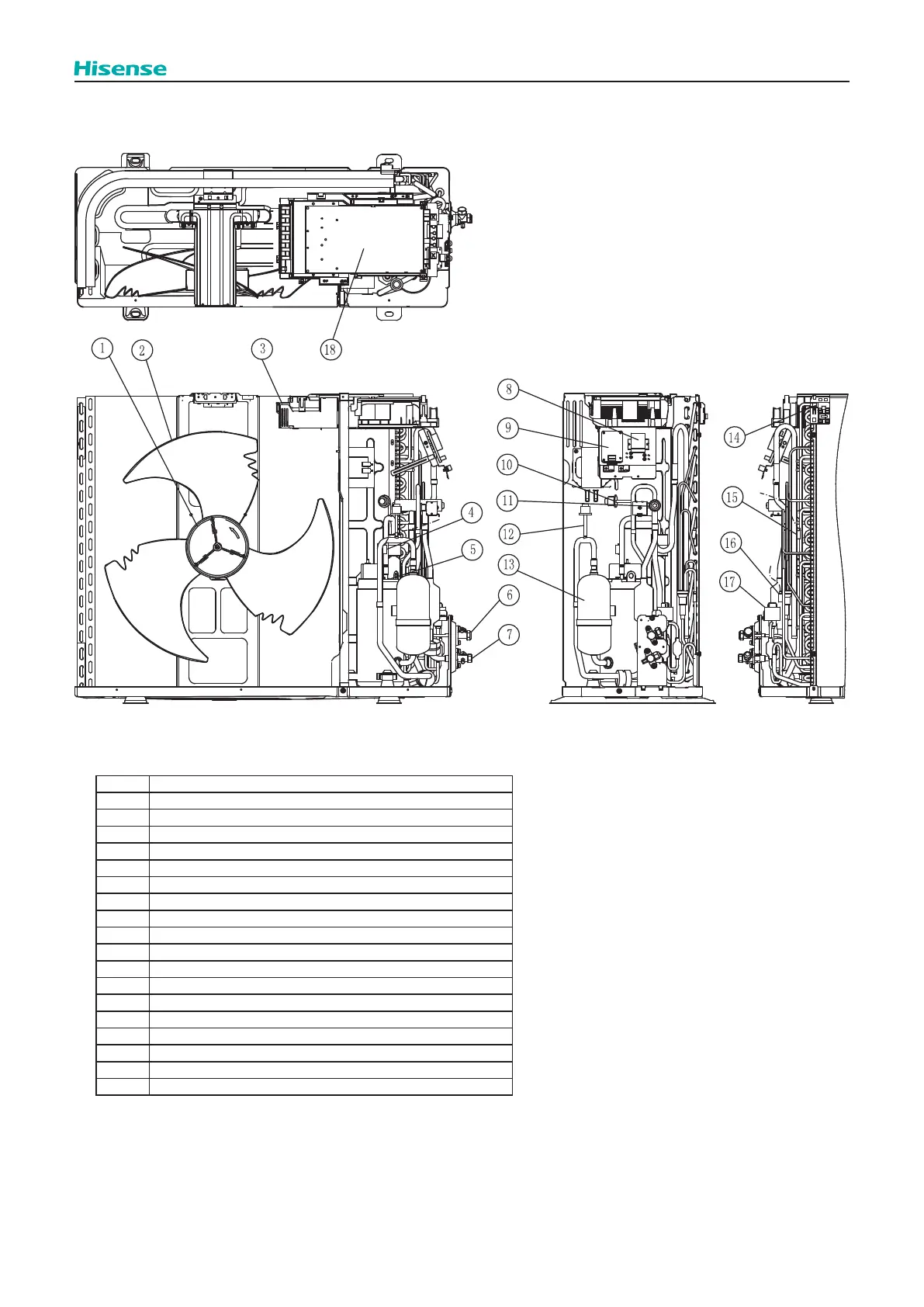

6.1.2 Structure of Hi-Therma Split/Integra Outdoor Unit
Mark Part Name
1 Fan Motor
2 Propeller Fan
3 Electrical Box
4 Compressor Discharge Gas Thermistor(Td)
5 Compressor
6 Gas Stop Valve
7 Liquid Stop Valve
8 Terminal Board for Power Supply(TB1)
9 Terminal Board for Transmission(TB2)
10 High Pressure Switch(PSH)
11 4-way Reversing Valve and Coil
12 Low Pressure Switch(PSL)
13 Accumulator
14 Outdoor Unit Ambient Thermistor(Ta)
15 Heat Exchanger Liquid Pipe Thermistor 2(Te2)
16 Heat Exchanger Liquid Pipe Thermistor(Te)
17 Electronic Expansion Valve and Coil
18 PCB
